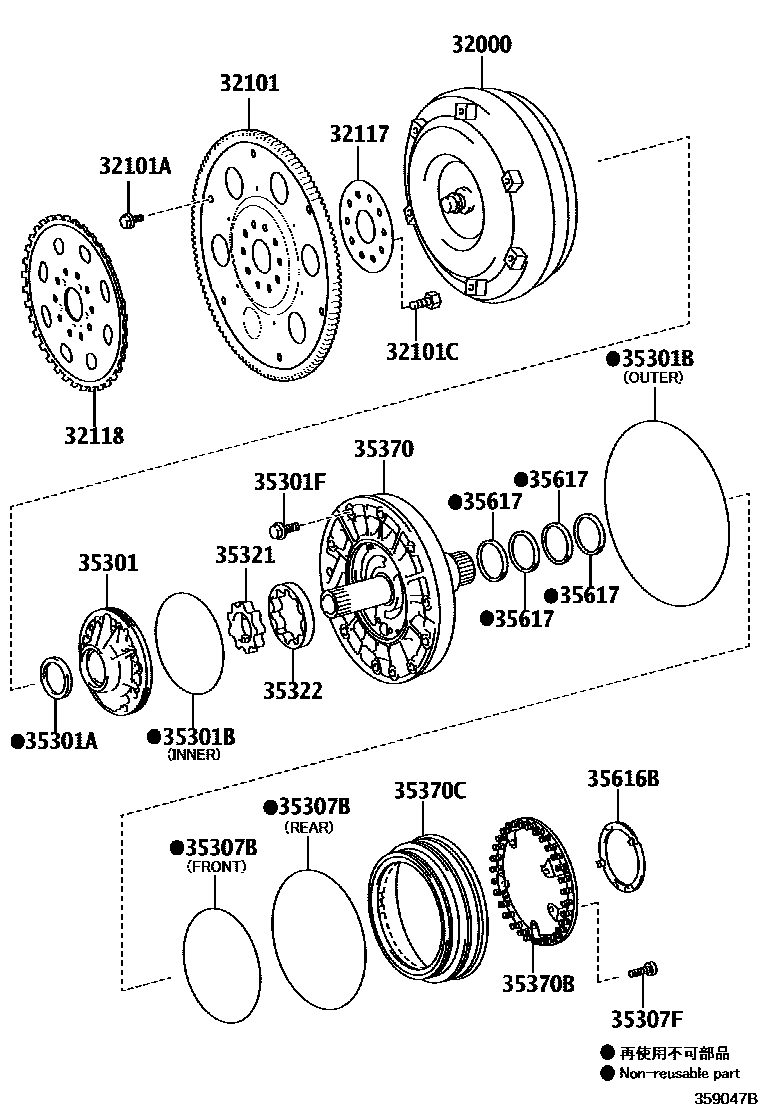

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*10-1.5PX12.8-9.8,SILVER WHITE
*10-1.5PX12.8-9.7,BLACK
*10-1.5PX14.8-6.2,BLACK
*10-1.5PX14.8-6.5,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX23-16,(J)
*10-1.25PX23-16,(L)
32117SPACER, DRIVE PLATE, REAR
32118ROTOR, CRANKSHAFT ANGLE SENSOR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
INNER
OUTER
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX50-30
35307BRING, SHAFT SNAP (FOR STATOR SHAFT)
REAR
FRONT
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=11.66,MARK 0
T=11.66,MARK 1
T=11.66,MARK 2
T=11.66,MARK 3
T=11.66,MARK 4
T=11.66,MARK 5
T=11.66,MARK 6
35322GEAR, FRONT OIL PUMP DRIVEN
T=11.66,MARK 0
T=11.66,MARK 1
T=11.66,MARK 2
T=11.66,MARK 3
T=11.66,MARK 4
T=11.66,MARK 5
T=11.66,MARK 6
35370SHAFT ASSY, STATOR
35370BSPRING SUB-ASSY, STATOR SHAFT
35370CPISTON, STATOR SHAFT
35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
35617RING, CLUTCH DRUM OIL SEAL
19 parts on this diagram · 1 diagram in section
