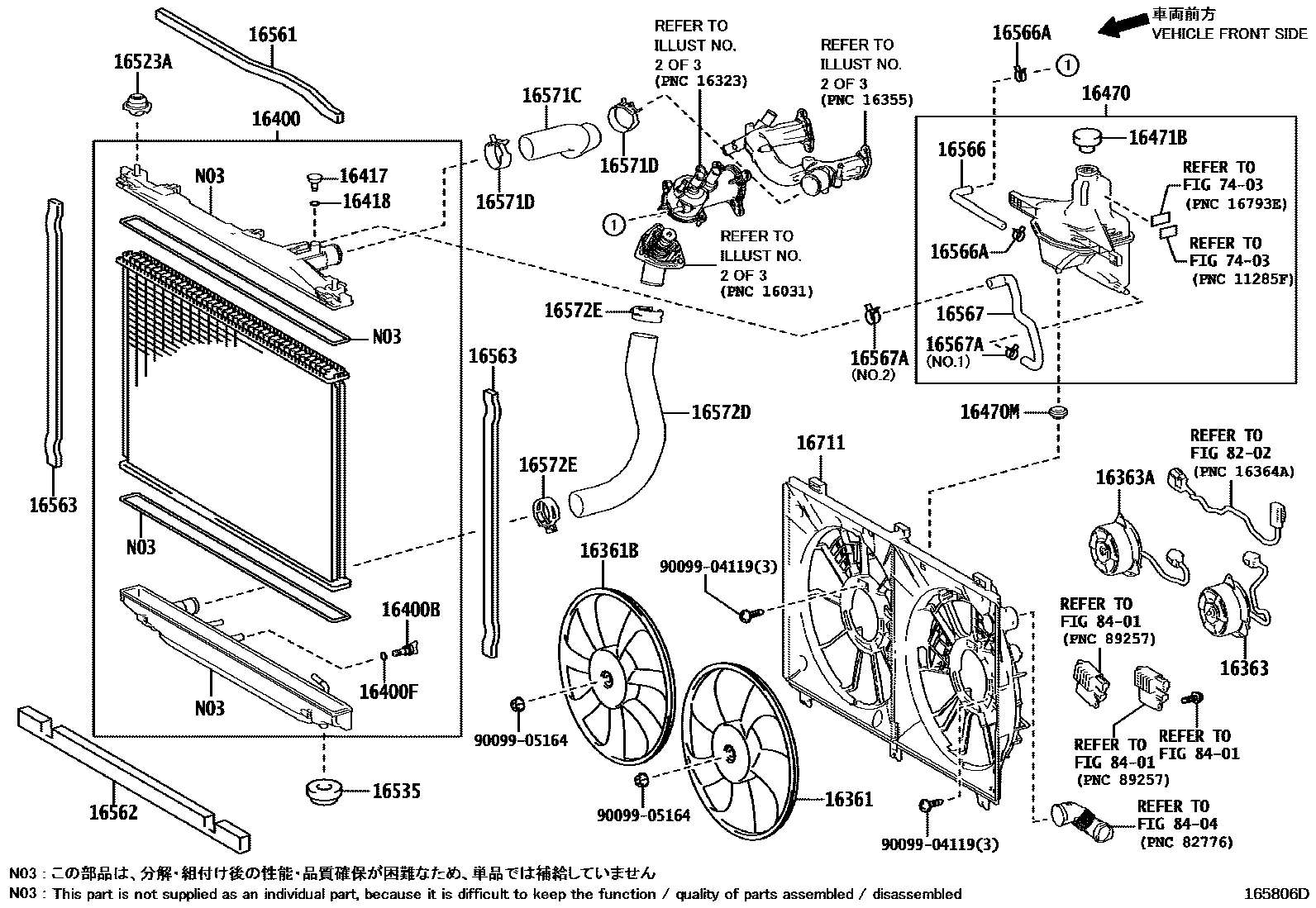

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1ENGINE SIDE PIPING 0003 1OIL COOLER SIDE PIPING

16361FAN

main16361-38110i2URGSE..USC10¥3,220201409-201902

16361BFAN, NO.2

main16361-38120i2URGSE..USC10¥4,330201409-201902

16363MOTOR, COOLING FAN

main16363-38160i2URGSE..USC10¥17,600201409-201902

16363AMOTOR, COOLING FAN, NO.2

main16363-38160i2URGSE..USC10¥17,600201409-201902

16400RADIATOR ASSY

main16400-38270i2URGSE..USC10¥47,900201409-201410

sub16400-38271¥43,500

main16400-38271i2URGSE..USC10¥43,500201410-201902

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i2URGSE..USC10¥360201409-201902

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2URGSE..USC10¥210201409-201902

16417COCK

main16417-28530i2URGSE..USC10¥500201409-201902

16418PACKING

main16418-20290i2URGSE..USC10¥350201409-201410

main16418-20291i2URGSE..USC10¥210201410-201902

16470TANK ASSY, RADIATOR RESERVE

main16470-38090i2URGSE..USC10¥11,700201409-201410

sub16470-38091¥11,700

main16470-38091i2URGSE..USC10¥11,700201410-201602

sub16470-38092¥7,400

main16470-38092i2URGSE..USC10¥7,400201603-201902

16470MGROMMET

main90480-18010i2URGSE..USC10¥130201409-201902

16471BCAP, RESERVE TANK

main16475-28140i2URGSE..USC10¥1,200201603-201902

main16475-37010i2URGSE..USC10¥1,200201409-201410

sub16475-28140¥1,200

main16475-37011i2URGSE..USC10¥1,200201410-201602

sub16475-28140¥1,200

16523ACUSHION, RADIATOR SUPPORT

main16523-38010i2URGSE..USC10¥590201409-201902

16535SUPPORT, RADIATOR, LOWER

main90480-40021i2URGSE..USC10¥220201409-201603

main90480-40022i2URGSE..USC10¥580201604-201902

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-38030i2URGSE..USC10¥160201409-201902

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-38010i2URGSE..USC10¥750201409-201902

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-38010i2URGSE..USC10¥200201409-201902

16566HOSE, RESERVE TANK OUTLET

main16566-38060i2URGSE..USC10¥350201409-201902

16566ACLIP(FOR RESERVE TANK OUTLET)

main96137-41501i2URGSE..USC10¥120201409-201902

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-38060i2URGSE..USC10¥540201409-201902

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main96136-42101i2URGSE..USC10¥240201409-201902

NO.2:REFER ILLUST.

main96137-41701i2URGSE..USC10¥160201409-201902

NO.1:REFER ILLUST.

16571CHOSE, RADIATOR, NO.1

main16571-38110i2URGSE..USC10¥1,080201409-201902

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002i2URGSE..USC10¥300201409-201902

16572DHOSE, RADIATOR, NO.2

main16572-38160i2URGSE..USC10¥1,150201409-201902

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002i2URGSE..USC10¥300201409-201902

16711SHROUD, FAN

main16711-38160i2URGSE..USC10¥5,900201409-201902

7403

8202

8401

8404

9009904119

main90099-04119

9009905164

main90099-05164¥0
