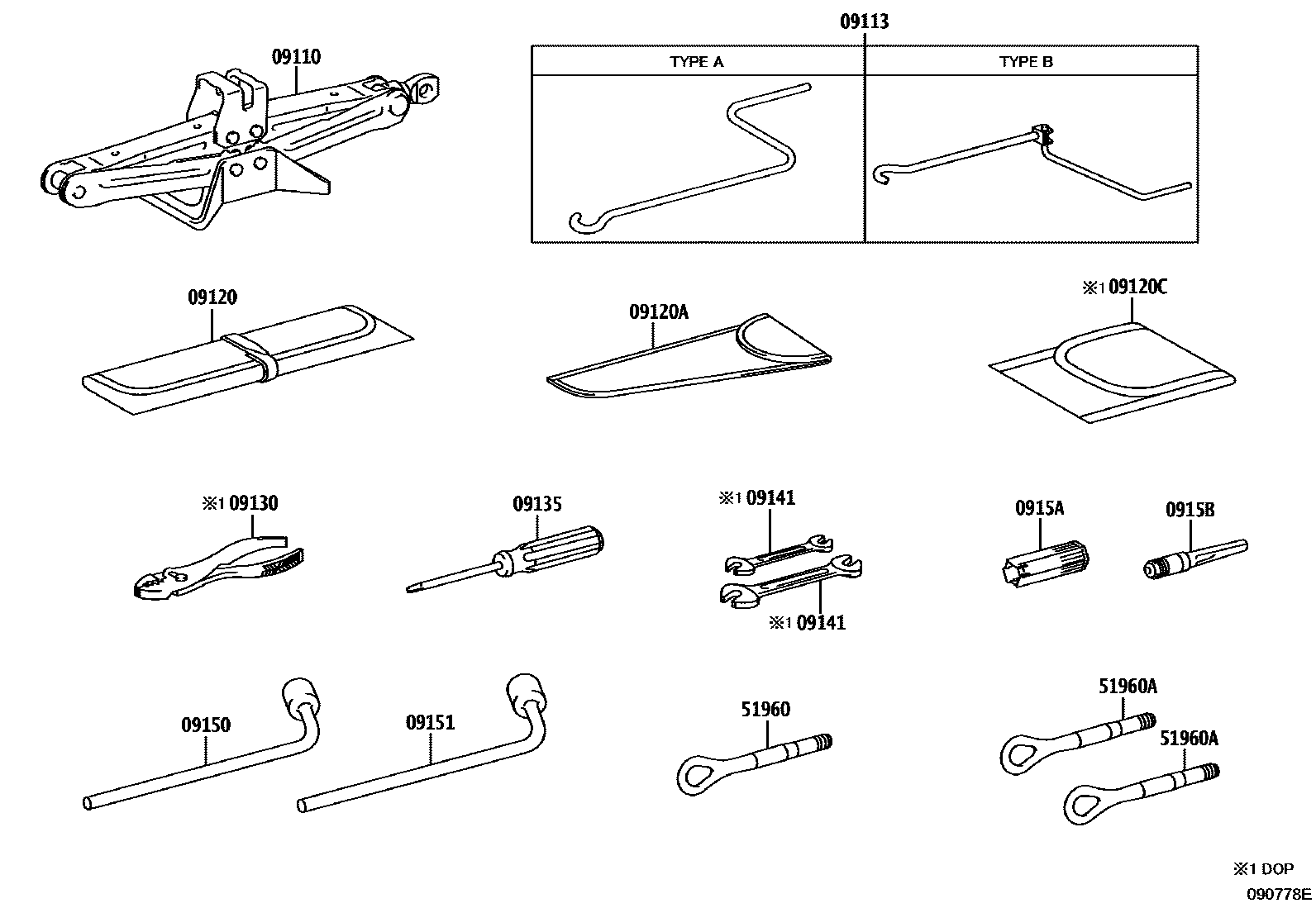

STANDARD TOOL

0001 1 0002 1

09110JACK ASSY

main09111-30160iUSC10201409-201601

sub09111-30181

main09111-30180iUSC10201602-201902

sub09111-30181

09113HANDLE, JACK

main09113-13040iUSC10201409-201902

TYPE A:REFER ILLUST.

09120BAG, TOOL

main09120-12011

main09120-24020

main09120-28020

main09120-35180

09120ACASE, TOOL

09120CBAG,TOOL, NO.2

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main99915-10700iUSC10201409-201902

09141SPANNER

main09141-60010

main09141-60020

09150WRENCH, HUB NUT BOX

main09150-26010iUSC10201409-201902

09151WRENCH, HUB BOLT BOX

main09151-53010iUSC10202301

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iUSC10202301

0915BPIN, WHEEL GUIDE

main0915B-53010iUSC10202301

51960HOOK ASSY, FRONT

main51961-53010iUSC10201409-201902

51960AHOOK ASSY, REAR

main51961-53010iUSC10201409-201902

14 parts on this diagram · 2 diagrams in section
