WIRING & CLAMP

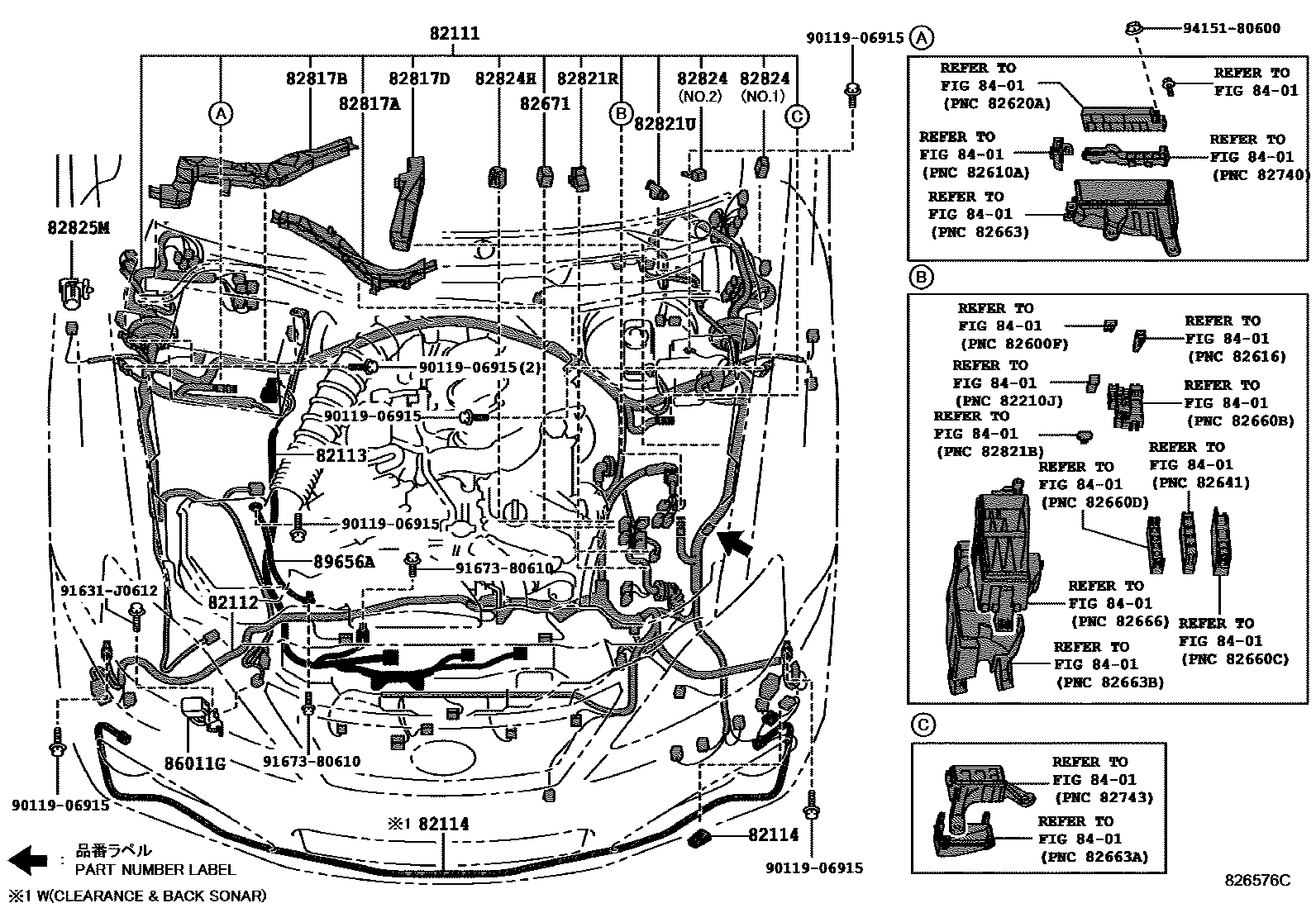

82111WIRE, ENGINE ROOM MAIN
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LVELING) KOREA SPEC
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
KOREA SPEC&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
KOREA SPEC&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)&HEAD LAMP CLEANER-WITH
KOREA SPEC&HEADLAMP-DISCHAGE WITH(AUTO LVELING) KOREA SPEC&HEAD LAMP CLEANER-WITH
HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&HEAD LAMP CLEANER-WITH
KOREA SPEC&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&HEAD LAMP CLEANER-WITH
HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&HEAD LAMP CLEANER-WITH
KOREA SPEC&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&HEAD LAMP CLEANER-WITH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)&HEAD LAMP CLEANER-WITH
HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&HEAD LAMP CLEANER-WITH
HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)&HEAD LAMP CLEANER-WITH
82112WIRE, ENGINE ROOM, NO.2
82113WIRE, ENGINE ROOM, NO.3
82114WIRE, ENGINE ROOM, NO.4
82671BLOCK, JUNCTION
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82817DPROTECTOR, WIRING HARNESS, NO.5
82821RCOVER, CONNECTOR
82821UCOVER, CONNECTOR
82824HCONNECTOR, WIRING HARNESS
82825MCONNECTOR, WIRING HARNESS
8401
86011GCONDENSER
89656AWIRE, POWER STEERING EARTH
9011906915
main90119-06915
91631J0612
main91631-J0612
9167380610
main91673-80610
9415180600
main94151-80600
20 parts on this diagram · 10 diagrams in section
