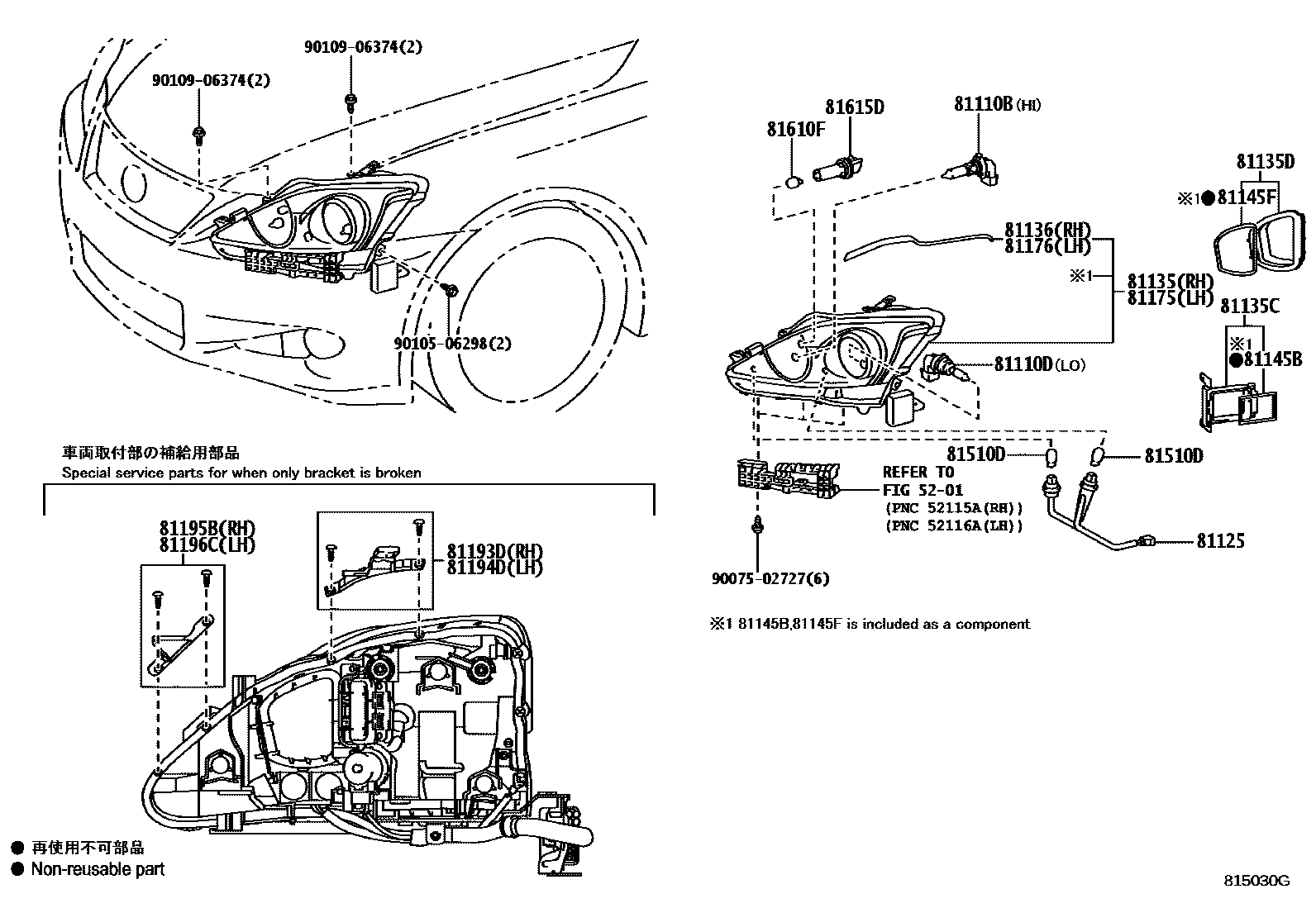

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1DISCHARGE HEADLAMP 0003 1KOREA SPEC 0004 1DISCHARGE HEADLAMP

5201

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iGSE2#200904-201507

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iGSE2#200904

12V 55W,HALOGEN

81125CORD, HEADLAMP

main81126-53240iGSE2#200904

81135UNIT ASSY, HEADLAMP, RH

main81130-53430iGSE2#200904

81135CCOVER, HEADLAMP BACK, NO.1

main81135-53270iGSE2#200904

81135DCOVER, HEADLAMP BACK, NO.2

main81136-53240iGSE2#200904

RH

main81176-53240iGSE2#200904

LH

81136PROTECTOR, HEADLAMP, NO.1 RH

main81117-53240iGSE2#200904-201507

81145BGASKET, HEADLAMP COVER, NO.1

main81132-53240iGSE2#200904

81145FGASKET, HEADLAMP COVER, NO.2

main81134-53240iGSE2#200904

81175UNIT ASSY, HEADLAMP, LH

main81170-53430iGSE2#200904

81176PROTECTOR, HEADLAMP, NO.1 LH

main81157-53240iGSE2#200904-201507

81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH

main81193-53020iGSE2#200904-201507

81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH

main81194-53010iGSE2#200904

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-53010iGSE2#200904

81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH

main81196-53020iGSE2#200904

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iGSE2#200904-201507

12V 21W,AMBER

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iGSE2#200904-201507

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077iGSE2#200904

9007502727

main90075-02727

9010506298

main90105-06298

9010906374

main90109-06374

22 parts on this diagram · 4 diagrams in section
