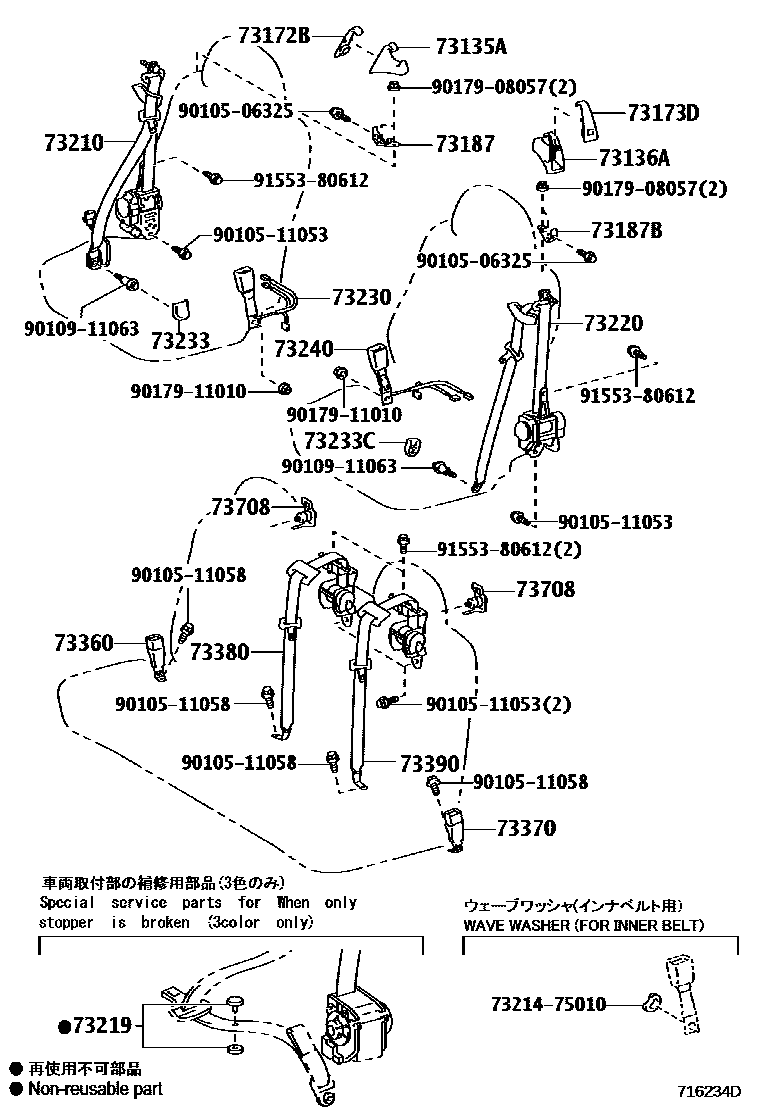

SEAT BELT & CHILD RESTRAINT SEAT

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-53040-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main73135-53040-C0iGSE20..6F200904-201208

BLACK,TRIM2#

main73135-53040-C0iGSE2#..6FC200904-201507

BLACK,TRIM2#,3#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73136-53030-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main73136-53030-C0iGSE2#..6FC200904-201507

BLACK,TRIM2#,3#

main73136-53030-C0iGSE20..6F200904-201208

BLACK,TRIM2#

73172BCAP, FRONT SHOULDER BELT HANGER, RH

main73172-53020iGSE2#200908-201507

main73172-53020-A0iGSE2#200904-200908

MELLOW WHITE,TRIM0#

sub73172-53020

main73172-53020-C0iGSE2#200904-200908

BLACK,TRIM2#

sub73172-53020

73173DCAP, FRONT SHOULDER BELT HANGER, LH

main73173-53010iGSE2#200908-201507

main73173-53010-A0iGSE2#200904-200908

MELLOW WHITE,TRIM0#

sub73173-53010

main73173-53010-C0iGSE2#200904-200908

BLACK,TRIM2#

sub73173-53010

73187GUIDE, FRONT SEAT SHOULDER BELT

main73187-53010iGSE2#200908-201507

main73187-53010-A0iGSE2#200904-200908

MELLOW WHITE,TRIM0#

sub73187-53010

main73187-53010-C0iGSE2#200904-200908

BLACK,TRIM2#

sub73187-53010

73187BGUIDE, FRONT SEAT SHOULDER BELT

main73187-53020iGSE2#200908-201507

main73187-53020-A0iGSE2#200904-200908

MELLOW WHITE,TRIM0#

sub73187-53020

main73187-53020-C0iGSE2#200904-200908

BLACK,TRIM2#

sub73187-53020

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-53280-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main73210-53280-C0iGSE2#200904-201507

BLACK,TRIM1#,2#,3#,4#

73219STOPPER, TONGUE PLATE

main73219-02010iGSE2#200904

BLACK

main73219-02020iGSE2#200904

GRAY

main73219-02030iGSE2#200904

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-53210-A0iGSE2#200904-201208

MELLOW WHITE,TRIM0#

main73220-53210-C0iGSE2#200904-201208

BLACK,TRIM1#,2#,3#,4#

main73220-53380-A0iGSE2#201208-201507

MELLOW WHITE,TRIM0#

main73220-53380-C0iGSE2#201208-201507

BLACK,TRIM1#,2#,3#,4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-53360-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main73230-53360-C0iGSE2#200904-201507

BLACK,TRIM2#

main73230-53360-C0iGSE2#200904-201507

POWER WINDOW-WITH(WOOD BASE) & PASSENGER=AUTO UP/DOWN,BLACK,TRIM2#,3#

73233COVER, LAP BELT OUTER ANCHOR

main73233-53030-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main73233-53030-C0iGSE2#200904-201507

BLACK,TRIM1#,2#,3#,4#

73233CCOVER, LAP BELT OUTER ANCHOR, LH

main73233-52010-A5iGSE2#200904-201507

MELLOW WHITE,TRIM0#

sub73233-60020

sub73233-0C010

main73233-52010-C0iGSE2#200904-201507

BLACK,TRIM1#,2#,3#,4#

sub73233-60020

sub73233-0C010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-53370-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main73230-53370-C0iGSE2#200904-201507

BLACK,TRIM2#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73380-53040-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main73380-53040-C0iGSE2#200904-201507

BLACK,TRIM1#,2#,3#,4#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73480-53030-A0iGSE2#200904-201507

MELLOW WHITE,TRIM0#

main73480-53030-C0iGSE2#200904-201507

BLACK,TRIM1#,2#,3#,4#

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73360-53110-A0iGSE2#200904-201007

MELLOW WHITE,TRIM0#

sub73360-53111

main73360-53110-C0iGSE2#200904-201007

BLACK,TRIM1#,2#,3#,4#

sub73360-53111

main73360-53111-A0iGSE2#201008-201012

MELLOW WHITE,TRIM0#

main73360-53111-C0iGSE2#201008-201012

BLACK,TRIM1#,2#,3#,4#

main73360-53112-A0iGSE2#201012-201507

MELLOW WHITE,TRIM0#

main73360-53112-C0iGSE2#201012-201507

BLACK,TRIM1#,2#,3#,4#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73370-53030-A0iGSE2#200904-201007

MELLOW WHITE,TRIM0#

sub73370-53031

main73370-53030-C0iGSE2#200904-201007

BLACK,TRIM1#,2#,3#,4#

sub73370-53031

main73370-53031-A0iGSE2#201008-201012

MELLOW WHITE,TRIM0#

main73370-53031-C0iGSE2#201008-201012

BLACK,TRIM1#,2#,3#,4#

main73370-53032-A0iGSE2#201012-201507

MELLOW WHITE,TRIM0#

main73370-53032-C0iGSE2#201012-201507

BLACK,TRIM1#,2#,3#,4#

73708BRACKET SET, TETHER ANCHOR

main73708-53030iGSE2#200904

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010506325

main90105-06325

9010511053

main90105-11053

9010511058

main90105-11058

9010911063

main90109-11063

9017908057

main90179-08057

9017911010

main90179-11010

9155380612

main91553-80612

26 parts on this diagram · 1 diagram in section
