PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

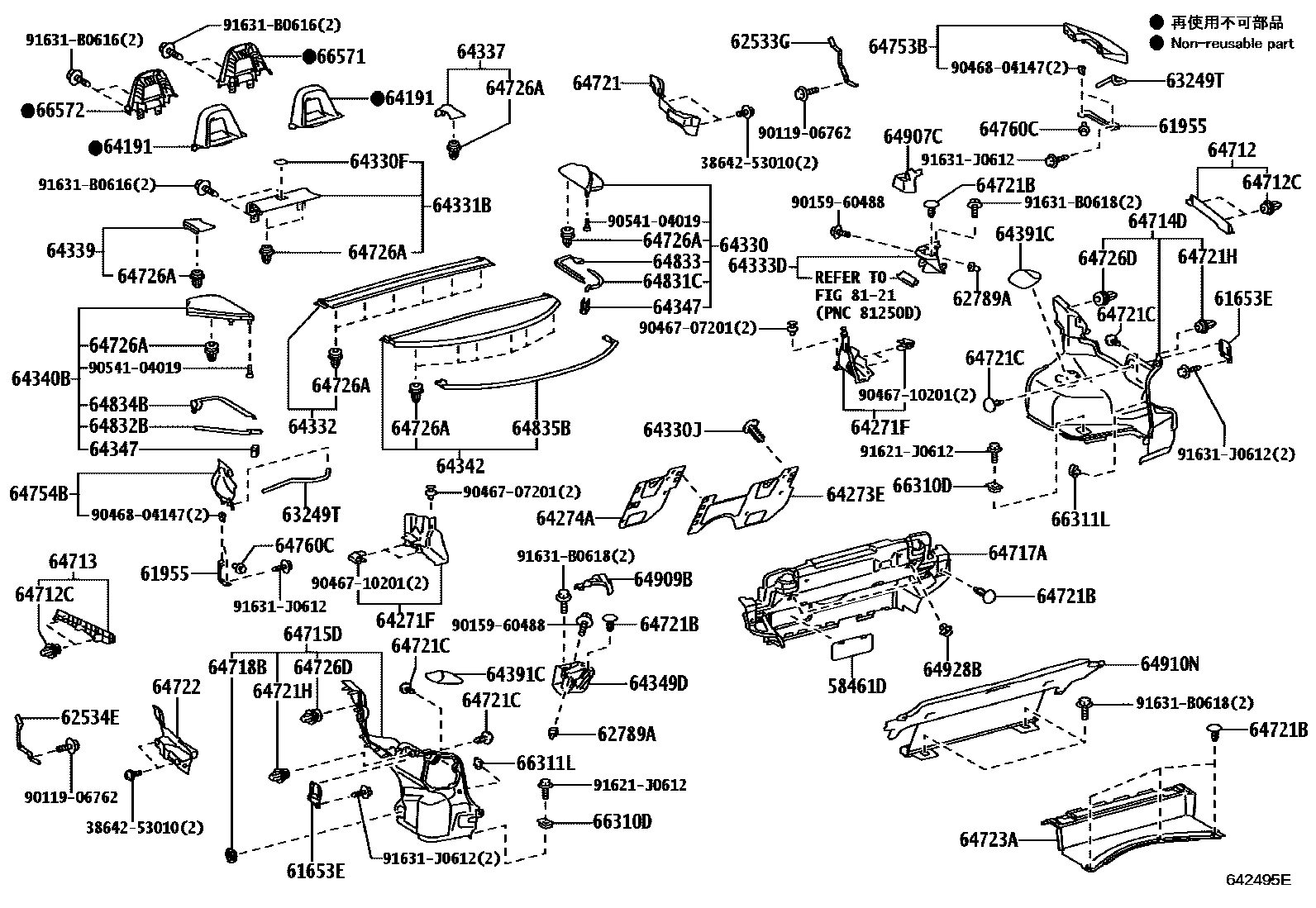

Parts diagram
58461DCOVER, JUNCTION BLOCK SERVICE
main58461-53010-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
main58461-53010-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
61653EBRACKET, DECK SIDE TRIM
main61653-53010i200904
RH
main61654-53010i200904
LH
61955BRACKET, SIDE TRIM, UPPER NO.1
main61955-53010i200904
RH
main61956-53010i200904
LH
62533GBRACKET, QUARTER TRIM, RH
main62533-53020i200904
62534EBRACKET, SIDE TRIM, NO.2
main62534-53020i200904
62789ASPACER
main67731-53020i200904
63249THOSE, REMOVABLE ROOF DRAIN
main63245-53030i200904
RH
main63249-53090i200904
LH
64191PLATE, PACKAGE TRAY REAR END
main66557-53010-A0i200904-201507
MELLOW WHITE,TRIM0#,RH
main66557-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#,RH
main66558-53010-A0i200904-201507
MELLOW WHITE,TRIM0#,LH
main66558-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#,LH
64271FTRIM, ROOM PARTITION
main64271-53010i200904
RH
main64272-53010i200904
LH
64273EPAD, ROOM PARTITION
main64273-53060i200904
64274APAD, ROOM PARTITION, NO.2
main64274-53020i200904
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-53190-A0i200904-201507
MELLOW WHITE,TRIM0#
main64330-53190-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
64330FLID SUB-ASSY, PACKAGE TRAY TRIM POCKET
main64307-53010-A0i200904-201507
MELLOW WHITE,TRIM0#
main64307-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-08186-C0i200904-201507
BLACK
sub90467-08186
64331BBOARD, PACKAGE TRAY TRIM, FRONT
main64331-53010-A0i200904-201507
MELLOW WHITE,TRIM0#
main64331-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
64332COVER, PACKAGE TRAY TRIM
main64332-53010-A0i200904-201507
MELLOW WHITE,TRIM0#
sub64332-53011
main64332-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
sub64332-53011
64333DCOVER, PACKAGE TRAY TRIM SIDE, RH
main64911-53030-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
main64911-53030-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
64337GARNISH, PACKAGE TRAY TRIM, RH
main64337-53010-A0i200904-201507
MELLOW WHITE,TRIM0#
main64337-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
64339GARNISH, PACKAGE TRAY TRIM, LH
main64339-53010-A0i200904-201507
MELLOW WHITE,TRIM0#
main64339-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
main64340-53030-A0i200904-201507
MELLOW WHITE,TRIM0#
main64340-53030-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
64342COVER, PACKAGE TRAY TRIM, UNDER
main64342-53010-A0i200904-201507
MELLOW WHITE,TRIM0#
sub64342-53011
main64342-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
sub64342-53011
64347RETAINER, PACKAGE TRAY TRIM EDGE SIDE
main64347-53010i200904-201507
64349DCOVER, PACKAGE TRAY TRIM SIDE, LH
main64921-53030-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
main64921-53030-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
64391CCAP
main48580-53010-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#,RH
main48580-53010-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#,RH
main48590-53010-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#,LH
main48590-53010-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#,LH
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
main64712-53010-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
main64712-53010-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-10167i200904
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
main64713-53010-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
main64713-53010-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
main64714-53060-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
sub64714-53061
main64714-53060-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
sub64714-53061
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
main64715-53040-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
sub64715-53041
main64715-53040-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
sub64715-53041
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-53050-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
sub64717-53051
main64717-53050-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
sub64717-53051
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
main64718-22020-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
sub64718-22020
main64718-22020-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
sub64718-22020
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-53030i200904
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
main90467-08186-A1i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
sub90467-08186
main90467-08186-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
sub90467-08186
64721CCLIP(LUGGAGE COMPARTMENT)
main90467-08186-A1i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
sub90467-08186
main90467-08186-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
sub90467-08186
64721HCLIP(LUGGAGE COMPARTMENT)
main64726-53010i201103
main90467-10167i200904-201103
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-53060i200904
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
main64723-53020-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
sub64723-53021
main64723-53020-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
sub64723-53021
64726ACLIP, LUGGAGE TRIM, REAR
main64726-53010i200904
64726DCLIP, LUGGAGE TRIM, REAR
main64726-53010i200904
64753BPLATE, REAR FLOOR FINISH SIDE, RH
main64753-53010-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
main64753-53010-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
64754BPLATE, REAR FLOOR FINISH SIDE, LH
main64754-53010-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
main64754-53010-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
64760CCLIP(FOR DECK SIDE TRIM PANEL)
main55799-28020i200904
64831CWEATHERSTRIP, BACK WINDOW GLASS, RH
main64831-53010i200904-201507
64832BWEATHERSTRIP, BACK WINDOW GLASS, LH
main64832-53010i200904-201507
64833WEATHERSTRIP, BACK WINDOW CHANNEL
main64833-53010-A0i200904-201507
MELLOW WHITE,TRIM0#
main64833-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
64834BWEATHERSTRIP, BACK WINDOW GLASS, INNER
main64834-53010-A0i200904-201507
MELLOW WHITE,TRIM0#
main64834-53010-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
64835BWEATHERSTRIP, BACK WINDOW GLASS, CENTER
main64835-53010i200904-201507
64907CSTOPPER SUB-ASSY, TONNEAU COVER, RH
main64907-53020-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
main64907-53020-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
64909BSTOPPER SUB-ASSY, TONNEAU COVER, LH
main64909-53010-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
main64909-53010-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
64910NCOVER ASSY, TONNEAU
main79993-53010-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
sub79993-53011
main79993-53010-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
sub79993-53011
64928BHOLDER, TONNEAU COVER HOOK
main64928-53010-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
main64928-53010-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
66310DHOOK ASSY, ROPE
main66310-30011-A2i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
sub66310-30011
main66310-30011-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
sub66310-30011
66311LHOOK,ROPE
main66311-30010-A0i200904-201108
IVORY,TRIM0#,1#,2#,3#,4#
main66311-30010-C0i201108-201507
BLACK,TRIM0#,1#,2#,3#,4#
66571GARNISH, ROLL OVER, RH
main62417-53040-A0i200904-201507
MELLOW WHITE,TRIM0#
main62417-53040-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
66572GARNISH, ROLL OVER, LH
main62418-53040-A0i200904-201507
MELLOW WHITE,TRIM0#
main62418-53040-C0i200904-201507
BLACK,TRIM1#,2#,3#,4#
8121
3864253010SCREW (FOR WINCH CONTROL SWITCH)
main38642-53010
9011906762
main90119-06762
9015960488
main90159-60488
9046707201
main90467-07201
9046710201
main90467-10201
9046804147
main90468-04147
9054104019
main90541-04019
91621J0612
main91621-J0612
91631B0616
main91631-B0616
91631B0618
main91631-B0618
91631J0612
main91631-J0612

67 parts on this diagram · 2 diagrams in section
