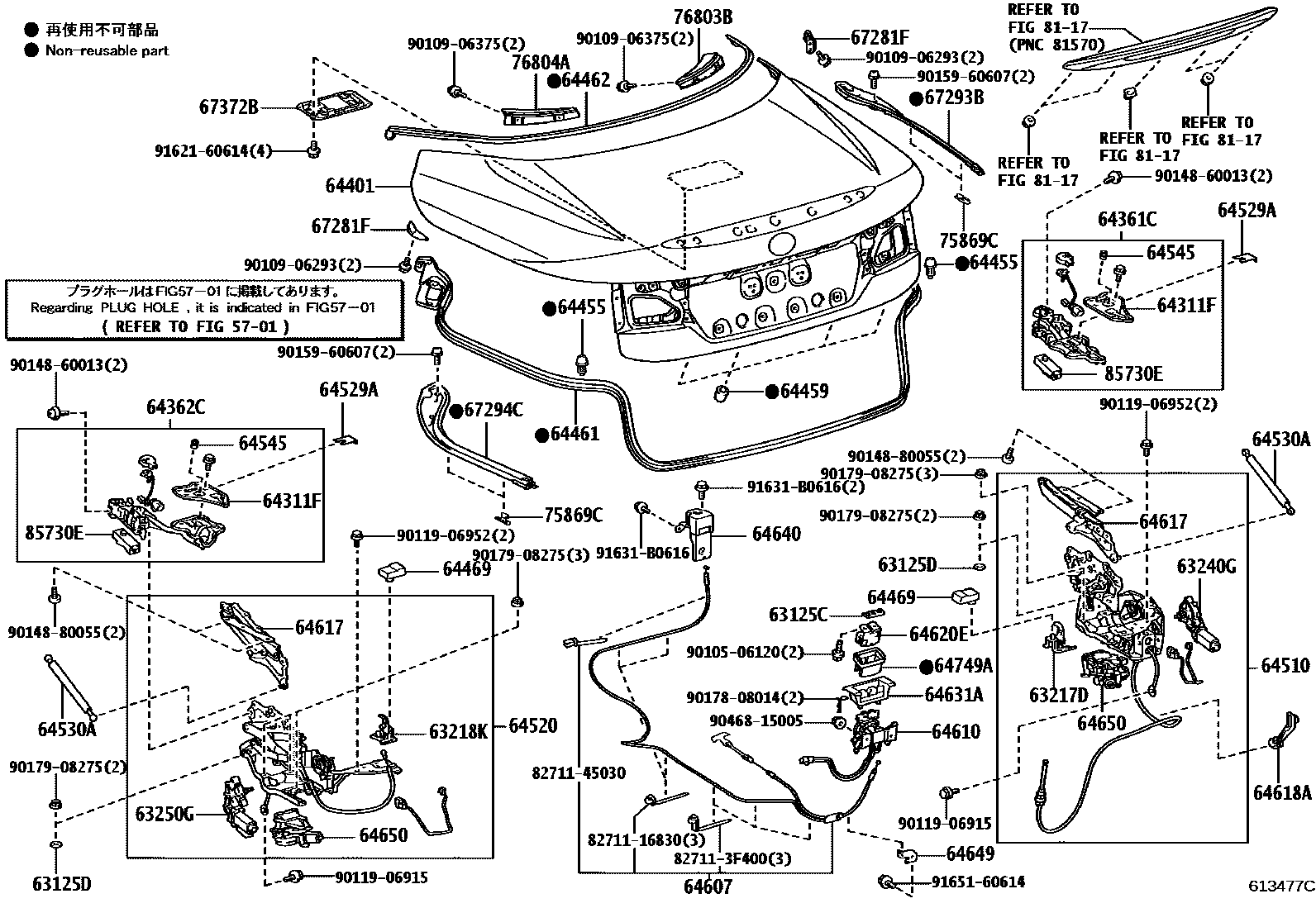

LUGGAGE COMPARTMENT DOOR & LOCK
5701
63125CSHIM, LUGGAGE DOOR
T=0.5
63125DSHIM, LUGGAGE DOOR, NO.2
63217DHOOK, REMOVABLE ROOF AUXILIARY, RH
63218KHOOK, REMOVABLE ROOF AUXILIARY
63240GGEAR ASSY, LUGGAGE DOOR DRIVE, RH
63250GGEAR ASSY, LUGGAGE DOOR DRIVE, LH
64361CHINGE, PACKAGE TRAY TRIM, NO.1
64362CHINGE, PACKAGE TRAY TRIM, NO.2
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64529ASHIM, LUGGAGE COMPARTMENT DOOR HINGE
T=0.5
T=1.0
T=2.0
T=3.0
T=4.0
64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
RH
LH
64545CUSHION, LUGGAGE DOOR HINGE
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64618ACLAMP, LUGGAGE LOCK CONTROL CABLE
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64631APROTECTOR, LUGGAGE DOOR LOCK
IVORY,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#
64640OPENER ASSY, LUGGAGE DOOR LOCK
64649RETAINER, LUGGAGE DOOR LOCK CONTROL BASE
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
67281FSTOPPER, BACK DOOR, LOWER
RH,MARK1,*RRM
RH,MARK2,*RRM
RH,MARK3,*RRM
LH,MARK1,*RRM
LH,MARK2,*RRM
LH,MARK3,*RRM
67293BCUSHION, BACK DOOR STOPPER, RH
67294CCUSHION, BACK DOOR STOPPER, LH
75869CRETAINER, QUARTER OPENING, LH
8117
85730EMOTOR ASSY, SLIDE ROOF
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F400
8271145030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-45030
9010506120
main90105-06120
9010906293
main90109-06293
9010906375
main90109-06375
9011906915
main90119-06915
9011906952
main90119-06952
9014860013
main90148-60013
9014880055
main90148-80055
9015960607
main90159-60607
9017808014
main90178-08014
9017908275
main90179-08275
9046815005
main90468-15005
9162160614
main91621-60614
91631B0616
main91631-B0616
9165160614
main91651-60614
57 parts on this diagram · 1 diagram in section
