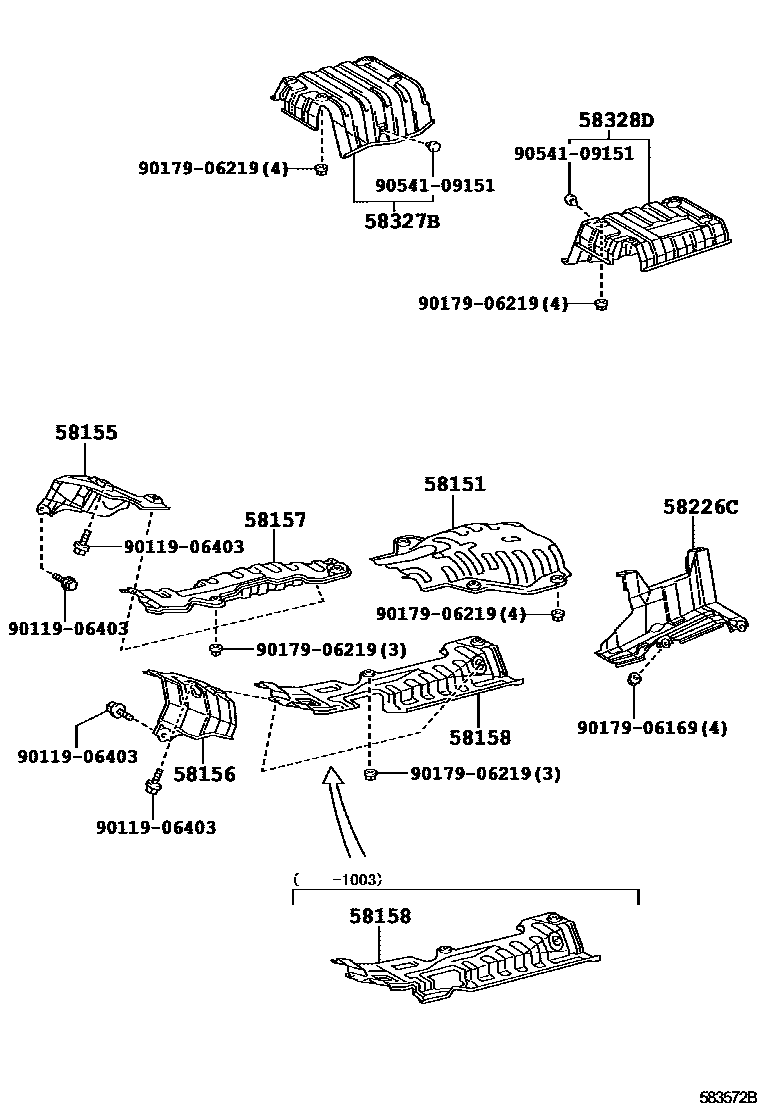

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30130iGSE2#200904

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30040iGSE2#200904

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30080iGSE2#200904

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30071iGSE2#200904-201003

sub58157-30072

main58157-30072iGSE2#201004-201108

sub58157-30073

main58157-30073iGSE2#201109

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30061iGSE2#200904-201003

sub58158-30062

main58158-30062iGSE2#201004-201201

sub58158-30063

main58158-30063iGSE2#201202

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-53010iGSE2#200904

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-53020iGSE2#200904

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-53020iGSE2#200904

9011906403

main90119-06403

9017906169

main90179-06169

9017906219

main90179-06219

9054109151

main90541-09151

12 parts on this diagram · 1 diagram in section
