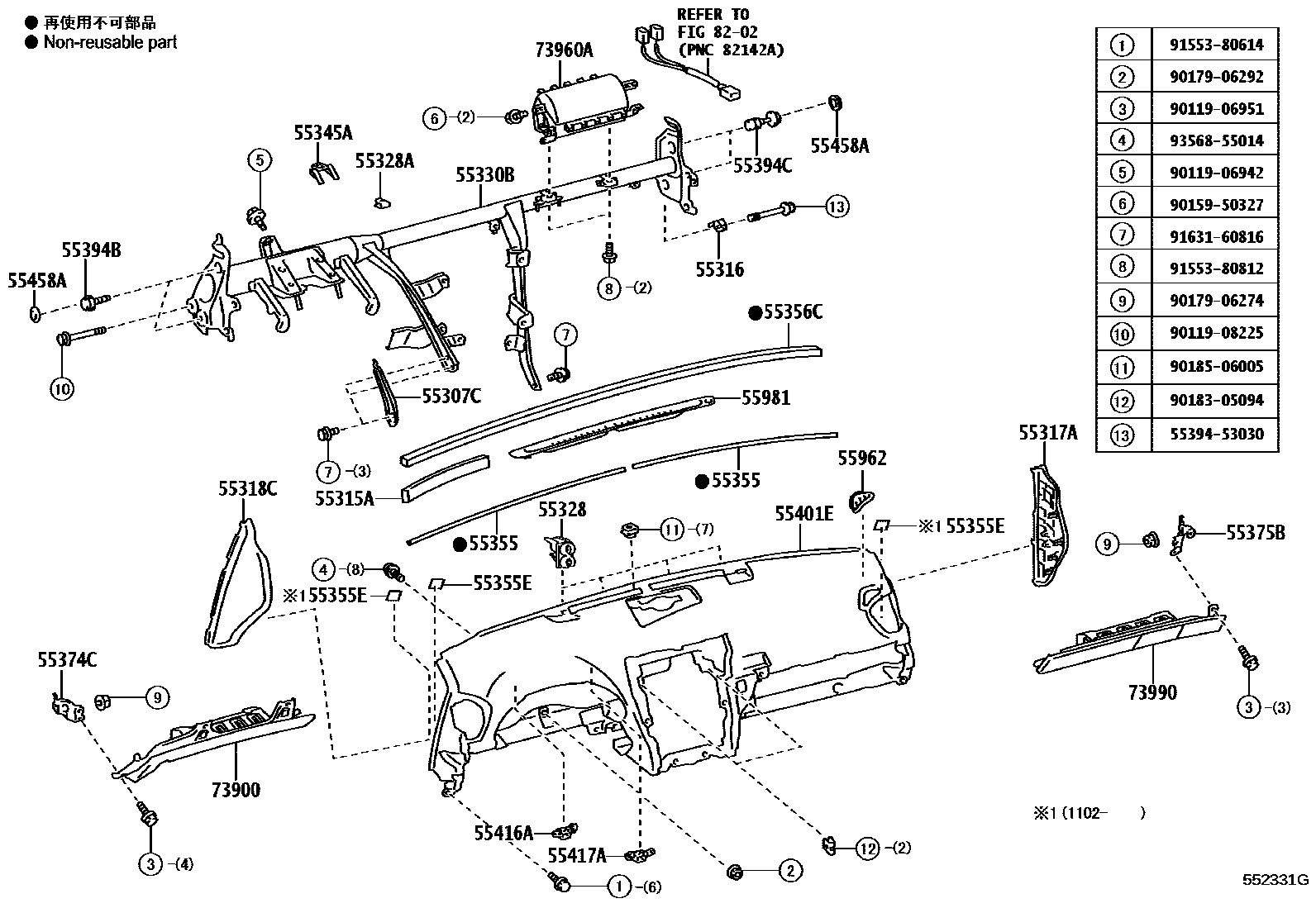

INSTRUMENT PANEL & GLOVE COMPARTMENT
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55315ASPACER, INSTRUMENT PANEL, NO.1
55316SPACER, INSTRUMENT PANEL, NO.2
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM0#,1#,2#,3#,4#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM0#,1#,2#,3#,4#
55328PIN, INSTRUMENT PANEL, NO.1
55328ASTAY, INSTRUMENT PANEL, NO.3
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55345ACLIP, INSTRUMENT PANEL, NO.1
55355CUSHION, INSTRUMENT PANEL, NO.1
55355ECUSHION, INSTRUMENT PANEL
55356CCUSHION, INSTRUMENT PANEL, NO.2
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55416ARETAINER, METER HOOD, NO.1
55417ARETAINER, METER HOOD, NO.2
55458ACAP, INSTRUMENT PANEL SAFETY PAD
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM0#,1#,2#,3#,4#
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM0#,1#,2#,3#,4#
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
sub73960-53190
73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2
8202
5539453030BRACKET, INSTRUMENT PANEL TO PEDAL
9011906942
9011906951
9011908225
9015950327
9017906274
9017906292
9018305094
9018506005
9155380614
9155380812
9163160816
9356855014
39 parts on this diagram · 4 diagrams in section
