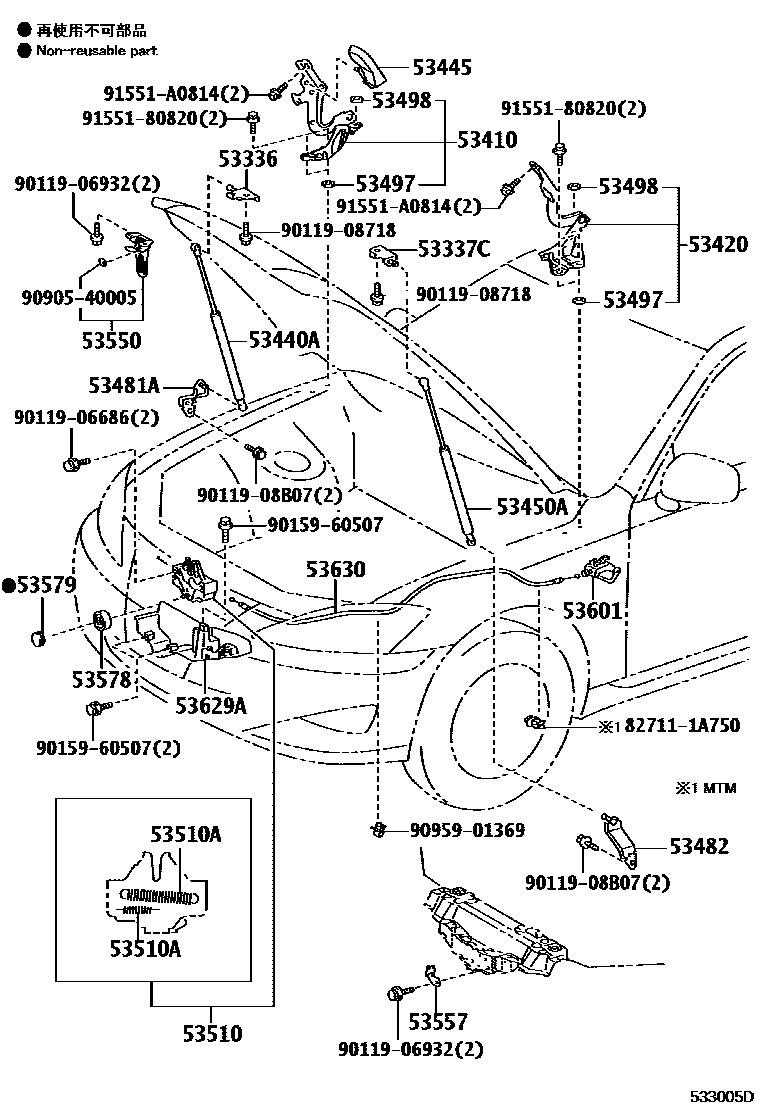

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-53020iGSE2#200904

53337CBRACKET, HOOD STAY, LH

main53337-53010iGSE2#200904

53410HINGE ASSY, HOOD, RH

main53410-53020iGSE2#200904

53420HINGE ASSY, HOOD, LH

main53420-53020iGSE2#200904

53440ASUPPORT ASSY, HOOD, RH

main53440-0W101iGSE2#200904-201112

sub53440-0W102

main53440-0W102iGSE2#201201

53445COVER, HOOD HINGE, RH

main53445-53010iGSE2#200904

53450ASUPPORT ASSY, HOOD, LH

main53450-0W081iGSE2#200904-201112

sub53450-0W082

main53450-0W082iGSE2#201201

53481ABRACKET, HOOD SUPPORT, RH

main53481-53010iGSE2#200904-201507

53482BRACKET, HOOD SUPPORT, LH

main53482-53010iGSE2#200904-201507

53497PAD, HOOD HINGE, NO.1

main53497-50020iGSE2#200904

T=1.0

53498PAD, HOOD HINGE, NO.2

main53497-53010iGSE2#200904

T=1.0

53510LOCK ASSY, HOOD

main53510-53060iGSE2#200904-200909

sub53510-53061

main53510-53061iGSE2#200910

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iGSE2#200904

WD=0.9,CW=20.5

main90506-14086iGSE2#200904

WD=1.4,CW=15

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-53010iGSE2#200904

53557CATCH, HOOD AUXILIARY HOOK

main53557-53011iGSE2#200904

53578NUT, HOOD LOCK

main53578-50010iGSE2#200904

53579CAP, HOOD LOCK NUT

main53579-50010iGSE2#200904

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A2iGSE2#200904-201507

MELLOW WHITE,TRIM0#

sub53601-52010

main53601-52010-C0iGSE2#200904-201507

BLACK,TRIM1#,2#,3#,4#

sub53601-52010

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-53040iGSE2#200904

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-53030iGSE2#200904

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9011906686

main90119-06686

9011906932

main90119-06932

9011908718

main90119-08718

9011908B07

main90119-08B07

9015960507

main90159-60507

9090540005

main90905-40005

9095901369

main90959-01369

9155180820

main91551-80820

91551A0814

main91551-A0814

30 parts on this diagram · 1 diagram in section
