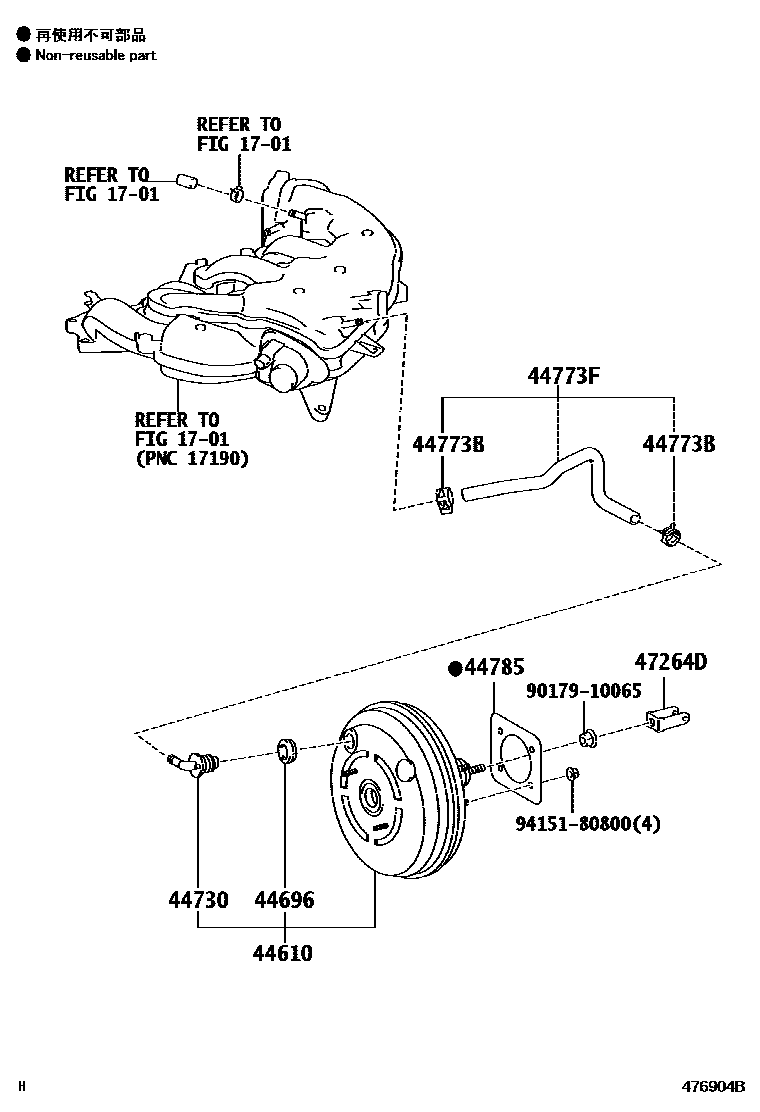

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-53281iGSE20200904-201507

main44610-53350iGSE21200904-201507

44696GROMMET, CHECK VALVE

main90480-24015iGSE21200904

main90480-24439iGSE20200904

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iGSE20200904-201507

main44730-28010iGSE21200904-201507

44773BCLIP, NO.2(FOR VACUUM HOSE, NO.2)

main90467-16014iGSE21200904

44773FHOSE, UNION TO CHECK VALVE

main44750-53120iGSE20200904

main44750-53140iGSE21200904

44785GASKET, BRAKE BOOSTER

main44785-47010iGSE2#200904

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGSE2#200904

9017910065

main90179-10065

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
