DISC WHEEL & WHEEL CAP

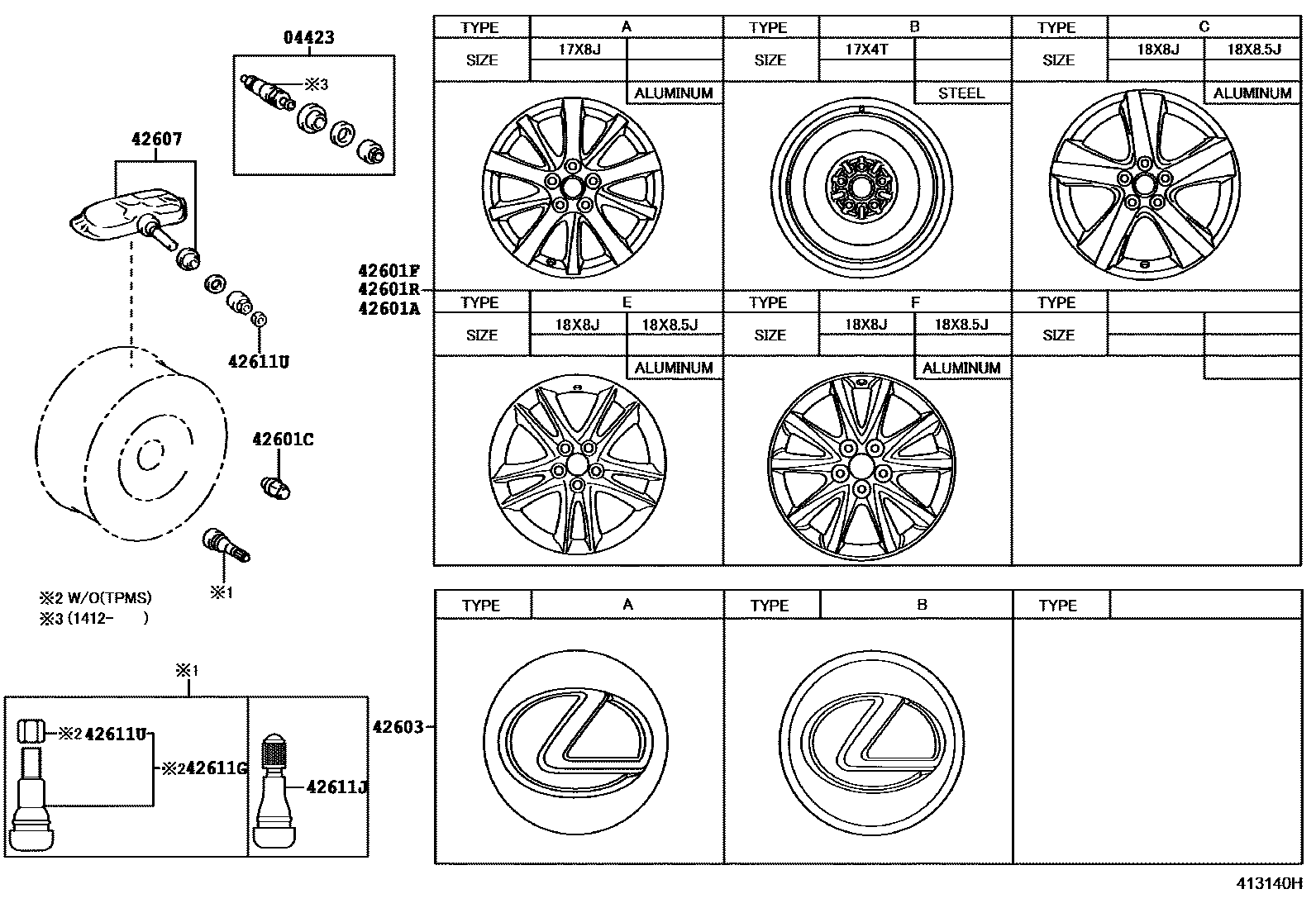

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i200904-201411
sub04423-33060
main04423-33060i201412
42601AWHEEL, DISC (FOR SPARE)
main42611-30A60i200904-200908
17X4T,TYPE B:REFER ILLUST.
main42611-53320i200908
17X4T,TYPE B:REFER ILLUST.
sub42611-53321
42601CNUT, HUB (FOR AXLE)
main90942-01033i200904-201507
42601FWHEEL, DISC (FOR FRONT)
main42611-WY070i201208-201507
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI,TYPE E:REFER ILLUST.
main42611-WY070i201208-201507
18X8J, #,USA POSSESIONS SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI,TYPE E:REFER ILLUST.
main42611-WY070i201208-201507
18X8J, #,USA POSSESIONS SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI,TYPE E:REFER ILLUST.
main42611-WY070i201208-201507
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI,TYPE E:REFER ILLUST.
main42611-WY070i201208-201507
18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI,TYPE E:REFER ILLUST.
main42611-WY070i201208-201507
18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI,TYPEE:REFER ILLUST.
main42611-WY070i201208-201408
18X8J, #,KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI,TYPE E:REFER ILLUST.
main42611-WY070i201208-201408
18X8J, #,KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI,TYPE E:REFER ILLUST.
main42611-WY080i201208-201507
18X8.5J, #,USA POSSESIONS SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI,TYPE E:REFER ILLUST.
main4261A-53090i200904-201507
17X8J, #,TYPE A:REFER ILLUST.
sub4261A-53091
main4261A-53090i200904-201207
17X8J, #,USA POSSESIONS SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17 GENERAL COUNTRIES,TYPE A:REFER ILLUST.
sub4261A-53091
main4261A-53090i200904-201008
17X8J, #,MEXICO SPEC&TIRE & DISC WHEEL-225/45R17+245/45R17 GENERAL COUNTRIES,TYPEA:REFER ILLUST.
sub4261A-53091
main4261A-53100i200904-201507
17X8J, #,CANADA SPEC,TYPE A:REFER ILLUST.
sub4261A-53101
main4261A-53110i200904-201208
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFER ILLUST.
sub4261A-53120
main4261A-53110i200904-201208
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-53120
main4261A-53110i200904-201208
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE C:REFER ILLUST.
sub4261A-53120
main4261A-53110i200904-201207
18X8J, #,KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFERILLUST.
sub4261A-53120
main4261A-53120i200904-201208
18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE C:REFER ILLUST.
main4261A-53120i200904-201208
18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFERILLUST.
main4261A-53210i201108-201507
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFER ILLUST.
sub4261A-53220
main4261A-53210i201108-201507
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-53220
main4261A-53220i201108-201507
18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE D:REFERILLUST.
main4261A-53410i201208-201507
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM,TYPE F:REFER ILLUST.
main4261A-53410i201208-201507
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE F:REFER ILLUST.
main4261A-53410i201208-201507
18X8J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE F:REFER ILLUST.
main4261A-53410i201208-201408
18X8J, #,KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE F:REFERILLUST.
main4261A-53420i201208-201507
18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE F:REFERILLUST.
main4261A-53420i201208-201507
18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE F:REFER ILLUST.
42601RWHEEL, DISC (FOR REAR)
main42611-WY080i201208-201507
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI,TYPE E:REFERILLUST.
main42611-WY080i201208-201408
18X8.5J, #,KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI,TYPEE:REFER ILLUST.
main42611-WY080i201208-201507
18X8.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI,TYPE E:REFER ILLUST.
main42611-WY080i201208-201507
18X8.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI,TYPE E:REFER ILLUST.
main42611-WY080i201208-201507
18X8.5J, #,USA POSSESIONS SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI,TYPE E:REFER ILLUST.
main42611-WY080i201208-201507
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI,TYPE E:REFER ILLUST.
main4261A-53090i200904-201507
17X8J, #,TYPE A:REFER ILLUST.
sub4261A-53091
main4261A-53100i200904-201507
17X8J, #,CANADA SPEC,TYPE A:REFER ILLUST.
sub4261A-53101
main4261A-53130i200904-201208
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE C:REFERILLUST.
sub4261A-53140
main4261A-53130i200904-201208
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-53140
main4261A-53130i200904-201208
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFER ILLUST.
sub4261A-53140
main4261A-53130i200904-201207
18X8.5J, #,KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFER ILLUST.
sub4261A-53140
main4261A-53140i200904-201208
18X8.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE C:REFER ILLUST.
main4261A-53140i200904-201208
18X8.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE C:REFER ILLUST.
main4261A-53230i201108-201507
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM,TYPE D:REFER ILLUST.
main4261A-53230i201108-201507
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE D:REFER ILLUST.
main4261A-53240i201108-201507
18X8.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE D:REFER ILLUST.
main4261A-53430i201208-201408
18X8.5J, #,KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE F:REFER ILLUST.
sub4261A-53440
main4261A-53430i201208-201507
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE F:REFERILLUST.
sub4261A-53440
main4261A-53430i201208-201507
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE F:REFER ILLUST.
sub4261A-53440
main4261A-53430i201208-201507
18X8.5J, #,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM,TYPE F:REFER ILLUST.
sub4261A-53440
main4261A-53440i201208-201507
18X8.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE F:REFER ILLUST.
main4261A-53440i201208-201507
18X8.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE F:REFER ILLUST.
42603ORNAMENT SUB-ASSY, WHEEL HUB
main42603-30550i201208
*CHR,TYPE B:REFER ILLUST.
sub42603-30551
main42603-30590i200904-201208
*CHR,TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON,TYPE A:REFER ILLUST.
main42603-30590i200904-201208
*CHR,TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM,TYPE A:REFER ILLUST.
main42603-30590i200904-201208
*CHR,TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON,TYPE A:REFER ILLUST.
main42603-50320i200904-201208
*ALU,TYPE A:REFER ILLUST.
main42603-53110i201208
*ALU,TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI,TYPE B:REFER ILLUST.
main42603-53110i201208
*ALU,TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-33021i200904
sub42607-33022
42611GVALVE (FOR TUBELESS TIRE)
main90942-05028i200904-201408
KOREA SPEC
main90942-05028i200904-201408
KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON
main90942-05028i201208-201408
KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI
main90942-05028i201208-201408
KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i200904
42611UCAP, TIRE VALVE
main90942-05029i201208-201408
KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,SUMMER TIRE,ALUMI
main90942-05029i200904-201408
KOREA SPEC
main90942-05029i200904-201408
KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON
main90942-05029i201208-201408
KOREA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18,ALLSEASON TIRE,ALUMI
main90942-05037i201207-201208
TIRE & DISC WHEEL-225/40R18+255/40R18 ALUMINUM
main90942-05037i201207-201208
CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON
main90942-05037i201207-201208
TIRE & DISC WHEEL-225/40R18+255/40R18 ALL SEASON
main90942-05037i201207-201208
TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON
main90942-05037i201207-201208
CANADA SPEC&TIRE & DISC WHEEL-225/40R18+255/40R18 RUN FLAT ALL SEASON
main90942-05037i200904-201207
main90942-05042i201207

10 parts on this diagram · 1 diagram in section
