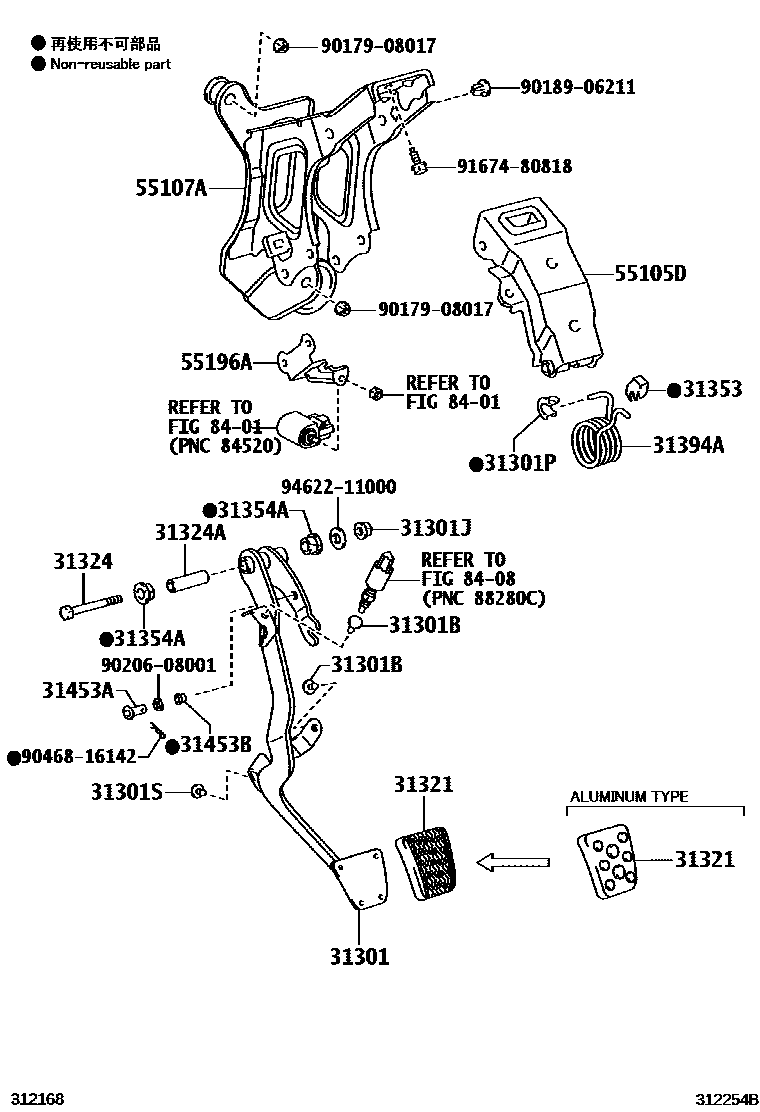

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-53110iGSE20..6F200904-201208

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iGSE20..6F200904-201208

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-01001iGSE20..6F200904-201208

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGSE20..6F200904-201208

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06046iGSE20..6F200904-201208

31321PAD, CLUTCH PEDAL

main31321-12040iGSE20..6F200904-201208

31324SHAFT, CLUTCH PEDAL

main90101-10164iGSE20..6F200904-201208

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10105iGSE20..6F200904-201208

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iGSE20..6F200904-201208

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-13015iGSE20..6F200904-201208

31394ASPRING, PEDAL W/HOOK

main31394-53010iGSE20..6F200904-201208

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iGSE20..6F200904-201208

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08036iGSE20..6F200904-201208

55105DBRACKET SUB-ASSY, CLUTCH PEDAL

main55105-53020iGSE20..6F200904-201208

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-53050iGSE20..6F200904-201208

55196ABRACKET, CLUTCH START SWITCH MOUNTING

main55196-53030iGSE20..6F200904-201208

8401

8408

9017908017

main90179-08017

9018906211

main90189-06211

9020608001

main90206-08001

9046816142

main90468-16142

9167480818

main91674-80818

9462211000

main94622-11000

24 parts on this diagram · 2 diagrams in section
