STANDARD TOOL

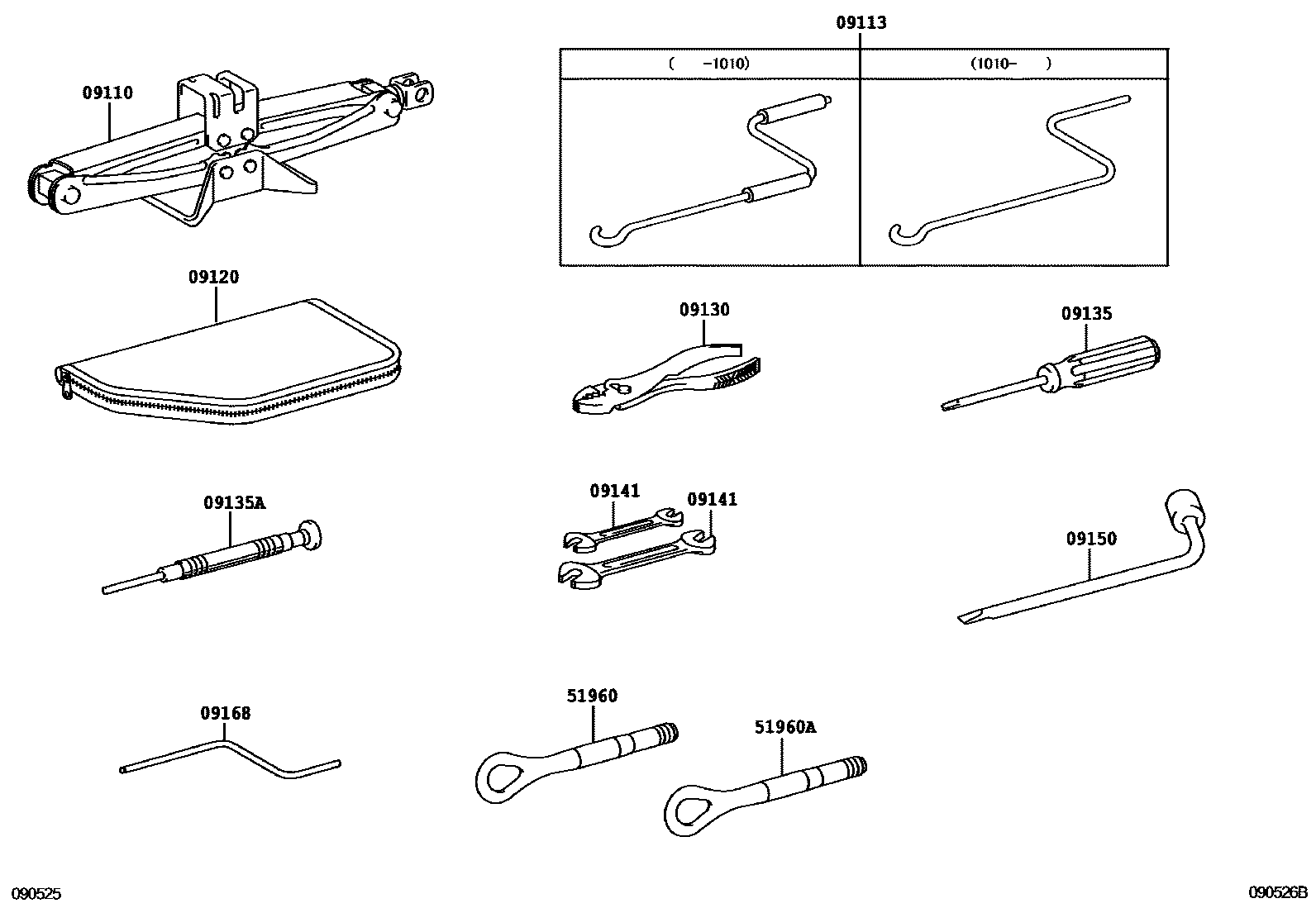

Parts diagram

09110JACK ASSY

main09111-33030i201010

main09111-50051i200904-201009

09113HANDLE, JACK

main09113-13040i201010

main09113-22020i200904-201010

09120BAG, TOOL

main09120-53030i200904

09130PLIERS

main09130-50030i200904-200906

main09130-50040i200906

09135DRIVER, SCREW

main09135-50040i200904-200906

main99915-10700i200906

09135ABIT, SCREW DRIVER

09141SPANNER

main09141-50050i200904-200906

8 X 10

main09141-50060i200904-200906

12 X 14

main09141-60010i200906

8 X 10

main09141-60020i200906

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010i200904-200905

main09150-53010i200906-201205

main09150-76020i201205-201507

09168WRENCH, ROOF PANEL

main09168-53010i200904

51960HOOK ASSY, FRONT

main51961-53010i200904

51960AHOOK ASSY, REAR

main51961-53010i200904-201507

11 parts on this diagram · 1 diagram in section
