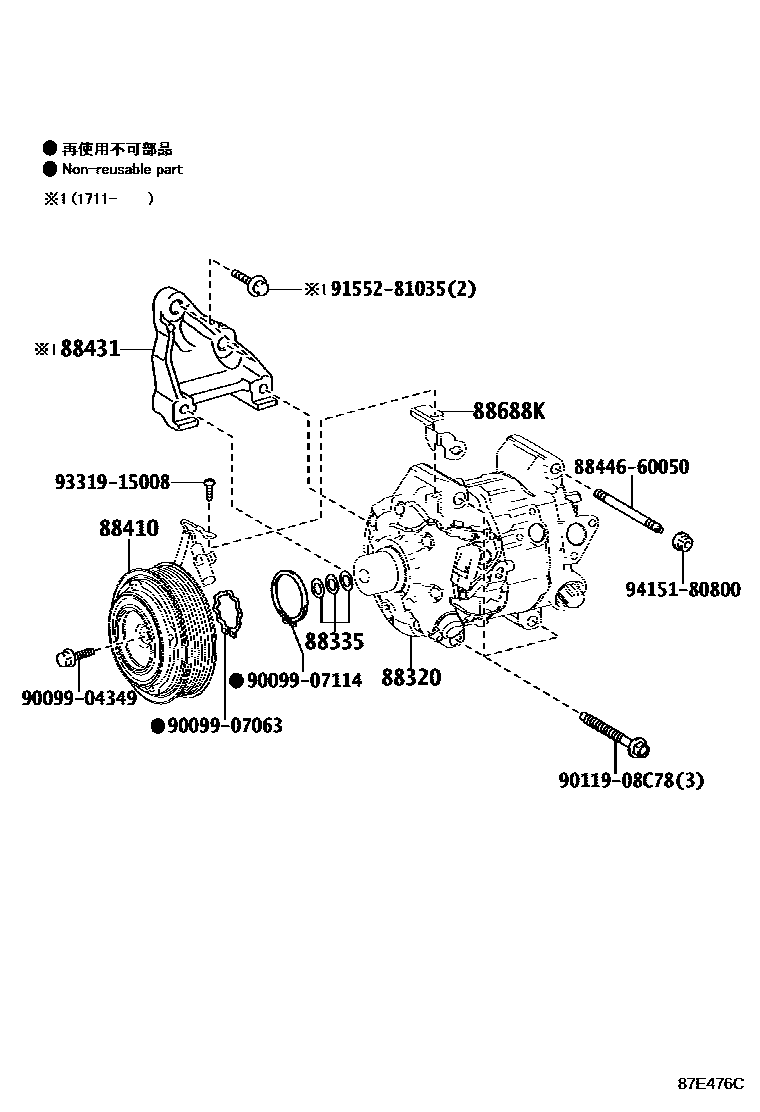

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88320COMPRESSOR ASSY, COOLER

main88320-30730iGSC15,16201711-202009

main88320-3A440iGSC10201409-201512

sub88320-3A510

main88320-3A450iGSC15201409-201512

sub88320-3A520

main88320-3A510iGSC10201512-201711

main88320-3A520iGSC15,16201512-201711

main88320-48320iASC10201510-202009

main88320-48330iASC10,GSC10202009

main88320-53070iGSC15,16202009

88335GASKET KIT, OVERHAUL

main88335-14020iASC10,GSC1#201409-201810

88410CLUTCH ASSY, MAGNET

main88410-0N010iASC10201510-201810

main88410-33190iGSC1#201409-201711

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36031iASC10201510-201810

main88431-30630iGSC15,16201711-201810

main88431-48050iGSC10201711-201810

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iGSC1#201409-201810

8844660050BOLT, IDLE PULLEY

main88446-60050

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78

9155281035

main91552-81035

9331915008

main93319-15008

9415180800

main94151-80800

13 parts on this diagram · 3 diagrams in section
