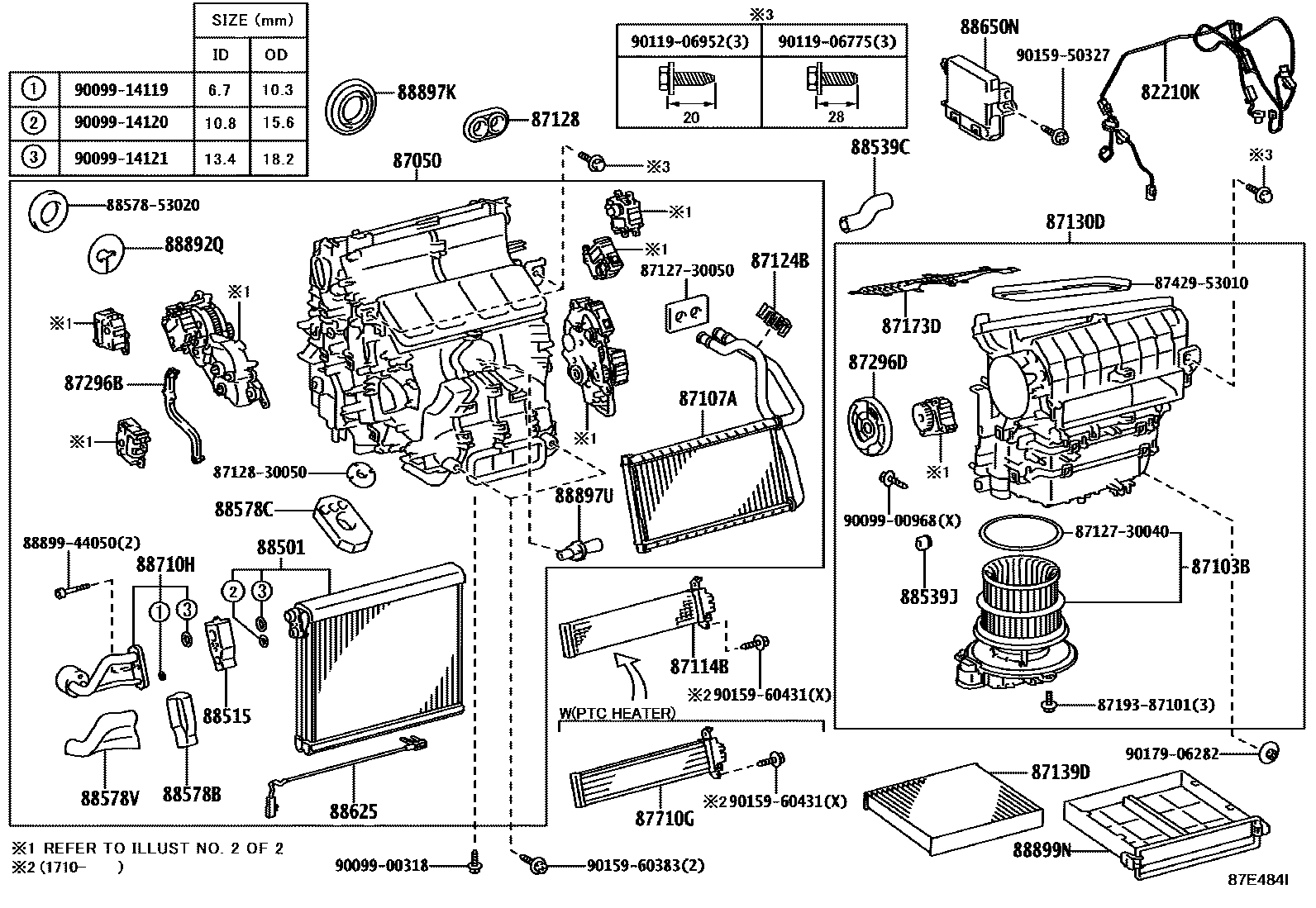

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1SERVO MOTOR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-53010iASC10,GSC1#201409-201810

87050RADIATOR ASSY, AIR CONDITIONER

main87050-53072iGSC1#201409-201412

sub87050-53073

main87050-53073iGSC1#201501-201503

sub87050-53180

sub87128-30060

main87050-53180iGSC1#201503-201609

sub87050-53181

main87050-53181iASC10,GSC1#201610-202009

main87050-53192iASC10,GSC1#202009

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-30470iGSC1#201409-201507

sub87103-30471

main87103-30471iASC10,GSC1#201507-201810

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30571iGSC1#201409-201503

sub87107-30580

sub87128-30060

main87107-30580iGSC1#201503-201810

87114BCOVER, HEATER

main87114-30010iGSC1#201409-201810

87124BCLAMP, HEATER

main87124-33070iGSC1#201409-201810

87128GROMMET, HEATER

main87128-30060iASC10,GSC1#201503-201810

main87128-35020iGSC1#201409-201502

87130DBLOWER ASSY

main87130-30821iGSC1#201409-201507

sub87130-30822

main87130-30822iGSC1#201507-201808

sub87130-30840

main87130-30840iASC10,GSC1#201809-201810

87139DELEMENT, AIR REFINER

main87139-30100iGSC1#201409-201810

87173DPROTECTOR HEATER

main87173-53020iASC10,GSC1#201409-201810

87296BLEVER, HEATER AIR DAMPER CONTROL

main87296-53010iASC10,GSC1#201810

87296DLEVER, HEATER AIR DAMPER CONTROL, NO.2

main87296-53020iASC10,GSC1#201810

87710GQUICK HEATER ASSY

main87710-30050iGSC1#201409-201810

COLD AREA SPEC

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A190iASC10,GSC1#201409-202009

main88501-3A210iASC10,GSC1#202009

88515VALVE, COOLER EXPANSION

main88515-24050iASC10,GSC1#202009

main88515-30780iGSC1#201409-202009

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88839-30010iGSC1#201409-201810

88539JHOSE, DRAIN COOLER

main88539-30A00iGSC1#201409-201810

88578BPACKING, COOLING UNIT, NO.1

main88578-3A010iGSC1#201409-201810

88578CPACKING, COOLING UNIT, NO.2

main88578-52130iGSC1#201409-201501

sub88578-52131

main88578-52131iGSC1#201501-201810

88578VPACKING, COOLING UNIT, NO.3

main88578-30890iASC10,GSC1#201409-201810

88625THERMISTOR, COOLER, NO.1

main88620-30050iGSC1#201409-201810

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-24430iGSC1#201409-201510

sub88650-24431

main88650-24431iASC10,GSC1#201510-201609

main88650-24432iASC10,GSC1#201609-201711

main88650-24433iASC10,GSC1#201711-202009

main88650-24571iASC10,GSC1#202009-202301

main88650-24572iASC10,GSC1#202301

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-3A410iGSC1#201409-201810

88892QPLATE, COOLER

main88892-30620iGSC1#201409-201810

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iASC10,GSC1#201709-201810

main88897-35030iASC10,GSC1#201409-201708

88897UPIPE, ASPIRATOR

main88897-32090iASC10,GSC1#201409-201810

88899NPLATE, COVER

main88899-3A090iGSC1#201409-201810

8712730040PACKING, HEATER AIR DAMPER

main87127-30040

8712730050PACKING, HEATER AIR DAMPER

main87127-30050

8712830050GROMMET, HEATER

main87128-30050

8719387101

main87193-87101

8742953010PIPE, COMBUSTION HEATER OUTLET

main87429-53010

8857853020PAKING, COOLER AIR DUCT

main88578-53020

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906775

main90119-06775

9011906952

main90119-06952

9015950327

main90159-50327

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

45 parts on this diagram · 2 diagrams in section
