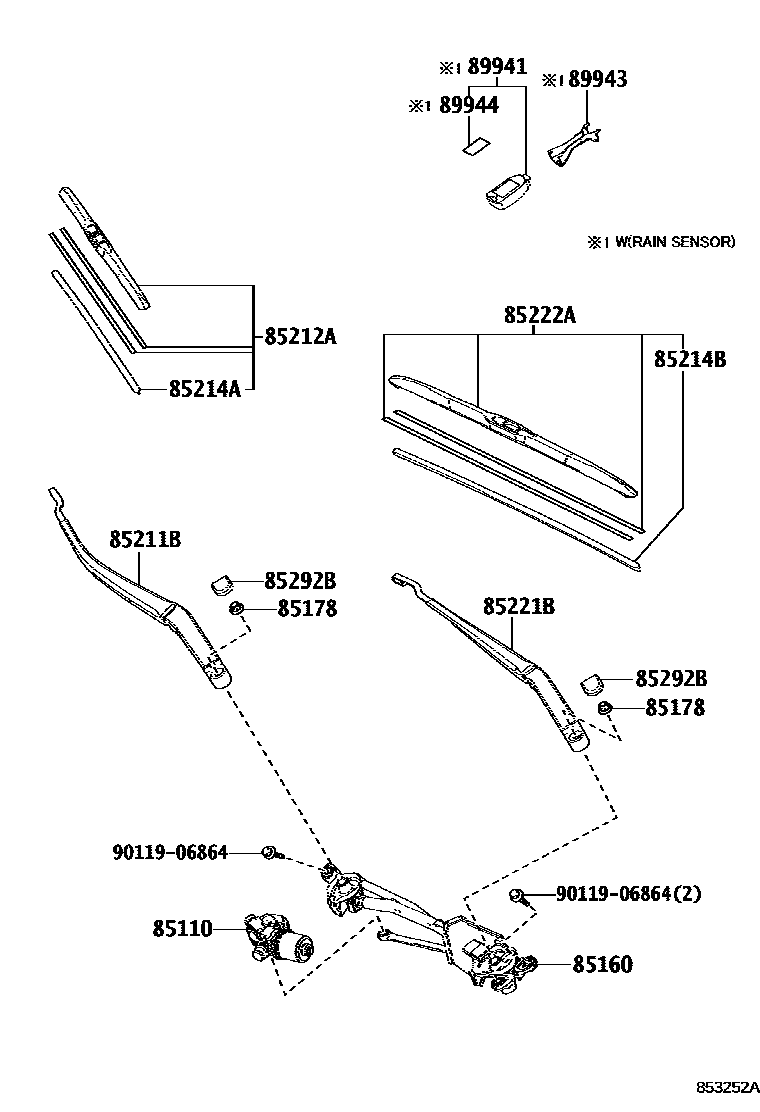

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-53050iGSC1#201409-201810

85160LINK ASSY, WINDSHIELD WIPER

main85150-24150iGSC1#201409-201810

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iGSC1#¥80201409-201810

85211BARM, FRONT WIPER, RH

main85211-24170iGSC1#201409-201810

85212ABLADE, FR WIPER, RH

main85212-53100iGSC1#¥2,180201409-201810

85214ARUBBER, WIPER, RH

main85214-33180iGSC1#¥800201409-201810

85214BRUBBER, WIPER, LH

main85214-30380iGSC1#¥850201409-201810

85221BARM, FRONT WIPER, LH

main85221-24170iGSC1#201409-201810

85222ABLADE, FR WIPER, LH

main85222-24150iGSC1#¥3,700201409-201810

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iGSC1#¥250201409-201810

89941SENSOR, RAIN

main89941-52010¥12,500

89943COVER, RAIN SENSOR

main89943-24010¥230

89944TAPE, RAIN SENSOR

main89944-42010¥1,490

9011906864

main90119-06864¥80

14 parts on this diagram · 1 diagram in section
