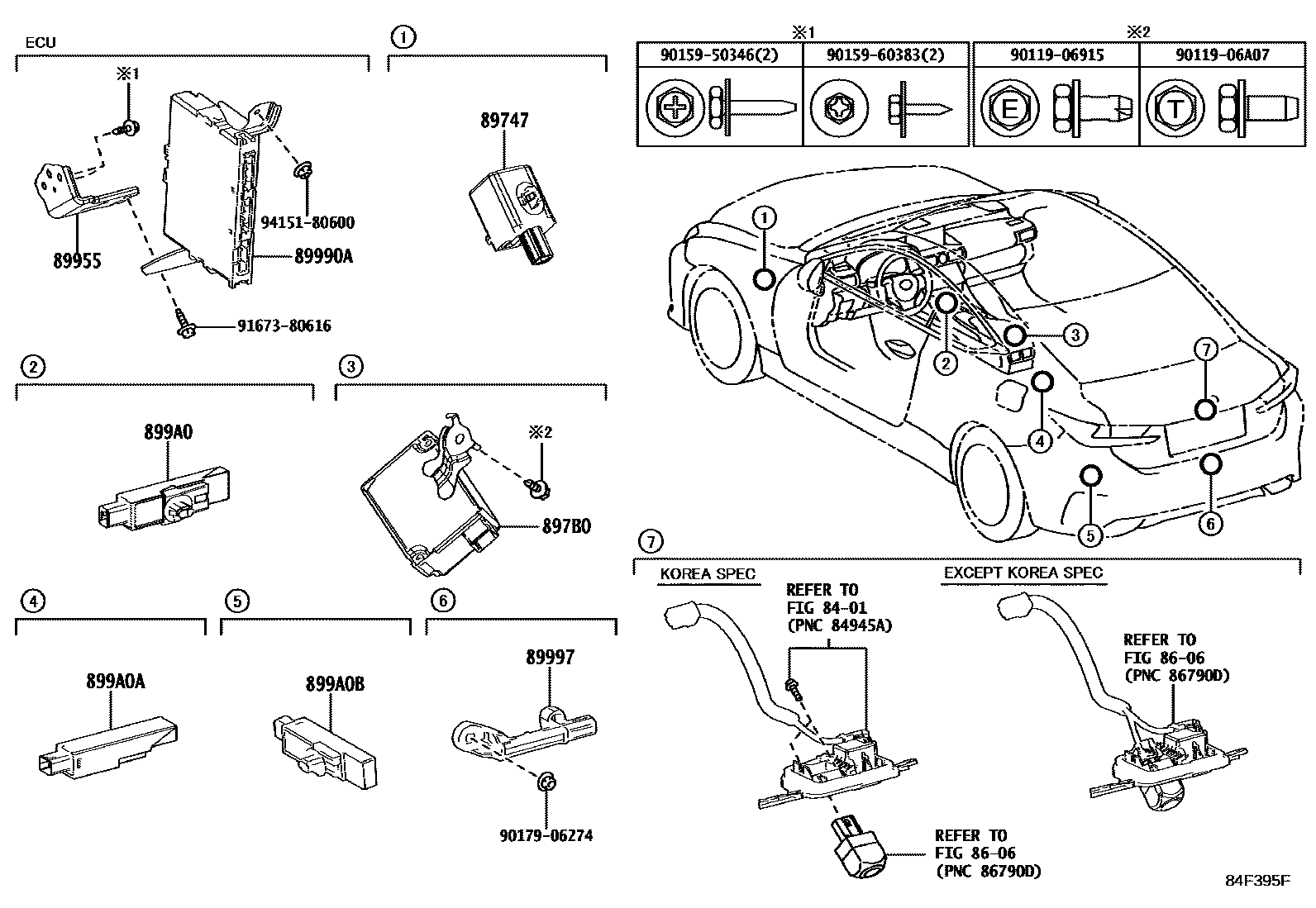

WIRELESS DOOR LOCK

8401

8606

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGSC1#201409-201810

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-24030iGSC1#201409-201505

sub897B0-24031

main897B0-24031iASC10,GSC1#201506-202009

main897B0-24090iASC10,GSC10201409-202009

KOREA SPEC

main897B0-24270iASC10,GSC1#202009-202301

main897B0-24350iASC10,GSC1#202301-202310

main897B0-24400iASC10,GSC1#202310

89955BRACKET, SMART KEY COMPUTER

main89955-53010iGSC1#201409-201810

89990ACOMPUTER ASSY, SMART KEY

main89990-24030iGSC1#201409-201510

main89990-24040iASC10,GSC1#202301

main89990-24050iASC10,GSC1#201911-202009

main89990-24110iASC10,GSC1#201510-201711

sub89990-24111

main89990-24111iASC10,GSC1#201711-201810

main89990-24180iASC10,GSC1#201810-201901

sub89990-24181

main89990-24181iASC10,GSC1#201902-201911

main89990-24200iASC10,GSC1#202009-202301

89997ANTENNA, ELECTRICAL KEY

main89997-30100iGSC1#201409-201810

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iASC10,GSC1#201409-201810

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A1-60010iGSC1#201409-201810

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iGSC1#201409-201810

9011906915

main90119-06915

9011906A07

main90119-06A07

9015950346

main90159-50346

9015960383

main90159-60383

9017906274

main90179-06274

9167380616

main91673-80616

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
