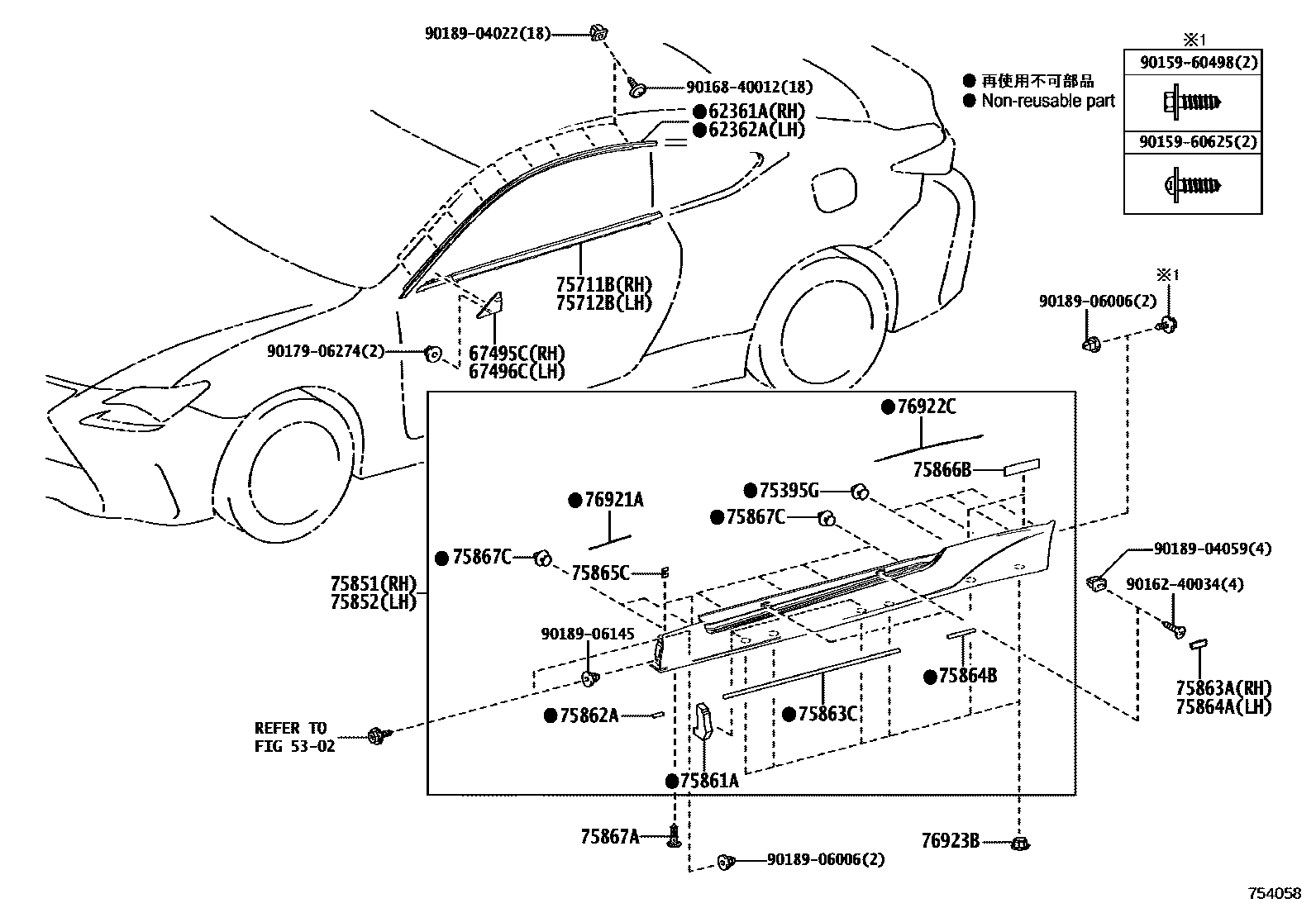

SIDE MOULDING
5302
62361ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
"F SPORT"
62362ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
BLACK EDITION
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75395GCLIP, OUTSIDE MOULDING, NO.1
75711BMOULDING, FRONT DOOR BELT, RH
75712BMOULDING, FRONT DOOR BELT, LH
75851MOULDING, ROCKER PANEL, RH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
TITANIUM CARBIDE GRAY,1L8 ,2YX
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
75852MOULDING, ROCKER PANEL, LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
TITANIUM CARBIDE GRAY,1L8 ,2YX
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED,3T5
ORANGE,4W7
NAPLES YELLOW,5C1
BLUE,8X1
SPARKLING METEOR ME.,8X9
CELESTIAL BLUE GF.,8Y6
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75863ACOVER, ROCKER PANEL MOULDING END, REAR RH
sub75863-30907
75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3
75864ACOVER, ROCKER PANEL MOULDING END, REAR LH
sub75863-30907
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
76921APROTECTOR, SIDE MUDGUARD, NO.1
76922CPROTECTOR, SIDE MUDGUARD, NO.2
76923BRETAINER, SIDE MUDGUARD
9015960498
main90159-60498
9015960625
main90159-60625
9016240034
main90162-40034
9016840012
main90168-40012
9017906274
main90179-06274
9018904022
main90189-04022
9018904059
main90189-04059
9018906006
main90189-06006
9018906145
main90189-06145
32 parts on this diagram · 1 diagram in section
