PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

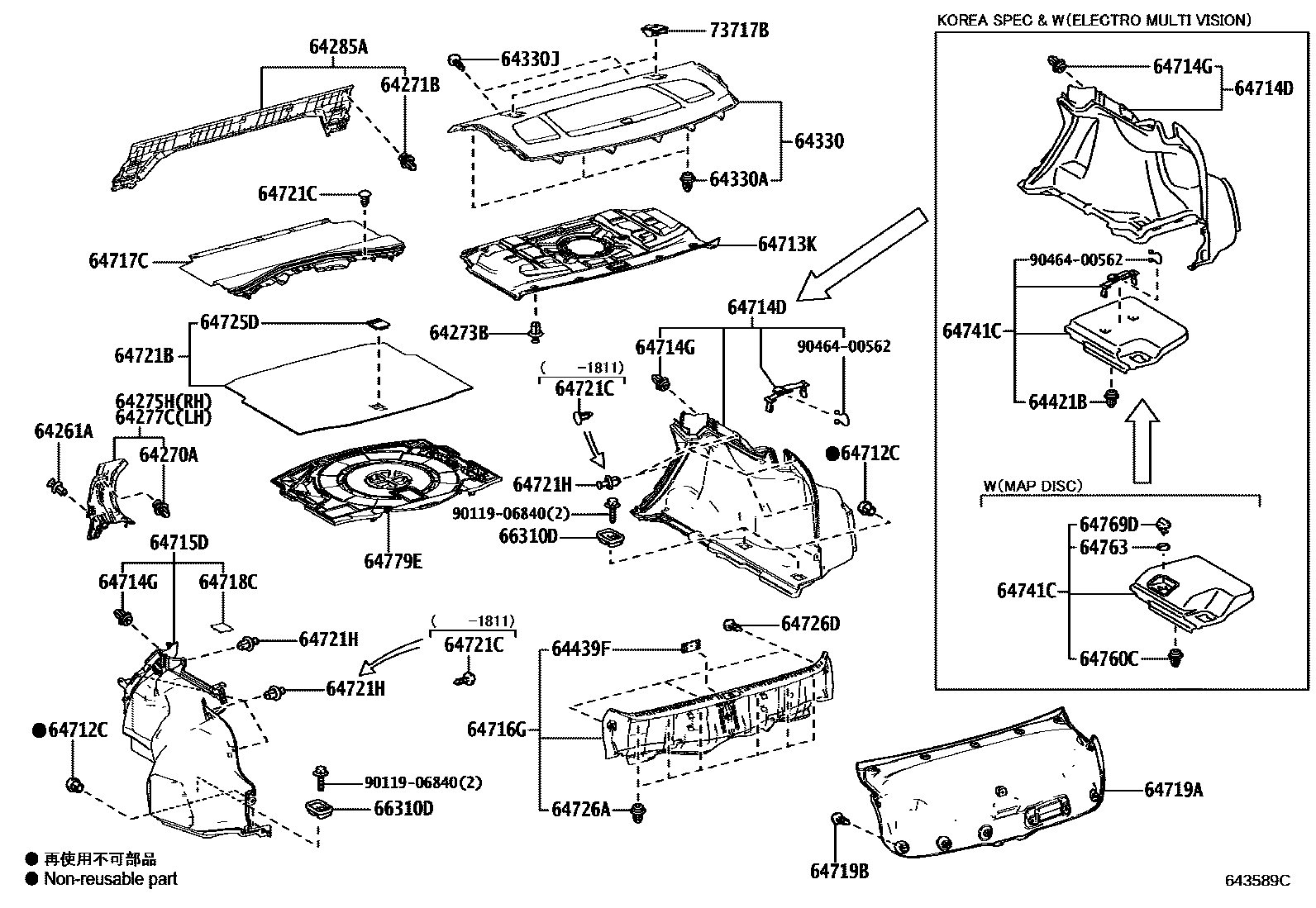

Parts diagram
64261ACLIP(FOR ROOM PARTITION GARNISH)
main90467-10216i201409-201810
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
main90467-10161i201409-201810
64271BCLIP(FOR ROOM PARTITION BOARD)
main90467-10161i201409-201810
64273BCLIP
main90467-07214i201409-201810
64275HCOVER, ROOM PARTITION, NO.1
main64275-24030-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main64275-24030-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main64275-24030-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
64277CCOVER, ROOM PARTITION, NO.2
main64277-24020-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main64277-24020-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main64277-24020-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
64285ACOVER, ROOM PARTITION, NO.3
main64285-24020-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main64285-24020-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main64285-24020-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-24260-C1i201409-201511
BLACK,TRIM1#,2#,3#,4#,5#
sub64330-24290
main64330-24290-C0i201512-201810
BLACK,TRIM1#,2#,3#,4#,5#
main64330-24290-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-10161i201409-201810
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-08186-C0i201409-201610
BLACK
sub90467-08186
main90467-08186-C3i201610-201810
BLACK
sub90467-08186
64421BCLIP(FOR LUGGAGE COMPARTMENT TRAY)
64439FCOVER, LUGGAGE ROOM, REAR
main64439-24020-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main64439-24020-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-12069i201409-201810
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
main64713-24020-C1i201409-201511
BLACK,TRIM1#,2#,3#,4#,5#
sub64713-24030
main64713-24030-C0i201512-201810
BLACK,TRIM1#,2#,3#,4#,5#
main64713-24030-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
main64714-24050-C3i201409-201511
BLACK,TRIM1#,2#,3#,4#,5#
sub64714-24080
main64714-24080-C0i201512-201710
BLACK,TRIM1#,2#,3#,4#,5#
sub64714-24080
main64714-24080-C2i201710-201810
BLACK,TRIM1#,2#,3#,4#,5#
sub64714-24080
main64714-24080-C2i201810
BLACK,TRIM0#,2#,3#,4#,5#
sub64714-24080
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
main90467-10161i201409-201810
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
main64715-24090-C3i201409-201511
BLACK,TRIM1#,2#,3#,4#,5#
sub64715-24110
main64715-24110-C0i201512-201810
BLACK,TRIM1#,2#,3#,4#,5#
main64715-24110-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-24120-C0i201409-201511
BLACK,TRIM1#,2#,3#,4#,5#
sub64716-24140
main64716-24140-C0i201512-201810
BLACK,TRIM1#,2#,3#,4#,5#
main64716-24140-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
64717CCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-24140-C0i201409-201511
BLACK,TRIM1#,2#,3#,4#,5#
sub64717-24160
main64717-24160-C0i201512-201810
BLACK,TRIM1#,2#,3#,4#,5#
main64717-24160-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
main64718-22020-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
sub64718-22020
main64718-22020-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
sub64718-22020
main64718-22020-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
sub64718-22020
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-24021-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main64719-24021-C0i201810
BLACK,TRIM0#,2#,3#,4#,5#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-08186-C0i201409-201610
BLACK
sub90467-08186
main90467-08186-C3i201610-201810
BLACK
sub90467-08186
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
main64722-24160-C1i201409-201511
BLACK,TRIM1#,2#,3#,4#,5#
main64722-24160-C1i202008
BLACK,TRIM0#,2#,3#,4#,5#
main64722-24190-C0i201810-202007
BLACK,TRIM0#,2#,3#,4#,5#
sub64722-24160
main64722-24190-C0i201512-201810
BLACK,TRIM1#,2#,3#,4#,5#
sub64722-24160
64721CCLIP(LUGGAGE COMPARTMENT)
main90467-08186-C0i201409-201610
BLACK
sub90467-08186
main90467-08186-C3i201610-201811
BLACK
sub90467-08186
64721HCLIP(LUGGAGE COMPARTMENT)
main90467-07214i201409-202009
main90467-07220i202009
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
main64725-50071i201409-201810
64726ACLIP, LUGGAGE TRIM, REAR
main90467-10161i201409-201810
64726DCLIP, LUGGAGE TRIM, REAR
main90467-08186-C0i201409-201610
BLACK
sub90467-08186
main90467-08186-C3i201610-201810
BLACK
sub90467-08186
64741CBOX, DECK SIDE TRIM, RH
64760CCLIP(FOR DECK SIDE TRIM PANEL)
64763STOPPER, TOOL COVER
main64768-60030
64769DKNOB, JACK COVER
64779ETRAY, SPARE WHEEL COVER
main64779-24010-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
sub64779-24040
main64779-24010-C0i201409-201609
BLACK,TRIM1#,2#,3#,4#,5#
sub64779-24040
main64779-24040-C0i201610-201810
BLACK,TRIM1#,2#,3#,4#,5#
main64779-24040-C0i201810-202210
BLACK,TRIM0#,2#,3#,4#,5#
main64779-24050-C0i202210
BLACK,TRIM0#,2#,3#,4#,5#
66310DHOOK ASSY, ROPE
main66310-30011-C0i201409-201701
BLACK,TRIM1#,2#,3#,4#,5#
sub66310-30011
main66310-30011-C1i201701-201810
BLACK,TRIM1#,2#,3#,4#,5#
sub66310-30011
main66310-30011-C1i201810
BLACK,TRIM0#,2#,3#,4#,5#
sub66310-30011
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
main73717-53040-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
sub73717-53040
main73717-53040-C0i201409-201704
BLACK,TRIM1#,2#,3#,4#,5#
sub73717-53040
main73717-53040-C1i201704-201810
BLACK,TRIM1#,2#,3#,4#,5#
sub73717-53040
main73717-53040-C1i201810-202009
BLACK,TRIM0#,2#,3#,4#,5#
sub73717-53040
main73717-53050-C0i202009
BLACK,TRIM0#,2#,3#,4#,5#
9011906840
main90119-06840
9046400562
main90464-00562

37 parts on this diagram · 1 diagram in section
