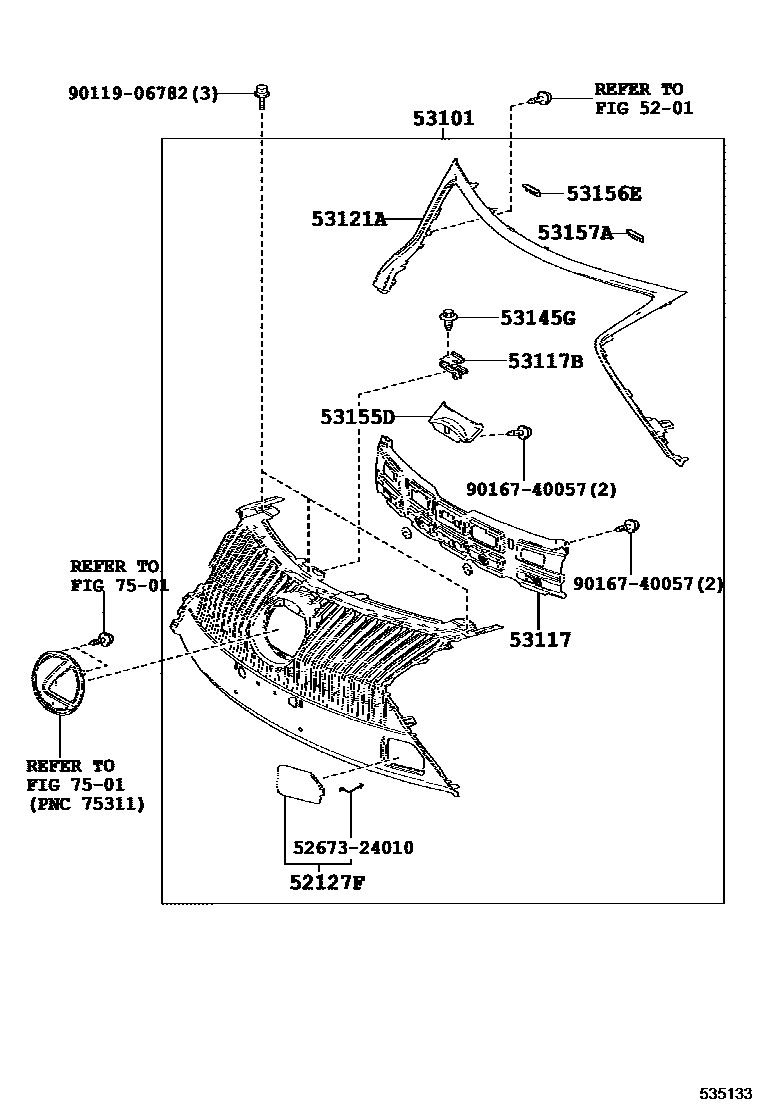

RADIATOR GRILLE

0001 1 0002 1F SPORT 0003 1 0004 1F SPORT 0005 1 0006 1F SPORT

5201

52127FCOVER, FRONT BUMPER HOLE

main52128-24060iGSC1#201409-201609

main52128-24100iASC10,GSC1#201609-201810

53101GRILLE SUB-ASSY, RADIATOR

main53101-24050iGSC1#201409-201609

PLATED

main53101-24220iASC10,GSC1#201609-201711

PLATED

main53101-24260iASC10,GSC1#201711-201810

PLATED

53117BRACKET, RADIATOR GRILLE SUPPORT, RH

main53117-24030iGSC1#201409-201810

53117BBRACKET, RADIATOR GRILLE, LOWER

main52147-24040iGSC1#201409-201711

main52147-24070iASC10,GSC1#201711-201810

53121AMOULDING, RADIATOR GRILLE

main53121-24020iGSC1#201409-201810

main53121-24060iASC10,GSC1#201810

53145GCLIP, RADIATOR GRILLE

main90467-05063-C0iGSC1#201409-201810

BLACK

sub90467-05063

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-24010iGSC1#201409-201711

main53155-24040iASC10,GSC1#201711-201810

53156ESEAL, RADIATOR GRILLE, NO.2

main53156-24010iGSC1#201409-201810

53157ASEAL, RADIATOR GRILLE, NO.3

main53157-24010iGSC1#201409-201810

7501

5267324010ARM, FRONT BUMPER, NO.1

main52673-24010

9011906782

main90119-06782

9016740057

main90167-40057

14 parts on this diagram · 6 diagrams in section
