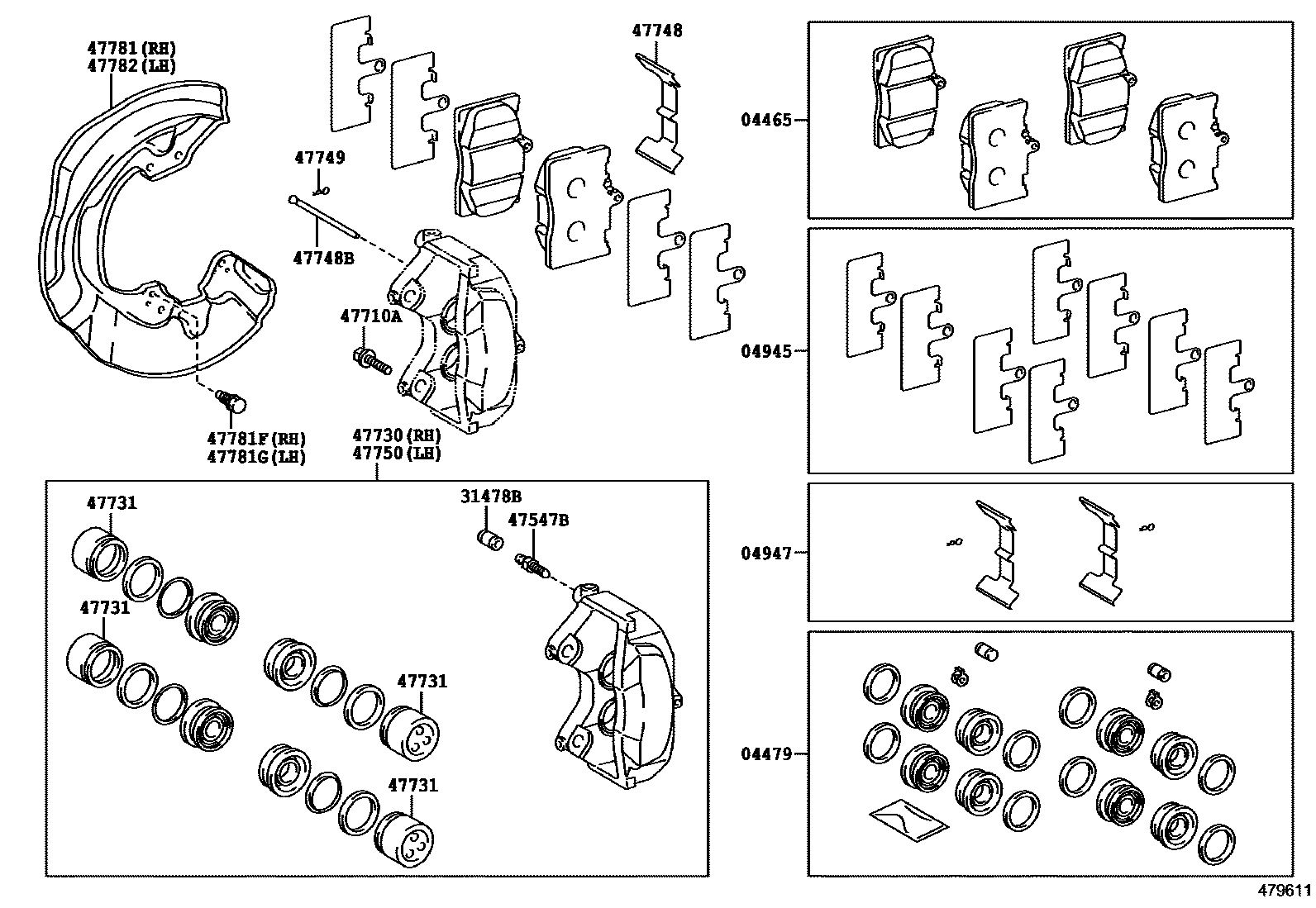

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 118INCHES DISC 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-24050iASC10,GSC1#202009

MARK ADVICS VC115

main04465-30510iASC10,GSC1#201409-202009

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-50130iGSC1#201409-201810

sub04478-22040

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-24020iASC10,GSC1#202009

main04945-30370iGSC1#201409-202009

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iGSC1#201409-201810

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGSC1#201409-201810

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010iGSC1#201409-201810

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iGSC1#201409-201810

*12-1.25PX45-30

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iGSC1#201409-201810

47731PISTON, FRONT DISC BRAKE

main47731-50070iGSC1#201409-201810

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-22460iGSC1#201409-201810

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50020iASC10,GSC1#201409-201810

47749CLIP, PIN HOLD

main47749-50030iGSC1#201409-201810

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iGSC1#201409-201810

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-30240iGSC15,16201409-201810

main47781-30260iGSC10201409-201810

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06508iGSC10201409-201810

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06508iASC10,GSC10201409-201810

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-30240iGSC15201409-201810

main47782-30260iGSC10201409-201810

17 parts on this diagram · 3 diagrams in section
