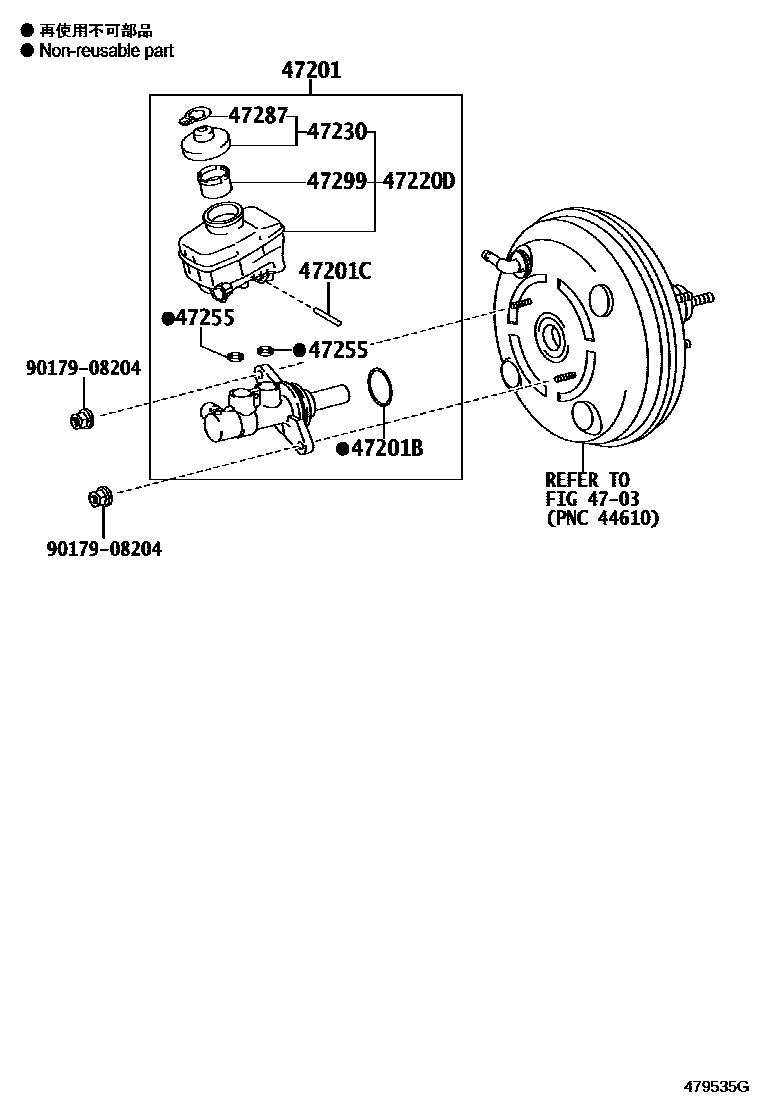

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30822iGSC1#201409-201711

main47201-30870iASC10,GSC1#201711-202111

main47201-53290iASC10201510-201711

main47201-53320iASC10,GSC1#202111

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGSC1#201409-201810

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGSC1#201409-201810

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-30220iASC10,GSC1#201409-201810

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iASC10,GSC1#201409-201810

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGSC1#201409-201810

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iASC10,GSC1#202009

main47287-20010iGSC1#201409-202009

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGSC1#201409-201810

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
