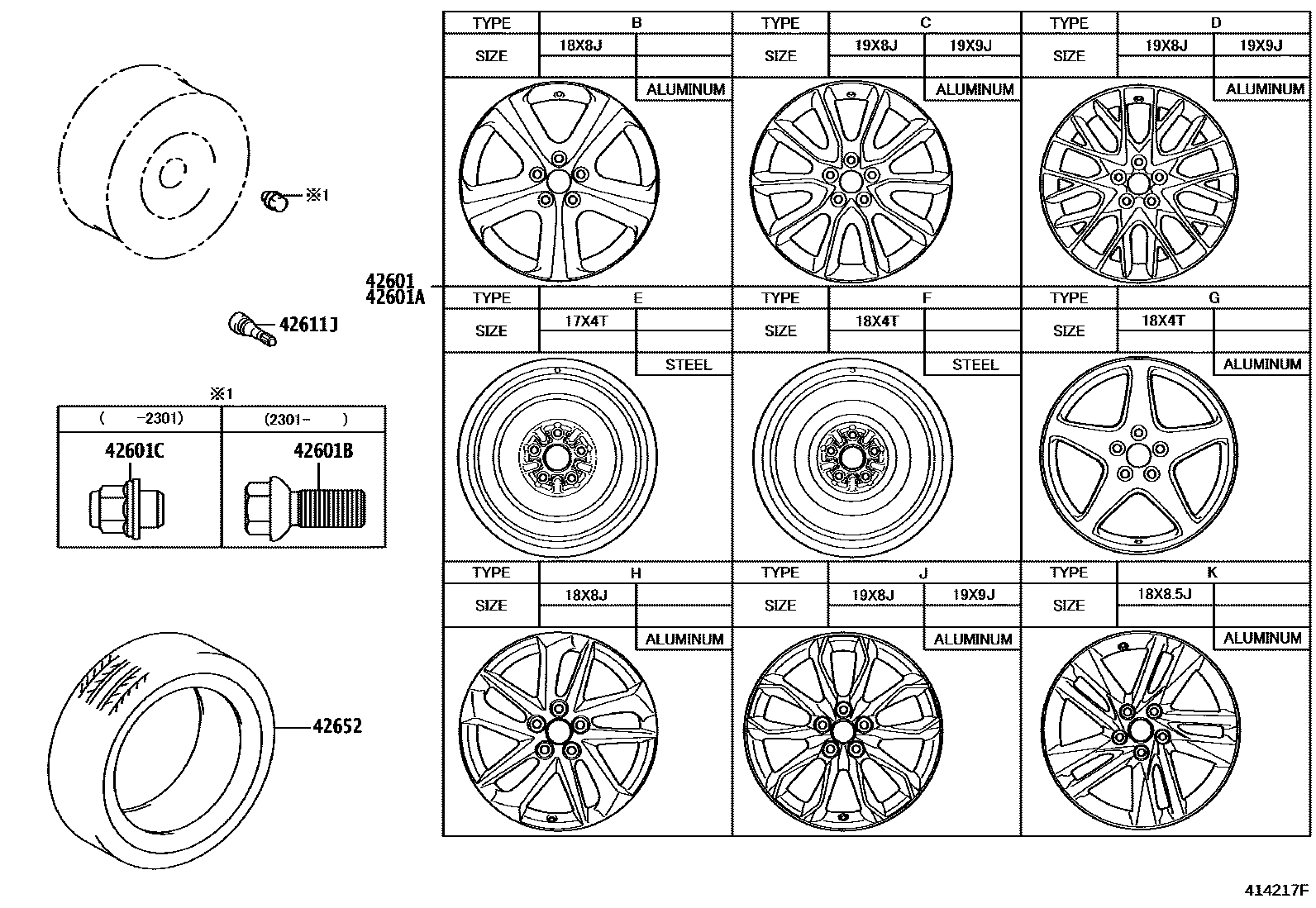

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-24550i201409-201609

18X8J, #,TYPE B:REFER ILLUST.

main42611-24560i201409-201609

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/45R18 8.0J SUMMER TIRE,TYPE B:REFER ILLUST.

sub42611-24561

main42611-24560i201409-201609

18X8J, #,CANADA SPEC,TYPE B:REFER ILLUST.

sub42611-24561

main42611-24570i201409-201609

19X8J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19 8.0J ALL SEASON TIRE,TYPE C:REFERILLUST.

sub42611-24580

main42611-24570i201409-201609

19X8J, #,TIRE & DISC WHEEL-235/40R19 8.0J ALL SEASON TIRE,TYPE C:REFER ILLUST.

sub42611-24580

main42611-24570i201409-201609

19X8J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,FR,T/P C:SEEILLUST

sub42611-24580

main42611-24570i201409-201609

19X8J, #,TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,FR,T/P C:SEE ILLUST

sub42611-24580

main42611-24580i201409-201609

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19 8.0J ALL SEASON TIRE,TYPE C:REFERILLUST.

main42611-24580i201409-201609

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,FR,T/P C:SEE ILLUST

main42611-24590i201409-201609

19X9J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,RR,T/P C:SEEILLUST

sub42611-24600

main42611-24590i201409-201609

19X9J, #,TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,RR,T/P C:SEE ILLUST

sub42611-24600

main42611-24600i201409-201609

19X9J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,RR,T/P C:SEE ILLUST

main42611-24610i201409-201810

19X8J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT),FR,T/P D:SEE ILLUST

sub42611-24620

main42611-24610i201409-201810

19X8J, #,TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT),FR,T/P D:SEE ILLUST

sub42611-24620

main42611-24610i201409-201510

19X8J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19 8.0J ALL SEAZON TIRE(F-SPORT),TYPED:REFER ILLUST.

sub42611-24620

main42611-24610i201409-201510

19X8J, #,TIRE & DISC WHEEL-235/40R19 8.0J ALL SEAZON TIRE(F-SPORT),TYPE D:REFER ILLUST.

sub42611-24620

main42611-24610i201510-201810

19X8J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19 8.0J ALL SEASON TIRE(F-SPORT),TYPED:REFER ILLUST.

sub42611-24620

main42611-24610i201510-201810

19X8J, #,TIRE & DISC WHEEL-235/40R19 8.0J ALL SEASON TIRE(F-SPORT),TYPE D:REFER ILLUST.

sub42611-24620

main42611-24620i201409-201510

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19 8.0J ALL SEAZON TIRE(F-SPORT),TYPE D:REFER ILLUST.

main42611-24620i201409-201706

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT),FR,T/P D:SEE ILLUST

main42611-24620i201510-201810

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19 8.0J ALL SEASON TIRE(F-SPORT),TYPE D:REFER ILLUST.

main42611-24630i201409-201810

19X9J, #,TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT),RR,T/P D:SEE ILLUST

sub42611-24640

main42611-24630i201409-201810

19X9J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT),RR,T/P D:SEE ILLUST

sub42611-24640

main42611-24640i201409-201706

19X9J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT),RR,T/P D:SEE ILLUST

main42611-24650i202009-202301

19X8J, #,TIRE & DISC WHEEL-235/40R19,8.0J,ALL SEASON(F-SPORT),BLACK,TYPE J:REFER ILLUST.

main42611-24650i202009-202301

19X8J, #,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT), BLACK,TYPE J:REFER ILLUST.

main42611-24660i202009-202301

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19,8.0J,ALL SEASON(F-SPORT),BLACK,TYPE H:REFER ILLUST.

main42611-24670i202009-202301

19X9J, #,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT), BLACK,TYPE J:REFER ILLUST.

main42611-24690i201802-201810

19X8J, #,TIRE & DISC WHEEL-235/40R19+265/35R19(FOR BLACK EDITION),TYPE D:REFER ILLUST.

main42611-24690i201802-201810

19X8J, #,TIRE & DISC WHEEL-235/40R19 8.0J(FOR BLACK EDITION),TYPE D:REFER ILLUST.

main42611-24700i201802-201810

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19 8.0J(FOR BLACK EDITION),TYPE D:REFER ILLUST.

main42611-24710i201802-201810

19X9J, #,TIRE & DISC WHEEL-235/40R19+265/35R19(FOR BLACK EDITION),TYPE D:REFER ILLUST.

main42611-24730i201810-202301

18X8J, #,TYPE H:REFER ILLUST.

main42611-24740i201810-202301

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/45R18, 8.0J, SUMMER TIRE,TYPE H:REFER ILLUST.

main42611-24740i201810-202301

18X8J, #,CANADA SPEC,TYPE H:REFER ILLUST.

main42611-24800i201609-201810

18X8J, #,TYPE B:REFER ILLUST.

main42611-24810i201609-201810

18X8J, #,CANADA SPEC,TYPE B:REFER ILLUST.

sub42611-24811

main42611-24810i201609-201810

18X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/45R18 8.0J SUMMER TIRE,TYPE B:REFER ILLUST.

sub42611-24811

main42611-24820i201609-201810

19X8J, #,TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,FR,T/P C:SEE ILLUST

main42611-24820i201609-201810

19X8J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,FR,T/P C:SEEILLUST

main42611-24820i201609-201810

19X8J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19 8.0J ALL SEASON TIRE,TYPE C:REFERILLUST.

main42611-24820i201609-201810

19X8J, #,TIRE & DISC WHEEL-235/40R19 8.0J ALL SEASON TIRE,TYPE C:REFER ILLUST.

main42611-24830i201609-201810

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19 8.0J ALL SEASON TIRE,TYPE C:REFERILLUST.

main42611-24830i201609-201706

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,FR,T/P C:SEE ILLUST

main42611-24840i201609-201810

19X9J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,RR,T/P C:SEEILLUST

main42611-24840i201609-201810

19X9J, #,TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,RR,T/P C:SEE ILLUST

main42611-24850i201609-201706

19X9J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19 SUMMER TIRE,RR,T/P C:SEE ILLUST

main42611-53630i202301

18X8.5J,#,TYPE K:REFER ILLUST.

main42611-53640i202301

18X8.5J,#,CANADA SPEC&TIRE & DISC WHEEL-235/45R18, 8.0J, SUMMER TIRE,TYPE K:REFERILLUST.

main42611-53640i202301

18X8.5J,#,CANADA SPEC,TYPE K:REFER ILLUST.

main42611-53650i202301

19X8.5J,#,TIRE & DISC WHEEL-235/40R19, 8.0J, ALL SEASON TIRE,TYPE L:REFER ILLUST.

main42611-53650i202301

19X8.5J,#,TIRE & DISC WHEEL-235/40R19, 8.0J, SUMMER TIRE,TYPE L:REFER ILLUST.

main42611-53660i202301

19X8.5J,#,CANADA SPEC&TIRE & DISC WHEEL-235/40R19, 8.0J, ALL SEASON TIRE,TYPE L:REFER ILLUST.

main42611-53710i202301-202501

19X8.5J,#,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT) & ENKEI,FR,T/P M:REF. ILLUST

main42611-53710i202301-202501

19X8.5J,#,TIRE & DISC WHEEL-235/40R19,8.0J,ALL SEASON(F-SPORT)&ENKEI,FR,T/P M:REF.ILLUST

main42611-53720i202301-202501

19X8.5J,#,CANADA SPEC&TIRE & DISC WHEEL-235/40R19,8.0J,ALL SEASON(F-SPORT)&ENKEI

main42611-53730i202301-202501

19X9.5J,#,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT) & ENKEI,RR,T/P M:REF. ILLUST

main42611-53730i202301-202501

19X9.5J,#,TIRE & DISC WHEEL-235/40R19,8.0J,ALL SEASON(F-SPORT)&ENKEI,RR,T/P M:REF.ILLUST

main42611-53740i202301-202501

19X9.5J,#,CANADA SPEC&TIRE & DISC WHEEL-235/40R19,8.0J,ALL SEASON(F-SPORT)&ENKEI

main4261A-24010i201810-202301

19X8J, #,TIRE & DISC WHEEL-235/40R19, 8.0J, ALL SEASON(F-SPORT),TYPE J:REFER ILLUST.

main4261A-24010i201810-202009

19X8J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),FR,T/P J:SEEILLUST

main4261A-24010i201810-202301

19X8J, #,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),FR,T/P J:SEE ILLUST

main4261A-24100i201810-202301

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19, 8.0J, ALL SEASON(F-SPORT),TYPE J:REFER ILLUST.

main4261A-24110i201810-202301

19X9J, #,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),RR,T/P J:SEE ILLUST

main4261A-24110i201810-202009

19X9J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),RR,T/P J:SEEILLUST

main4261A-24130i201810-202301

19X8J, #,TIRE & DISC WHEEL-235/40R19 & 265/35R19, SUMMER TIRE,FR,T/P D:SEE ILLUST

main4261A-24130i201810-202301

19X8J, #,TIRE & DISC WHEEL-235/40R19, 8.0J, ALL SEASON TIRE,TYPE D:REFER ILLUST.

main4261A-24130i201810-202009

19X8J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19, SUMMER TIRE,FR,T/P D:SEE ILLUST

main4261A-24140i201810-202301

19X8J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19, 8.0J, ALL SEASON TIRE,TYPE D:REFER ILLUST.

main4261A-24150i201810-202301

19X9J, #,TIRE & DISC WHEEL-235/40R19 & 265/35R19, SUMMER TIRE,RR,T/P D:SEE ILLUST

main4261A-24150i201810-202009

19X9J, #,KOREA SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19, SUMMER TIRE,RR,T/P D:SEE ILLUST

main4261A-53580i202301

19X8.5J, #,TIRE & DISC WHEEL-235/40R19, 8.0J, ALL SEASON(F-SPORT),FR,T/P J:SEE ILLUST

main4261A-53580i202301

19X8.5J, #,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),FR,T/P J:SEE ILLUST

main4261A-53590i202301

19X8.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19, 8.0J, ALL SEASON(F-SPORT),FR,T/P J:SEE ILLUST

main4261A-53600i202301

19X9.5J, #,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),RR,T/P J:SEE ILLUST

main4261A-53600i202301

19X9.5J, #,TIRE & DISC WHEEL-235/40R19, 8.0J, ALL SEASON(F-SPORT),RR,T/P J:SEE ILLUST

main4261A-53610i202301

19X9.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/40R19, 8.0J, ALL SEASON(F-SPORT),RR,T/P J:SEE ILLUST

42601AWHEEL, DISC (FOR SPARE)

main42611-30F30i201409-201612

18X4T,GUAM,PUERTO RICO SPEC,TYPE F:REFER ILLUST.

sub42611-30F31

main42611-30F31i201810-201908

18X4T,PUERTO RICO SPEC,TYPE F:REFER ILLUST.

sub42611-30F32

main42611-30F31i201810-201908

18X4T,GUAM SPEC,TYPE F:REFER ILLUST.

sub42611-30F32

main42611-30F31i201701-201810

18X4T,GUAM,PUERTO RICO SPEC,TYPE F:REFER ILLUST.

sub42611-30F32

main42611-30F32i201909-202301

18X4T,PUERTO RICO SPEC,TYPE F:REFER ILLUST.

main42611-30F32i201909-202301

18X4T,GUAM SPEC,TYPE F:REFER ILLUST.

main42611-30F40i201409-201810

18X4T,GUAM,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201409-201510

18X4T,GUAM,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/40R19 8.0J ALL SEAZON TIRE(F-SPORT),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201409-201810

18X4T,TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201409-201510

18X4T,TIRE & DISC WHEEL-235/40R19 8.0J ALL SEAZON TIRE(F-SPORT),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201510-201810

18X4T,GUAM,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/40R19 8.0J ALL SEASON TIRE(F-SPORT),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201510-201810

18X4T,TIRE & DISC WHEEL-235/40R19 8.0J ALL SEASON TIRE(F-SPORT),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201802-201810

18X4T,TIRE & DISC WHEEL-235/40R19+265/35R19(FOR BLACK EDITION),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201802-201810

18X4T,TIRE & DISC WHEEL-235/40R19 8.0J(FOR BLACK EDITION),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201802-201810

18X4T,GUAM,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19(FOR BLACK EDITION),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201802-201810

18X4T,GUAM,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/40R19 8.0J(FOR BLACK EDITION),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201810-201908

18X4T,GUAM SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201810-201908

18X4T,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F40i201810-201908

18X4T,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),TYPE G:REFER ILLUST.

sub42611-30F41

main42611-30F41i201909-202301

18X4T,GUAM SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),TYPE G:REFER ILLUST.

main42611-30F41i201909-202301

18X4T,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),TYPE G:REFER ILLUST.

main42611-30F41i201909-202301

18X4T,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),TYPE G:REFER ILLUST.

main42611-30F41i202009-202301

18X4T,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT), BLACK,TYPE G:REFER ILLUST.

main42611-30F41i202009-202301

18X4T,GUAM SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT), BLACK,TYPE G:REFER ILLUST.

main42611-30F41i202009-202301

18X4T,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT), BLACK,TYPE G:REFER ILLUST.

main42611-53320i201409-201908

17X4T,TYPE E:REFER ILLUST.

sub42611-53321

main42611-53321i201909-202301

17X4T,TYPE E:REFER ILLUST.

main4261B-53010i202301

17X4T,TYPE F:REFER ILLUST.

main4261B-53020i202301

18X4T,GUAM SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),TYPE G:REFER ILLUST.

main4261B-53020i202301

18X4T,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),TYPE G:REFER ILLUST.

main4261B-53020i202301

18X4T,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT),TYPE G:REFER ILLUST.

main4261B-53020i202301-202501

18X4T,GUAM SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT) & ENKEI,TYPE G:REFER ILLUST.

main4261B-53020i202301-202501

18X4T,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT) & ENKEI,TYPE G:REFER ILLUST.

main4261B-53020i202301-202501

18X4T,TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT) & ENKEI,TYPE G:REFER ILLUST.

42601BBOLT, HUB (FOR AXLE)

main90942-02103i202301

42601CNUT, HUB (FOR AXLE)

main90942-01033i201409-202301

main90942-01115i201802-201810

TIRE & DISC WHEEL-235/40R19+265/35R19(FOR BLACK EDITION)

main90942-01115i201802-201810

TIRE & DISC WHEEL-235/40R19 8.0J(FOR BLACK EDITION)

main90942-01115i202009-202301

TIRE & DISC WHEEL-235/40R19,8.0J,ALL SEASON(F-SPORT),BLACK

main90942-01115i202009-202301

TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT), BLACK

main90942-01115i201810-202301

TIRE & DISC WHEEL-235/40R19, 8.0J, ALL SEASON(F-SPORT)

main90942-01115i201810-202301

TIRE & DISC WHEEL-235/40R19 & 265/35R19(F-SPORT)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201409-201810

42652TIRE

main42652-30F61i201409-201510

235/40R19,*D/L,KOREA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT)

main42652-30G11i201409-201411

265/35R19,*B/S,KOREA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT)

main42652-30G22i201409-201510

265/35R19,*D/L,KOREA SPEC&TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT)

6 parts on this diagram · 4 diagrams in section
