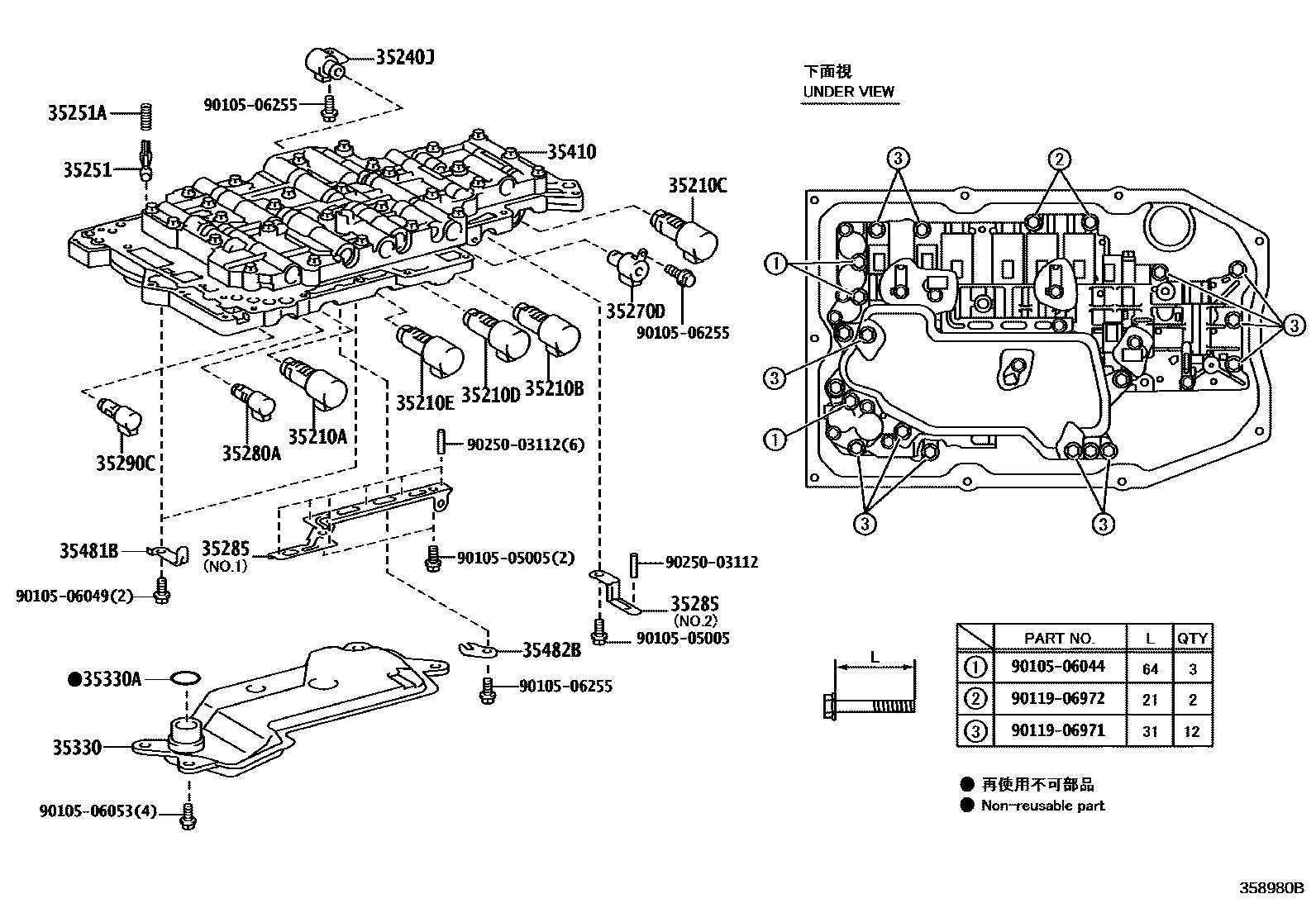

VALVE BODY & OIL STRAINER (ATM)
35210SOLENOID ASSY, CLUTCH CONTROL, NO.1
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
NO.4:REFER ILLUST.
35240JVALVE, SOLENOID(SR)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35270DVALVE, SOLENOID(SL)
35280SOLENOID ASSY, LOCK UP CONTROL
35285PLATE, SOLENOID LOCK
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35290CVALVE, SOLENOID(SLT)
35330STRAINER ASSY, VALVE BODY OIL
35330ARING, O (FOR OIL STRAINER)
35410BODY ASSY, TRANSMISSION VALVE
35481BCLAMP, VALVE BODY WIRE HARNESS
9010505005
main90105-05005
9010506044
main90105-06044
9010506049
main90105-06049
9010506053
main90105-06053
9010506255
main90105-06255
9011906971
main90119-06971
9011906972
main90119-06972
9025003112
main90250-03112
29 parts on this diagram · 6 diagrams in section
