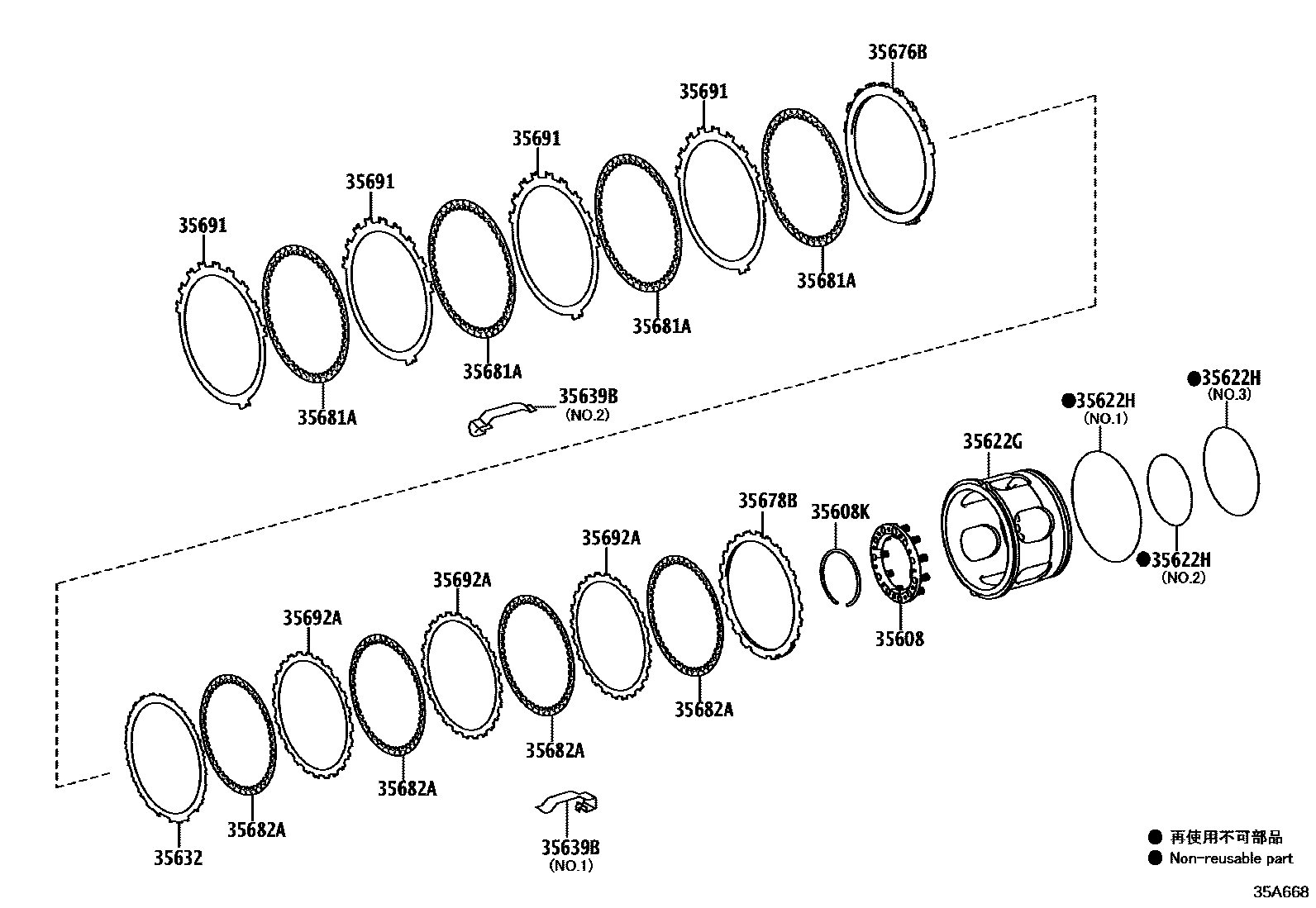

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35622HRING, O (FOR BRAKE PISTON NO.2)
NO.2:REFER ILLUST.
OUTER
INNER
NO.3:REFER ILLUST.
NO.1:REFER ILLUST.
35632PLATE, BRAKE
35639BSPRING, BRAKE PLATE STOPPER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35676BFLANGE, BRAKE, NO.1
T=4.5,MARK 0
T=4.6,MARK 1
T=4.7,MARK 2
T=4.8,MARK 3
T=4.9,MARK 4
T=5.0,MARK 5
T=5.1,MARK 6
T=5.2,MARK 7
T=5.3,MARK 8
T=2.0,MARK 0
T=2.2,MARK 1
T=2.4,MARK 2
T=2.6,MARK 3
35678BFLANGE, BRAKE, NO.2
T=2.0,MARK 0
T=2.1,MARK 1
T=2.2,MARK 2
T=2.3,MARK 3
T=2.4,MARK 4
T=2.5,MARK 5
T=2.6,MARK 6
T=2.7,MARK 7
T=2.8,MARK 8
T=4.6,NO.1:REFER ILLUST.
T=2.0 MARK 0,NO.2:REFER ILLUST.
T=2.1 MARK 1,NO.2:REFER ILLUST.
T=2.2 MARK 2,NO.2:REFER ILLUST.
T=2.3 MARK 3,NO.2:REFER ILLUST.
T=2.4 MARK 4,NO.2:REFER ILLUST.
T=2.5 MARK 5,NO.2:REFER ILLUST.
T=2.6 MARK 6,NO.2:REFER ILLUST.
T=2.7 MARK 7,NO.2:REFER ILLUST.
12 parts on this diagram · 2 diagrams in section
