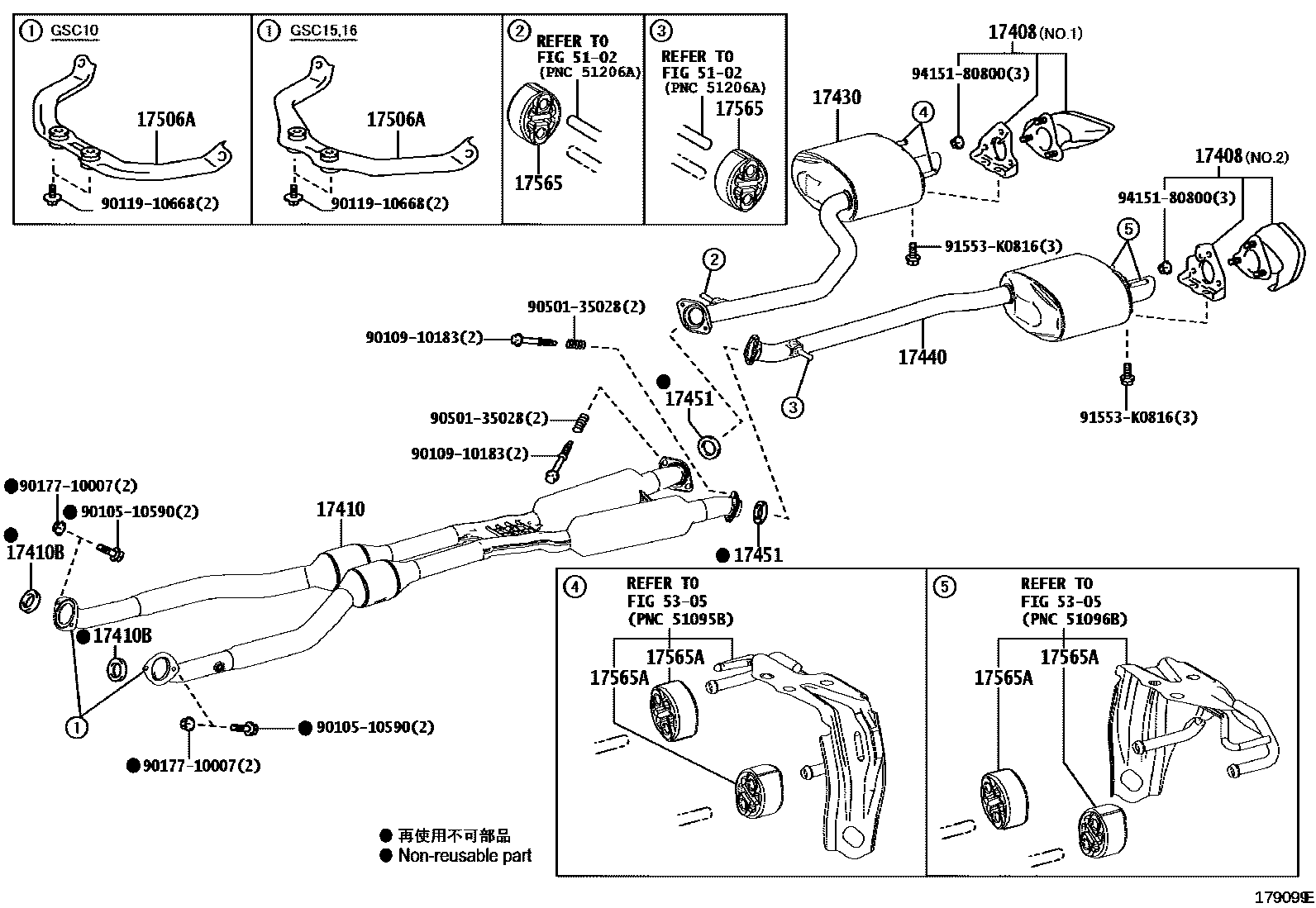

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17440PIPE, EXHAUST TAIL, LH
17451GASKET, EXHAUST PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
5102
5305
9010510590
9010910183
9011910668
9017710007
9050135028
91553K0816
9415180800
18 parts on this diagram · 2 diagrams in section
