CRANKSHAFT & PISTON

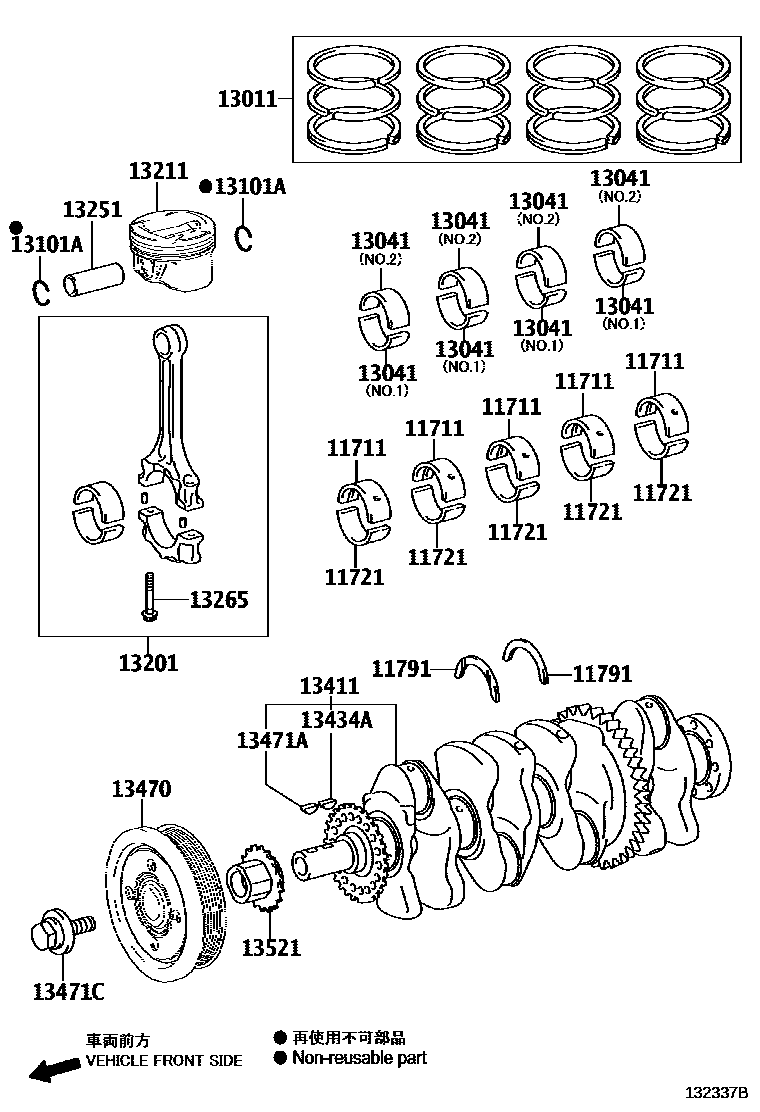

Parts diagram
11711BEARING, CRANKSHAFT
main11071-31040-01i201409-201502
MARK1,NO.2,REFER R/M
sub11071-31060
main11071-31040-02i201409-201502
MARK2,NO.2,REFER R/M
sub11071-31060
main11071-31040-03i201409-201502
MARK3,NO.2,REFER R/M
sub11071-31060
main11071-31040-04i201409-201502
MARK4,NO.2,REFER R/M
sub11071-31060
main11071-31040-05i201409-201502
MARK5,NO.2,REFER R/M
sub11071-31060
main11071-31060-01i201503-201510
MARK 1,NO.2,REFER R/M
sub11071-31060
main11071-31060-02i201503-201510
MARK 2,NO.2,REFER R/M
sub11071-31060
main11071-31060-03i201503-201510
MARK 3,NO.2,REFER R/M
sub11071-31060
main11071-31060-04i201503-201510
MARK 4,NO.2,REFER R/M
sub11071-31060
main11071-31060-05i201503-201510
MARK 5,NO.2,REFER R/M
sub11071-31060
main11071-31060-A1i201510-201810
MARK UPPER 1 LOWER 1,NO.2,REFER R/M
sub11071-31060
main11071-31060-A2i201711-201810
MARK UPPER 1 LOWER 2,NO.2,REFER R/M
sub11071-31060
main11071-31060-B2i201510-201810
MARK UPPER 2 LOWER 2,NO.2,REFER R/M
sub11071-31060
main11071-31060-B3i201711-201810
MARK UPPER 2 LOWER 3,NO.2,REFER R/M
sub11071-31060
main11071-31060-C3i201510-201810
MARK UPPER 3 LOWER 3,NO.2,REFER R/M
sub11071-31060
main11071-31060-C4i201711-201810
MARK UPPER 3 LOWER 4,NO.2,REFER R/M
sub11071-31060
main11071-31060-D4i201510-201810
MARK UPPER 4 LOWER 4,NO.2,REFER R/M
sub11071-31060
main11071-31060-D5i201711-201810
MARK UPPER 4 LOWER 5,NO.2,REFER R/M
sub11071-31060
main11071-31060-E5i201510-201810
MARK UPPER 5 LOWER 5,NO.2,REFER R/M
sub11071-31060
main11701-31070-01i201409-201502
MARK1,NO.1,REFER R/M
sub11701-31100
main11701-31070-02i201409-201502
MARK2,NO.1,REFER R/M
sub11701-31100
main11701-31070-03i201409-201502
MARK3,NO.1,REFER R/M
sub11701-31100
main11701-31070-04i201409-201502
MARK4,NO.1,REFER R/M
sub11701-31100
main11701-31070-05i201409-201502
MARK5,NO.1,REFER R/M
sub11701-31100
main11701-31100-01i201503-201510
MARK 1,NO.1,REFER R/M
sub11701-31100
main11701-31100-02i201503-201510
MARK 2,NO.1,REFER R/M
sub11701-31100
main11701-31100-03i201503-201510
MARK 3,NO.1,REFER R/M
sub11701-31100
main11701-31100-04i201503-201510
MARK 4,NO.1,REFER R/M
sub11701-31100
main11701-31100-05i201503-201510
MARK 5,NO.1,REFER R/M
sub11701-31100
main11701-31100-A1i201510-201810
MARK UPPER 1 LOWER 1,NO.1,REFER R/M
sub11701-31100
main11701-31100-A2i201711-201810
MARK UPPER 1 LOWER 2,NO.1,REFER R/M
sub11701-31100
main11701-31100-B2i201510-201810
MARK UPPER 2 LOWER 2,NO.1,REFER R/M
sub11701-31100
main11701-31100-B3i201711-201810
MARK UPPER 2 LOWER 3,NO.1,REFER R/M
sub11701-31100
main11701-31100-C3i201510-201810
MARK UPPER 3 LOWER 3,NO.1,REFER R/M
sub11701-31100
main11701-31100-C4i201711-201810
MARK UPPER 3 LOWER 4,NO.1,REFER R/M
sub11701-31100
main11701-31100-D4i201510-201810
MARK UPPER 4 LOWER 4,NO.1,REFER R/M
sub11701-31100
main11701-31100-D5i201711-201810
MARK UPPER 4 LOWER 5,NO.1,REFER R/M
sub11701-31100
main11701-31100-E5i201510-201810
MARK UPPER 5 LOWER 5,NO.1,REFER R/M
sub11701-31100
main11711-36050-01i201510-201810
MARK 1,REFER REPAIR MANUAL
main11711-36050-02i201510-201810
MARK 2,REFER REPAIR MANUAL
main11711-36050-03i201510-201810
MARK 3,REFER REPAIR MANUAL
main11711-36050-04i201510-201810
MARK 4,REFER REPAIR MANUAL
11721BEARING, CRANKSHAFT, NO.2
main11721-36050-01i201510-201810
MARK 1,REFER REPAIR MANUAL
main11721-36050-02i201510-201810
MARK 2,REFER REPAIR MANUAL
main11721-36050-03i201510-201810
MARK 3,REFER REPAIR MANUAL
main11721-36050-04i201510-201810
MARK 4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-36020i201510-201810
STD
13011RING SET, PISTON
main13011-31142i201409-201410
STD
sub13011-31143
main13011-31143i201411-201711
STD
main13011-31290i201711-201810
STD
main13011-36100i201510-201704
STD
sub13011-36101
main13011-36101i201705-201810
STD
13041BEARING, CONNECTING ROD
main13041-31080-01i201409-201502
MARK1,REFER REPAIR MANUAL
sub13041-31100
main13041-31080-02i201409-201502
MARK2,REFER REPAIR MANUAL
sub13041-31100
main13041-31080-03i201409-201502
MARK3,REFER REPAIR MANUAL
sub13041-31100
main13041-31080-04i201409-201502
MARK4,REFER REPAIR MANUAL
sub13041-31100
main13041-31100-01i201503-201711
MARK 1,REFER REPAIR MANUAL
main13041-31100-01i201711-201810
MARK 1
main13041-31100-02i201503-201711
MARK 2,REFER REPAIR MANUAL
main13041-31100-02i201711-201810
MARK 2
main13041-31100-03i201503-201711
MARK 3,REFER REPAIR MANUAL
main13041-31100-03i201711-201810
MARK 3
main13041-31100-04i201503-201711
MARK 4,REFER REPAIR MANUAL
main13041-31100-04i201711-201810
MARK 4
main13281-36021-01i201510-201810
MARK 1,NO.1,REFER R/M
main13281-36021-02i201510-201810
MARK 2,NO.1,REFER R/M
main13281-36021-03i201510-201810
MARK 3,NO.1,REFER R/M
main13281-36030-01i201510-201810
MARK 1,NO.2,REFER R/M
main13281-36030-02i201510-201810
MARK 2,NO.2,REFER R/M
main13281-36030-03i201510-201810
MARK 3,NO.2,REFER R/M
13101PISTON SUB-ASSY, W/PIN
main13101-31140-A0i201409-201711
STD,MARK A,REFER REPAIR MANUAL
main13101-31140-B0i201409-201711
STD,MARK B,REFER REPAIR MANUAL
main13101-31140-C0i201409-201711
STD,MARK C,REFER REPAIR MANUAL
main13101-31171-A0i201711-201810
STD,MARK A,RH BANK
main13101-31171-B0i201711-201810
STD,MARK B,RH BANK
main13101-31171-C0i201711-201810
STD,MARK C,RH BANK
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i201409-201810
main90520-23067i201510-201810
13201ROD SUB-ASSY, CONNECTING
main13201-39166i201409-201503
sub13201-39167
main13201-39167i201503-201711
main13201-39275-A0i201510-201810
MARK A,REFER REPAIR MANUAL
sub13201-39315
main13201-39275-B0i201510-201810
MARK B,REFER REPAIR MANUAL
sub13201-39315
main13201-39275-C0i201510-201810
MARK C,REFER REPAIR MANUAL
sub13201-39315
main13201-39285-A0i201711-201810
MARK A
main13201-39285-B0i201711-201810
MARK B
main13201-39285-C0i201711-201810
MARK C
13211PISTON
main13211-36130-A0i201510-201810
MARK A,REFER REPAIR MANUAL
main13211-36130-B0i201510-201810
MARK B,REFER REPAIR MANUAL
main13211-36130-C0i201510-201810
MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
main13251-36020-A0i201510-201810
MARK A,REFER REPAIR MANUAL
main13251-36020-B0i201510-201810
MARK B,REFER REPAIR MANUAL
main13251-36020-C0i201510-201810
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
main13265-28010i201711-201901
sub13265-28020
main13265-28020i201901
main13265-31020i201409-201711
main13265-36010i201510-201810
13411CRANKSHAFT
main13401-31051i201409-201711
main13401-31070i202307
*497
sub13401-31080
main13401-31080i201711-202307
main13401-31080i202307
*714
main13401-36090i201510-201810
sub13401-36130
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30516i201510-201810
13470PULLEY ASSY, CRANKSHAFT
main13470-36050i201510-201810
13471PULLEY, CRANKSHAFT
main13470-31030i201409-201711
main13470-31060i201711-201810
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i201510-201810
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i201409-201412
main90119-16020i201501-201810
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-31041i201409-201711
main13521-31070i201711-201810
main13521-36010i201510-201810

18 parts on this diagram · 3 diagrams in section
