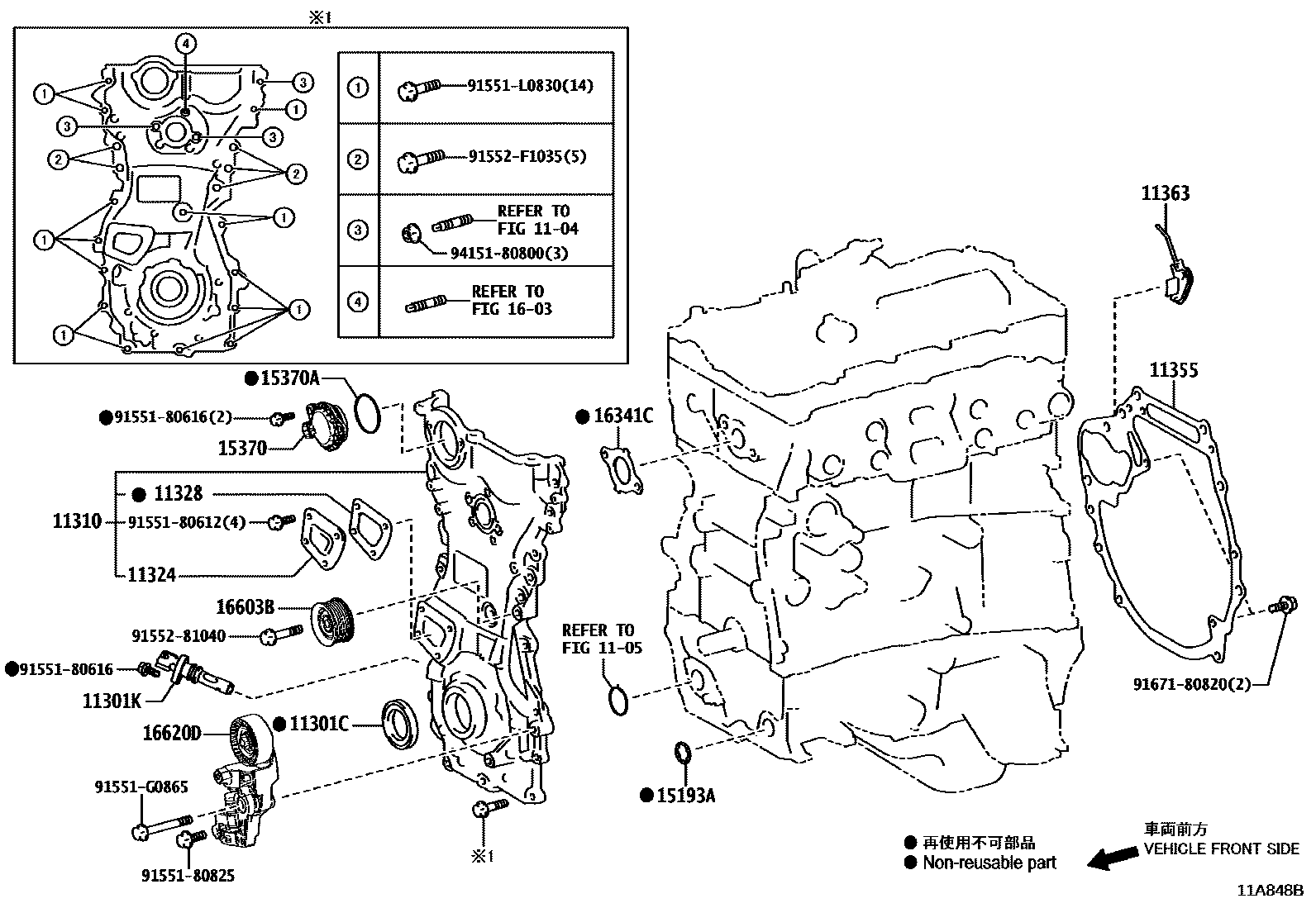

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

1104

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42045i2GRF..GSC1#¥520201409-201711

main90311-42051i8ARFTS..ASC10¥400201510-201810

main90311-42052i2GRF..GSC1#¥520201711-201810

11301KSENSOR, CRANK POSITION

main90919-05089i8ARFTS..ASC10¥4,130201510-201810

11310COVER ASSY, TIMING CHAIN

main11310-31080i2GRF..GSC1#¥31,900201711-201810

main11310-36080i8ARFTS..ASC10¥19,700201510-201810

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRF..GSC1#¥660201409-201810

main11324-36020i8ARFTS..ASC10¥660201510-201810

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRF..GSC1#¥400201409-201810

main11328-36030i8ARFTS..ASC10¥220201510-201810

11355PLATE, REAR END

main11355-36020i8ARFTS..ASC10¥2,190201510-201810

11363COVER, FLYWHEEL SIDE

main11363-36010i8ARFTS..ASC10¥510201510-201810

15193AGASKET, OIL PUMP

main15193-31020i2GRF..GSC1#¥220201711-201810

main15197-36010i8ARFTS..ASC10¥340201510-201810

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-36010i8ARFTS..ASC10¥5,500201510-201810

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-50003i8ARFTS..ASC10¥170201510-201810

1603

16341CGASKET, WATER OUTLET

main16341-36010i8ARFTS..ASC10¥440201510-201810

16603BPULLEY SUB-ASSY, IDLER

main16603-36010i8ARFTS..ASC10¥5,400201510-201810

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-36061i8ARFTS..ASC10¥10,100201510-201810

9155180612

main91551-80612¥60

9155180616

main91551-80616¥60

9155180825

main91551-80825¥80

91551G0865

main91551-G0865¥100

91551L0830

main91551-L0830¥80

9155281040

main91552-81040¥120

91552F1035

main91552-F1035¥120

9167180820

main91671-80820¥80

9415180800

main94151-80800¥80

25 parts on this diagram · 3 diagrams in section
