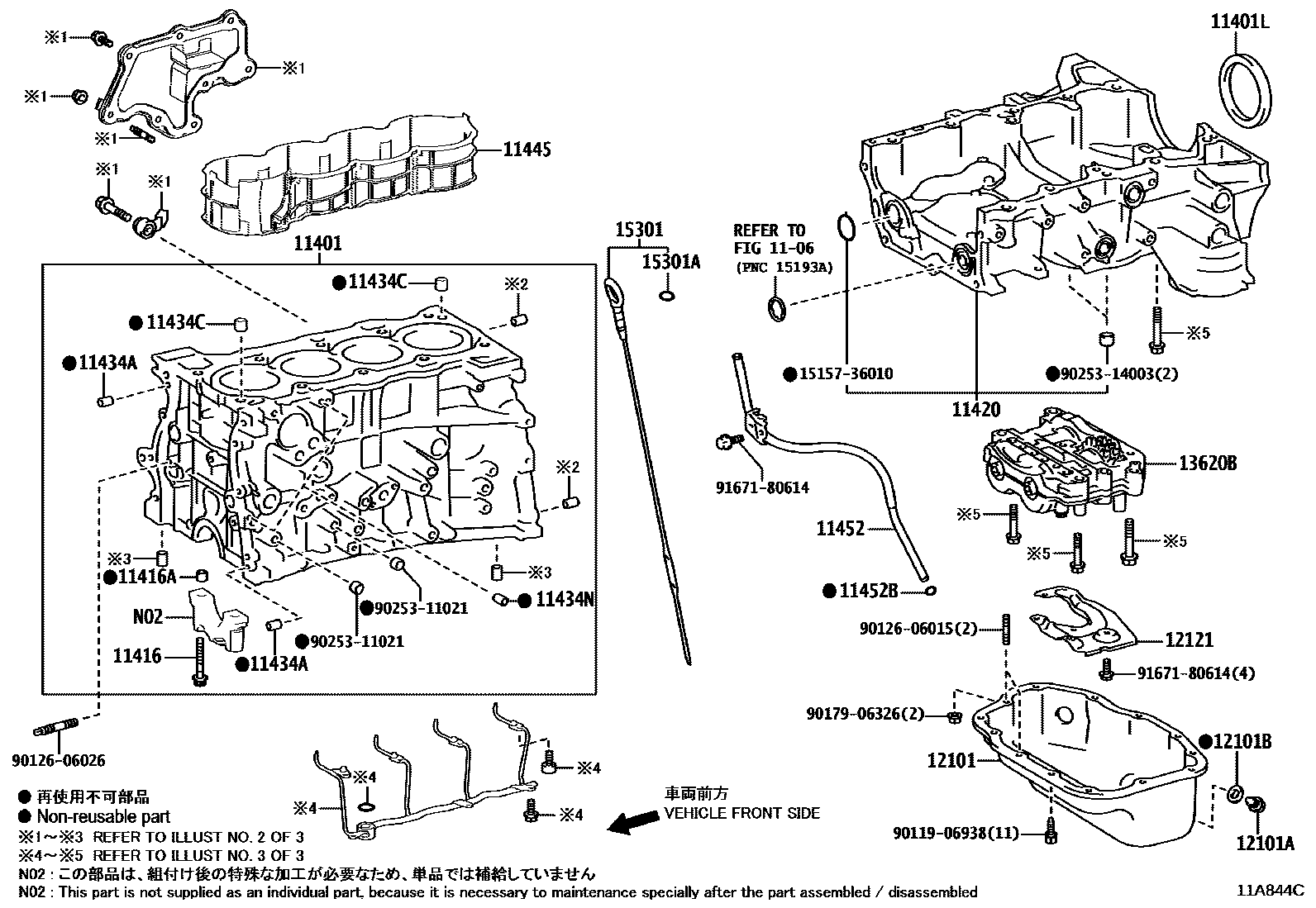

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

1106

11401BLOCK SUB-ASSY, CYLINDER

main11401-39776i2GRF..GSC1#201409-201411

sub11401-39777

sub13011-31143

main11401-39777i2GRF..GSC1#201411-201711

sub11401-39778

main11401-80842i2GRF..GSC1#201711-201911

sub11401-80863

main11401-80863i2GRF..GSC1#201911

main11410-39215i8ARFTS..ASC10201510-201810

11401LSEAL, ENGINE REAR OIL

main90311-89014i8ARFTS..ASC10201510-201810

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02153i2GRF..GSC1#201711-201810

main90910-02154i2GRF..GSC1#201409-201711

main90910-02197i8ARFTS..ASC10201709-201810

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-14003i8ARFTS..ASC10201510-201810

11420CRANKCASE ASSY, STIFFENING

main11420-36070i8ARFTS..ASC10201510-201810

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2GRF..GSC1#201409-201810

L=12,OD=4.0

main90250-06003i8ARFTS..ASC10201510-201810

L=14,OD=6

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i2GRF..GSC1#201409-201810

L=18,OD=8

main90253-15001i8ARFTS..ASC10201510-201810

L=14,OD=15

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i8ARFTS..ASC10201510-201810

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-31050i2GRF..GSC1#201711-201810

main11445-36040i8ARFTS..ASC10201510-201810

11452GUIDE, OIL LEVEL GAGE

main11452-31040i2GRF..GSC10201409-201810

main11452-31050i2GRF..GSC15,16201409-201810

main11452-36070i8ARFTS..ASC10201510-201810

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRF..GSC1#201409-201810

main96723-19010i8ARFTS..ASC10201510-201810

12101PAN SUB-ASSY, OIL

main12101-31101i2GRF..GSC10201409-201711

main12101-31110i2GRF..GSC15,16201409-201711

main12101-31241i2GRF..GSC10201711-201810

main12101-31250i2GRF..GSC15,16201711-201810

main12101-36100i8ARFTS..ASC10201510-201810

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GRF..GSC1#201409-201810

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2GRF..GSC1#201409-201810

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31080i2GRF..GSC1#201409-201810

main12121-36040i8ARFTS..ASC10201510-201810

13620BBALANCER ASSY, ENGINE

main13620-36030i8ARFTS..ASC10201510-201810

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31070i2GRF..GSC15,16201409-201810

main15301-31080i2GRF..GSC10201409-201810

main15301-36041i8ARFTS..ASC10201510-201810

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i8ARFTS..ASC10201409-201810

1515736010COVER, OIL STRAINER

main15157-36010

9011906938

main90119-06938

9012606015

main90126-06015

9012606026

main90126-06026

9017906326

main90179-06326

9025311021

main90253-11021

9025314003

main90253-14003

9167180614

main91671-80614

27 parts on this diagram · 11 diagrams in section
