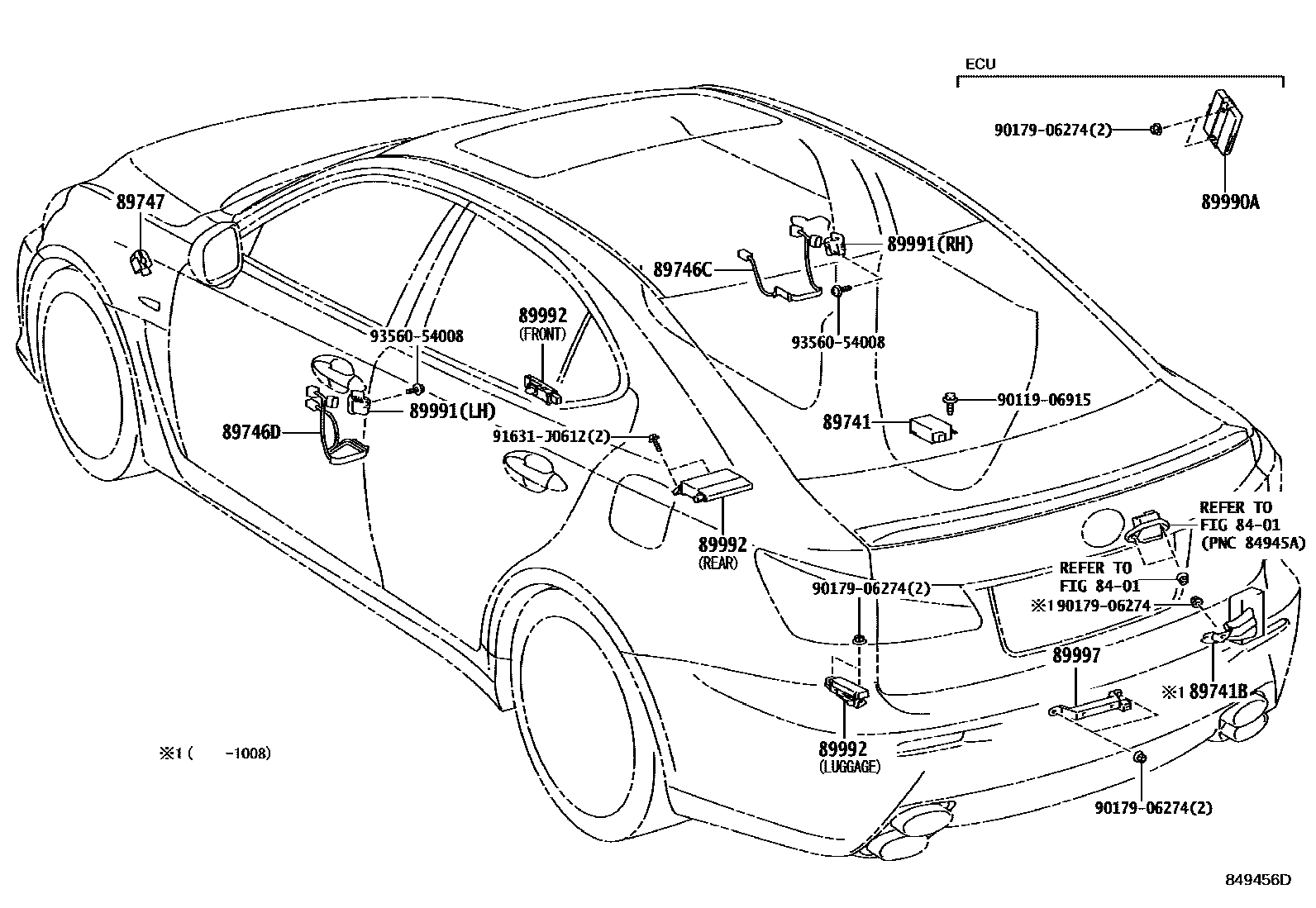

WIRELESS DOOR LOCK

8401

89741RECEIVER, DOOR CONTROL

main89740-53030iUSE20200712-201208

main89740-53370iUSE20201208-201408

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-53040iUSE20200712-201008

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-53010iUSE20200712

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-53020iUSE20200712

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iUSE20200712

89990ACOMPUTER ASSY, SMART KEY

main89990-53015iUSE20200712-200801

sub89990-53016

main89990-53016iUSE20200802-200808

sub89990-53230

main89990-53030iUSE20200808-200907

sub89990-53070

main89990-53070iUSE20200908-200909

sub89990-53071

main89990-53071iUSE20200909-201004

sub89990-53130

main89990-53130iUSE20201005-201103

sub89990-53170

main89990-53131iUSE20201108-201208

sub89990-53132

main89990-53132iUSE20201209-201309

sub89990-53370

main89990-53133iUSE20201309

main89990-53170iUSE20201103-201108

sub89990-53171

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iUSE20200712-201408

RH

main89991-30050iUSE20200712-201408

LH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30080iUSE20200908

REAR

main89992-30090iUSE20200712

FRONT

main89992-30100iUSE20200712-200907

REAR

main89992-53010iUSE20200712

LUGGAGE

89997ANTENNA, ELECTRICAL KEY

main89997-30070iUSE20201108

main89997-41010iUSE20200712-201108

9011906915

main90119-06915

9017906274

main90179-06274

91631J0612

main91631-J0612

9356054008

main93560-54008

14 parts on this diagram · 1 diagram in section
