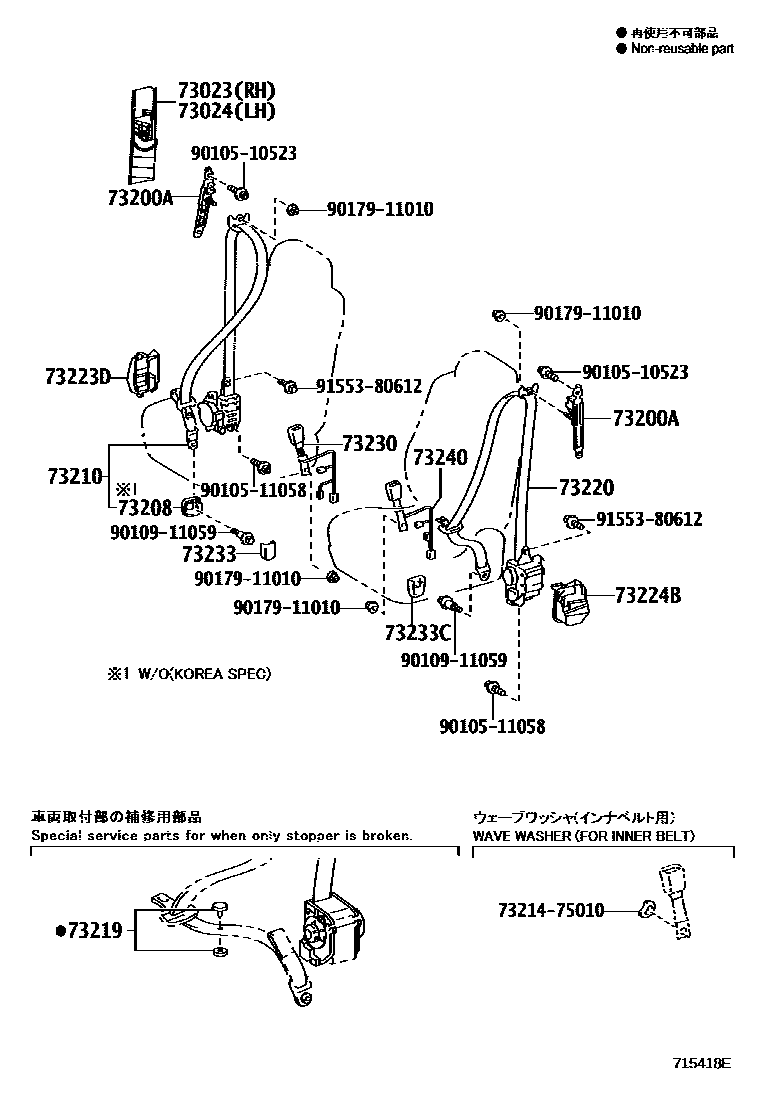

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53010-C0iUSE20200712-200807

BLACK,TRIM2#

sub73023-53011¥2,160

sub73023-53020¥2,140

main73023-53020-C0iUSE20200808-201408

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53010-C0iUSE20200712-200807

BLACK,TRIM2#

sub73024-53011¥2,160

sub73024-53020¥2,140

main73024-53020-C0iUSE20200808-201408

BLACK,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iUSE20¥3,020200712

73208COVER SUB-ASSY, FR SEAT BELT ANCHOR

main73233-53010-C0iUSE20200712-201408

BLACK,TRIM2#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-53220-C2iUSE20200712-200907

BLACK,TRIM2#

sub73210-53360

main73210-53360-C2iUSE20200908-201408

BLACK,TRIM2#

sub73210-53360

73219STOPPER, TONGUE PLATE

main73219-02010iUSE20¥80200712

BLACK

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-53130-C4iUSE20200712-200907

BLACK,TRIM2#

sub73220-53270¥39,500

sub73220-53272¥39,500

sub73220-53130¥39,500

main73220-53270-C1iUSE20200908-201208

BLACK,TRIM2#

sub73220-53271¥39,500

main73220-53360-C1iUSE20201208-201408

BLACK,TRIM2#

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-53010iUSE20¥1,780200712

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-53010iUSE20¥1,780200712

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-53210-C0iUSE20200712-201408

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-53020-C0iUSE20200712-201408

BLACK,TRIM2#

73233CCOVER, LAP BELT OUTER ANCHOR, LH

main73233-52010-C0iUSE20200712-201408

BLACK,TRIM2#

sub73233-60020¥500

sub73233-0C010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-53130-C0iUSE20200712-201408

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010¥170

9010510523

main90105-10523¥100

9010511058

main90105-11058¥100

9010911059

main90109-11059¥240

9017911010

main90179-11010¥110

9155380612

main91553-80612¥60

19 parts on this diagram · 2 diagrams in section
