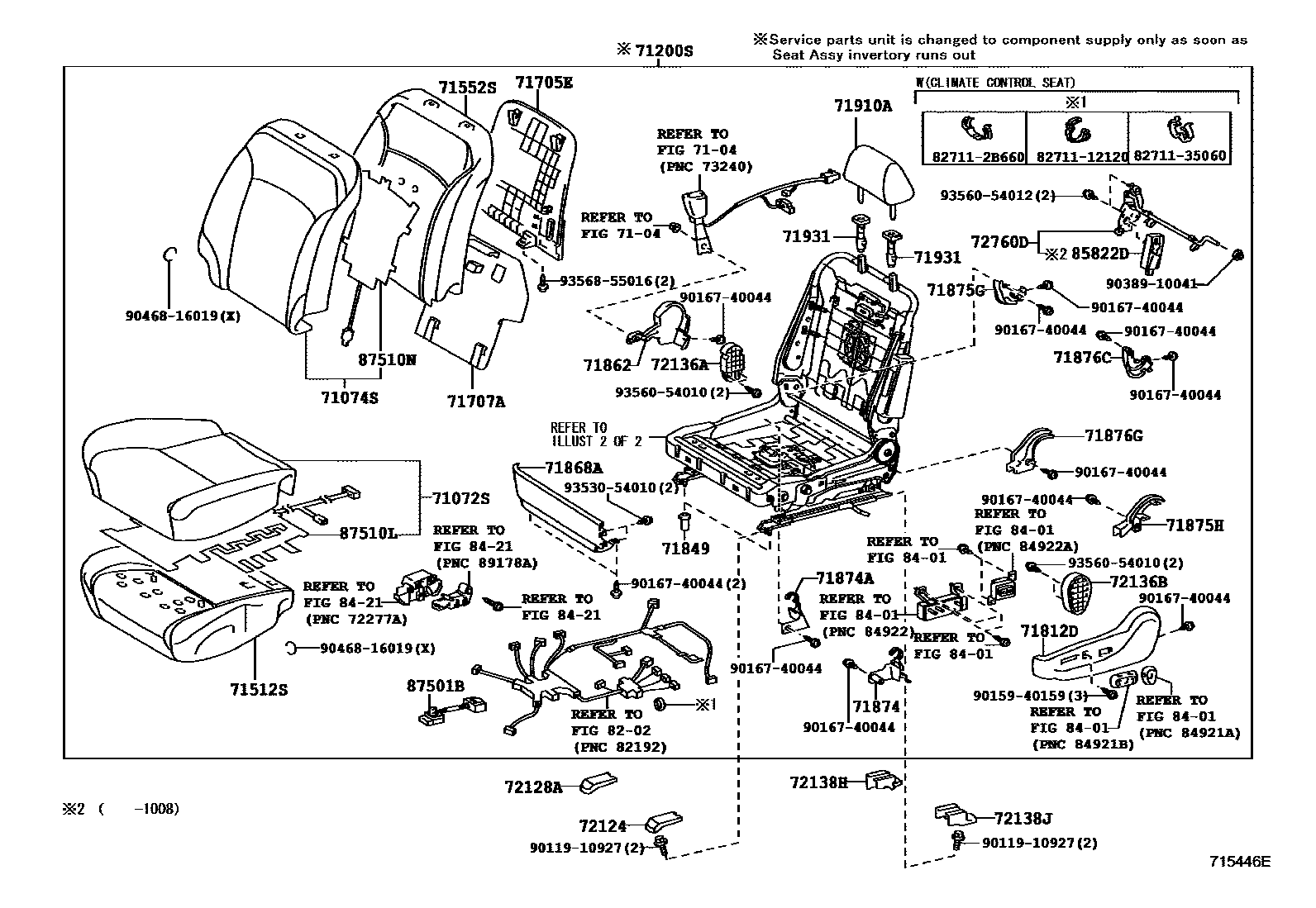

FRONT SEAT & SEAT TRACK

0001 1DRIVER 0002 1DRIVER (SPORTS SEAT) 0003 1PASSENGER 0004 1PASSENGER (SPORTS SEAT) 0005 1PASSENGER,KOREA SPEC 0006 1FRAME

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-53560-A0iUSE20200712-200808

WHITE,TRIM2#

main71072-53560-A0iUSE20200808-201008

WHITE,TRIM20

main71072-53560-D0iUSE20200808-201008

TERRA COTTA,TRIM22

main71072-53B81-C2iUSE20201309-201408

BLACK,TRIM2#

main71072-53C00-C1iUSE20201008-201107

BLACK,TRIM2#

sub71072-53C01

main71072-53C01-C2iUSE20201108-201309

BLACK,TRIM2#

sub71072-53C02

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-53420-A0iUSE20200808-201008

WHITE,TRIM20

main71074-53420-A0iUSE20200712-200808

WHITE,TRIM2#

main71074-53420-D0iUSE20200808-201008

TERRA COTTA,TRIM22

main71074-53820-C2iUSE20201309-201408

BLACK,TRIM2#

main71074-53840-C1iUSE20201008-201309

BLACK,TRIM2#

sub71074-53841

71200SSEAT ASSY, FRONT LH

main71020-53020-C1iUSE20201008-201108

BLACK,TRIM2#

sub71020-53021

main71020-53021-C1iUSE20201108-201309

BLACK,TRIM2#

sub71020-53P90

main71020-53P60-C0iUSE20201309-201408

BLACK,TRIM2#

main71200-53D20-C0iUSE20200712-200808

BLACK,TRIM2#

sub71200-53D24

main71200-53D21-C0iUSE20200808-200908

WHITE,TRIM20

sub71200-53D22

main71200-53D21-C1iUSE20200808-200908

TERRA COTTA,TRIM22

sub71200-53D22

main71200-53D22-C0iUSE20200908-201008

WHITE,TRIM20

sub71020-53V50

main71200-53D22-C1iUSE20200908-201008

TERRA COTTA,TRIM22

sub71020-53V50

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-53150iUSE20201008

main71512-53190iUSE20200712-201008

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-53130iUSE20200712-200907

main71552-53131iUSE20200908-201008

main71552-53170iUSE20201008

71705EBOARD SUB-ASSY, FRONT SEATBACK

main71705-53031-C0iUSE20200712-201408

BLACK,TRIM2#

71707ACOVER SUB-ASSY, FRONT SEATBACK BOARD

main71707-53010-C0iUSE20200712-201008

BLACK,TRIM2#

sub71707-53011

sub71707-53030

main71707-53030-C0iUSE20201008-201309

BLACK,TRIM2#

sub71707-53031

main71707-53040-C0iUSE20201309-201408

BLACK,TRIM2#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-53080-C0iUSE20200712-201408

BLACK,TRIM2#

71849CAP, SEAT ADJUSTER COVER, LH

main71848-33010iUSE20200712-201312

main71848-76010iUSE20201401

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-53070-C0iUSE20200712-201408

BLACK,TRIM2#

71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

main71868-53030-C0iUSE20200712-201408

BLACK,TRIM2#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-30010iUSE20200712

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-30020iUSE20200712

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-60140iUSE20200712

71875HCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-60170-C0iUSE20200712-201408

BLACK,TRIM2#

sub71876-60170

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-58050iUSE20200712

71876CCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-60140iUSE20200712

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-30170-C0iUSE20200712-201408

BLACK,TRIM2#

sub71876-30170

71910AHEADREST ASSY, FRONT SEAT

main71910-53110-A4iUSE20200908-201008

WHITE,TRIM20

sub71910-53111

sub71910-53190

sub71910-53700

main71910-53110-C4iUSE20200908-201008

BLACK,TRIM21,22

sub71910-53111

sub71910-53190

sub71910-53700

main71910-53190-A0iUSE20200712-200908

WHITE,TRIM20

sub71910-53110

main71910-53190-C0iUSE20200712-200908

BLACK,TRIM21,22

sub71910-53110

main71910-53350-C1iUSE20201008-201309

BLACK/BLUE,TRIM2#

sub71910-53610

main71910-53600-C0iUSE20201309-201408

BLACK/BLUE,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-52030-C0iUSE20200712-201408

W(LOCK)&W(BUTTON),BLACK,TRIM2#

sub71930-52030

main71931-42020-C0iUSE20200712-201408

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#

sub71931-42020

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-53030-C0iUSE20200712-201408

BLACK,TRIM2#

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72124-53030-C0iUSE20200712-201408

BLACK,TRIM2#

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-30050iUSE20200712-201104

sub72136-53060

main72136-53060iUSE20201105

72136ASPACER, SEAT TRACK, LOWER NO.2

main72136-30060iUSE20200712-201104

sub72136-53070

main72136-53070iUSE20201105

72136BSPACER, SEAT TRACK, LOWER NO.3

main72136-53020iUSE20200712

72138HCOVER, FRONT SEAT TRACK, LH REAR INNER

main72158-53060-C0iUSE20200712-201408

BLACK,TRIM2#

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72138-53040-C0iUSE20200712-201408

BLACK,TRIM2#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-30170iUSE20200712

8202

8401

8421

85822DMOTOR ASSY, POWER SEAT LUMBER SUPPORT, LH

main85820-60170iUSE20200712-201008

87501BCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-60010iUSE20200712-201202

sub87501-60060

main87501-60060iUSE20201203-201408

sub87501-48020

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-53130iUSE20200712-201008

main87510-53150iUSE20201008

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-53020iUSE20200712

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

9011910927

main90119-10927

9015940159

main90159-40159

9016740044

main90167-40044

9038910041

main90389-10041

9046816019

main90468-16019

9353054010

main93530-54010

9356054010

main93560-54010

9356054012

main93560-54012

9356855016

main93568-55016

48 parts on this diagram · 6 diagrams in section
