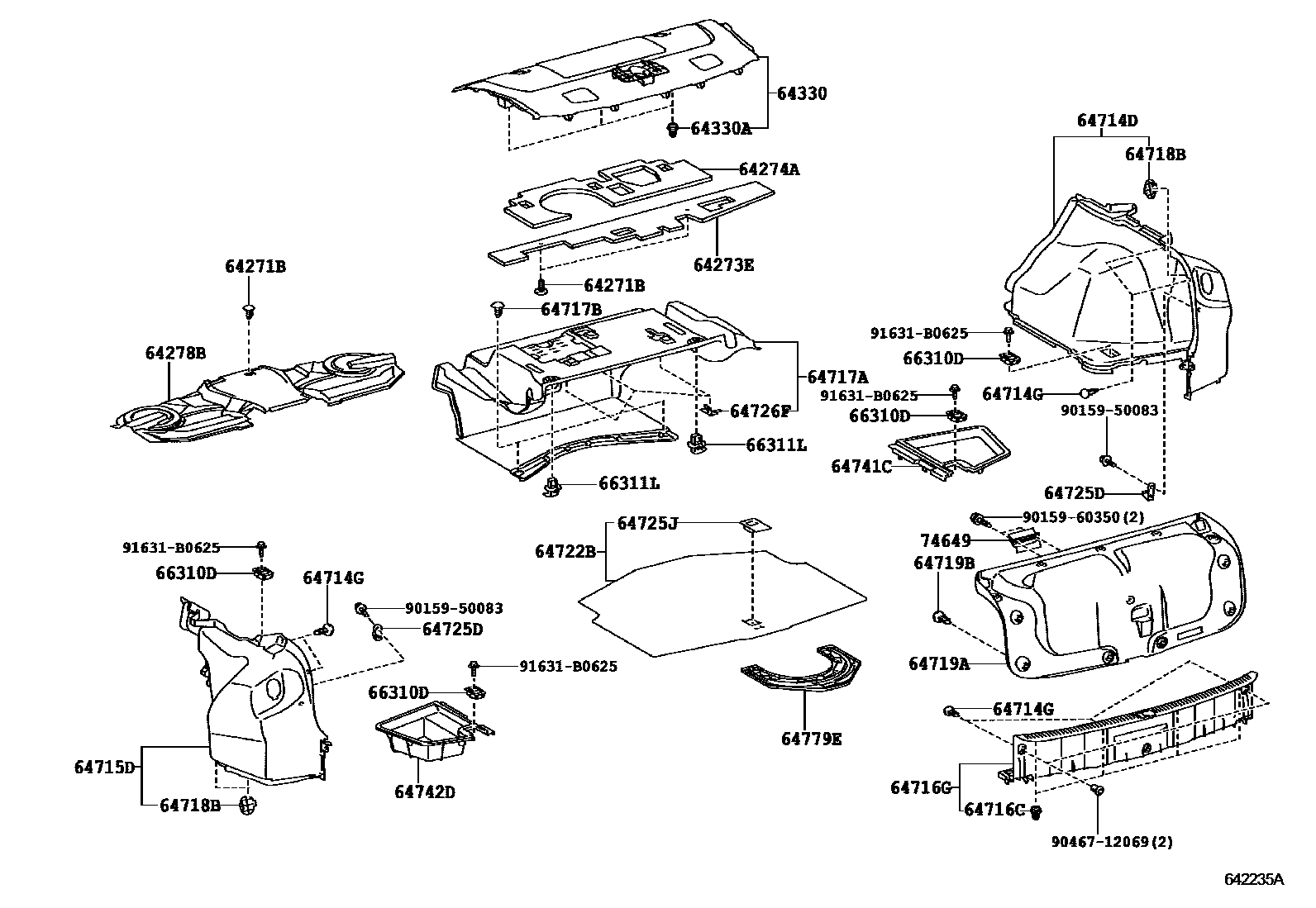

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64271BCLIP(FOR ROOM PARTITION BOARD)
64273EPAD, ROOM PARTITION
64274APAD, ROOM PARTITION, NO.2
64278BPAD, ROOM PARTITION, NO.3
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
AUDIO-AM/FM CD CHANGER *MAR 14SPEAKER,BLACK,TRIM2#
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,BLACK,TRIM2#
BLACK,TRIM2#
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,BLACK,TRIM2#
AUDIO-AM/FM DVD 5.1CH 14SPEAKER,BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM2#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM2#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM2#
BLACK,TRIM2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK
BLACK,TRIM2#
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM2#
64741CBOX, DECK SIDE TRIM, RH
BLACK,TRIM2#
64742DBOX, DECK SIDE TRIM, LH
BLACK,TRIM2#
64779ETRAY, SPARE WHEEL COVER
66310DHOOK ASSY, ROPE
66311LHOOK,ROPE
BLACK,TRIM2#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
9015950083
main90159-50083
9015960350
main90159-60350
9046712069
main90467-12069
91631B0625
main91631-B0625
30 parts on this diagram · 1 diagram in section
