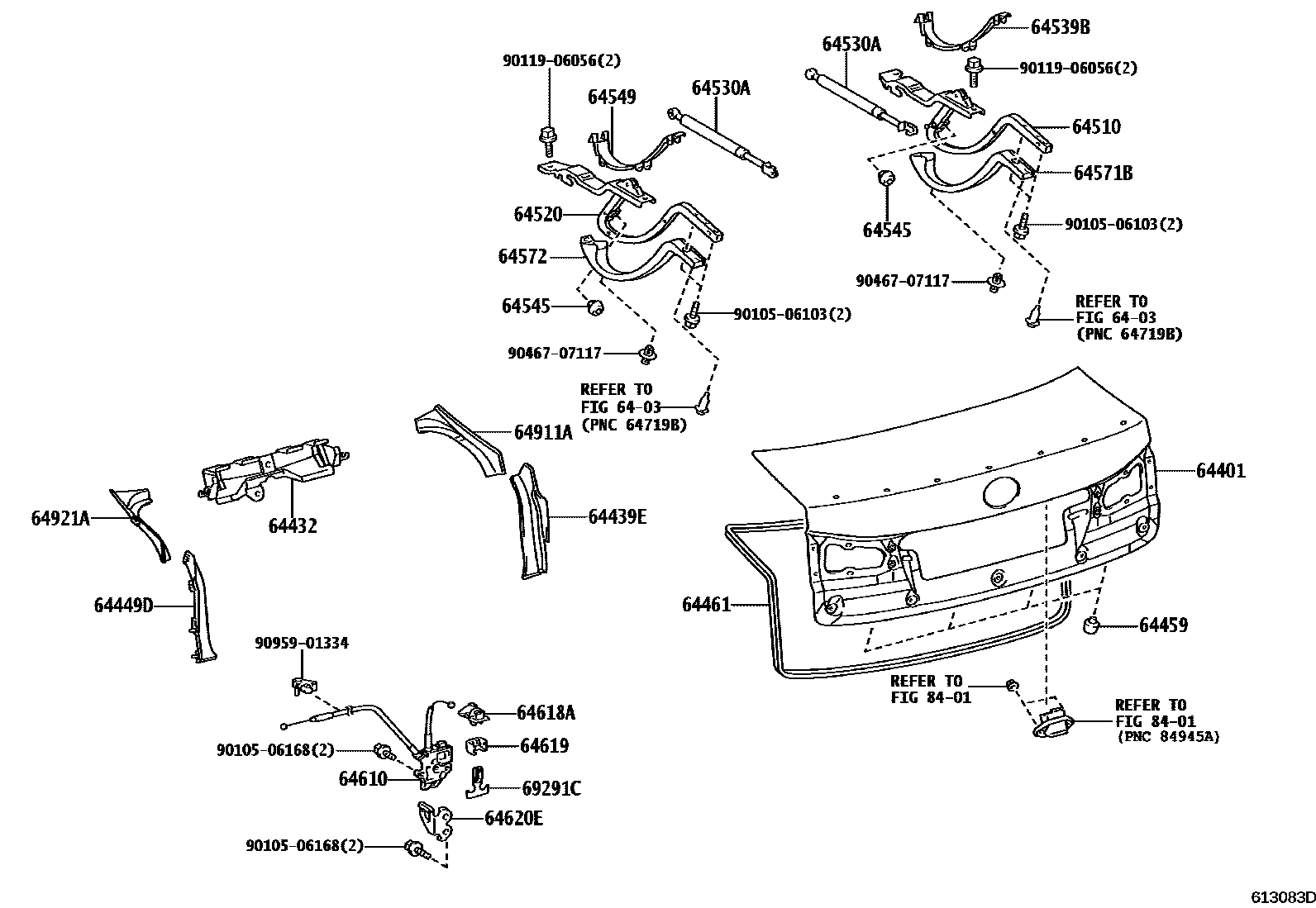

LUGGAGE COMPARTMENT DOOR & LOCK
6403
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
KOREA SPEC&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
AUDIO-AM/FM CD CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
AUDIO-AM/FM CD CHANGER 13SPEAKER NAVIGATION&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
sub76801-53080
EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
64432REINFORCEMENT, LUGGAGE COMPARTMENT DOOR
64439ECOVER, LUGGAGE ROOM BOX SIDE, RH
64449DCOVER, LUGGAGE ROOM BOX SIDE, LH
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64539BPLATE, LUGGAGE DOOR HINGE ARM, RH
BLACK,TRIM2#
64545CUSHION, LUGGAGE DOOR HINGE
64549PLATE, LUGGAGE DOOR HINGE ARM, LH
BLACK,TRIM2#
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
BLACK,TRIM2#
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
BLACK,TRIM2#
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64618ACLAMP, LUGGAGE LOCK CONTROL CABLE
BLACK,TRIM2#
64619PLATE, LUGGAGE LOCK CONTROL CABLE
BLACK,TRIM2#
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64911ACOVER, SIDE OPENING, RH
64921ACOVER, SIDE OPENING, LH
69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE
8401
9010506103
main90105-06103
9010506168
main90105-06168
9011906056
main90119-06056
9046707117
main90467-07117
9095901334
main90959-01334
28 parts on this diagram · 1 diagram in section
