SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
55713CPANEL, COWL TOP SIDE, RH
5701
58741BPROTECTOR, QUARTER PANEL, RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61141CEXTENSION, FRONT PILLAR, UPPER INNER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61161PILLAR, FRONT BODY, UPPER INNER RH
61211RAIL, ROOF SIDE, OUTER RH
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
61231RAIL, ROOF SIDE, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61339BSEAL, CENTER BODY PILLAR, INNER NO.1
61343APILLAR, CENTER BODY, INNER RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61433AREINFORCEMENT, ROCKER PANEL, OUTER RH
61611PANEL, QUARTER, RH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61825CPAD, NOISE SHUTTER, NO.2
62554BPAD, PILLAR, NO.4
64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
65637LINER, REAR WHEEL HOUSE, RH
6427430040PAD, ROOM PARTITION TRIM, NO.1
main64274-30040
9017806011
main90178-06011
9018906157
main90189-06157

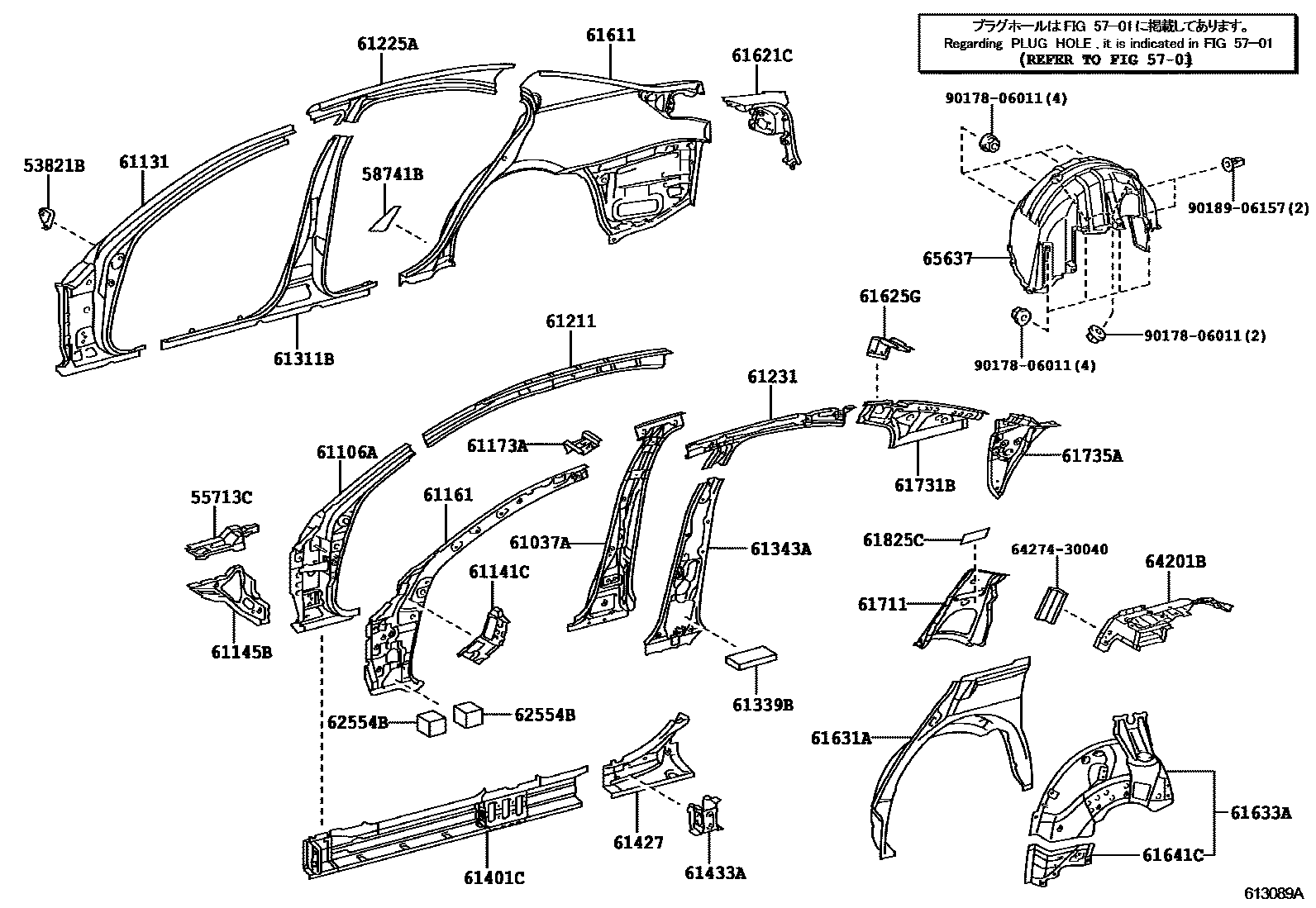

36 parts on this diagram · 2 diagrams in section
