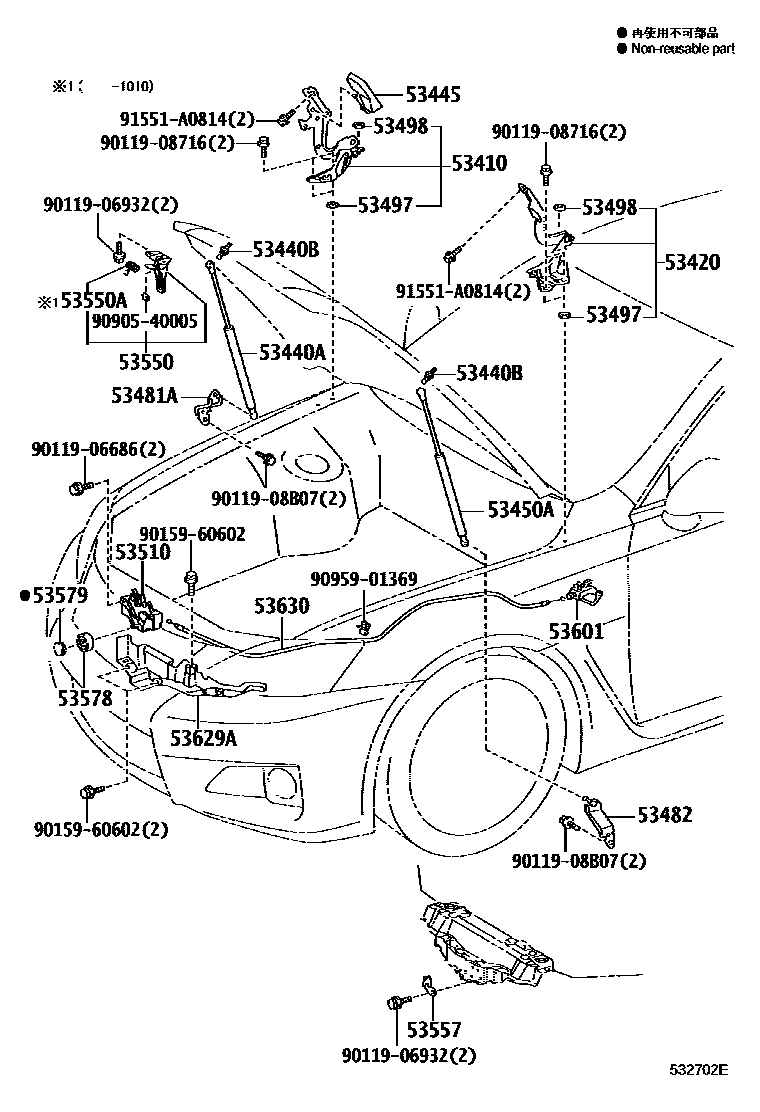

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-53070iUSE20200712

53420HINGE ASSY, HOOD, LH

main53420-53070iUSE20200712

53440ASUPPORT ASSY, HOOD, RH

main53440-0W170iUSE20200712-201205

sub53440-0W171

main53440-0W171iUSE20201206

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051iUSE20200712-200908

53445COVER, HOOD HINGE, RH

main53445-53020iUSE20200712

53450ASUPPORT ASSY, HOOD, LH

main53450-0W140iUSE20200712-201205

sub53450-0W141

main53450-0W141iUSE20201206

53481ABRACKET, HOOD SUPPORT, RH

main53481-53010iUSE20200712-201408

53482BRACKET, HOOD SUPPORT, LH

main53482-53010iUSE20200712-201408

53497PAD, HOOD HINGE, NO.1

main53497-50020iUSE20200712

T=1.0

53498PAD, HOOD HINGE, NO.2

main53497-53010iUSE20200712

T=1.0

53510LOCK ASSY, HOOD

main53510-30320iUSE20200712-200904

sub53510-30321

main53510-30321iUSE20200905-200909

sub53510-30322

main53510-30322iUSE20200910

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-53010iUSE20200712

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90508-18096iUSE20200712-201010

53557CATCH, HOOD AUXILIARY HOOK

main53557-53011iUSE20200712

53578NUT, HOOD LOCK

main53578-50010iUSE20200712

53579CAP, HOOD LOCK NUT

main53579-50010iUSE20200712

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-C0iUSE20200712-201408

BLACK,TRIM2#

sub53601-52010

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-53060iUSE20200712

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-53050iUSE20200712

9011906686

main90119-06686

9011906932

main90119-06932

9011908716

main90119-08716

9011908B07

main90119-08B07

9015960602

main90159-60602

9090540005

main90905-40005

9095901369

main90959-01369

91551A0814

main91551-A0814

27 parts on this diagram · 1 diagram in section
