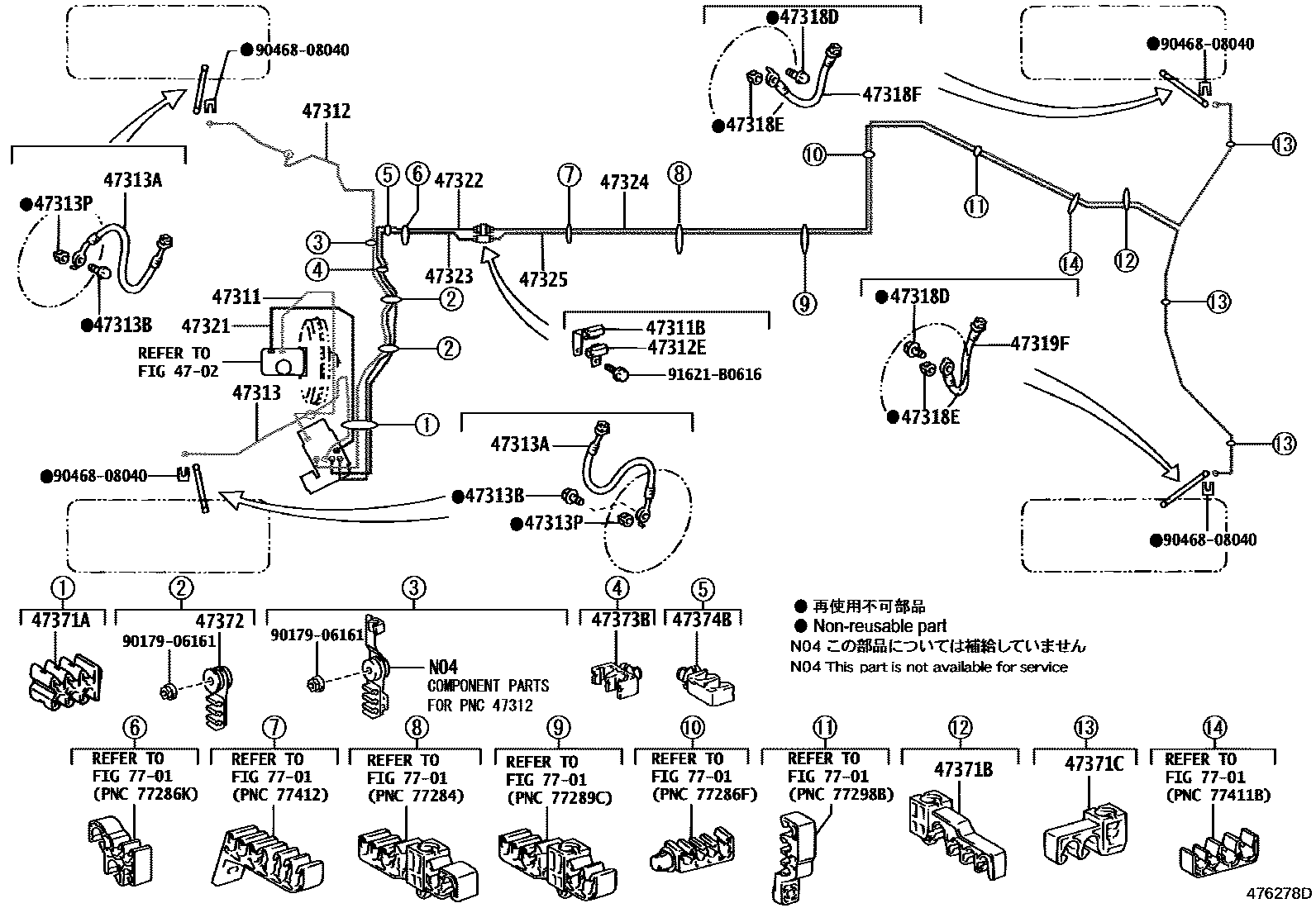

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-53160iUSE20200712-200908

main47311-53190iUSE20200908

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10250iUSE20200712-201309

TYPE A:REFER ILLUST.

main90412-10297iUSE20201309

TYPE B:REFER ILLUST.

47312TUBE, FRONT BRAKE, NO.2

main47312-53180iUSE20200712-200908

main47312-53240iUSE20200908

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10278iUSE20200712-201309

main90412-10292iUSE20201309

47313TUBE, FRONT BRAKE, NO.3

main47313-53180iUSE20200712-200908

main47313-53240iUSE20200908

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F81iUSE20200712

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iUSE20200712

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iUSE20200712

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iUSE20200712

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iUSE20200712

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F82iUSE20200712

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F82iUSE20200712

47321TUBE, REAR BRAKE, NO.1

main47321-53130iUSE20200712-200908

main47321-53160iUSE20200908

47322TUBE, REAR BRAKE, NO.2

main47322-53170iUSE20200712-200908

main47322-53220iUSE20200908-201309

main47322-53221iUSE20201309

47323TUBE, REAR BRAKE, NO.3

main47323-53150iUSE20200712-200908

main47323-53200iUSE20200908-201309

main47323-53201iUSE20201309

47324TUBE, REAR BRAKE, NO.4

main47324-53070iUSE20200712-201309

main47324-53071iUSE20201309

47325TUBE, REAR BRAKE, NO.5

main47325-53060iUSE20200712-201309

main47325-53061iUSE20201309

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01C51iUSE20200712

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D09iUSE20200712

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D11iUSE20200712

47372CLAMP, BRAKE TUBE, NO.2

main90949-04037iUSE20200712

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D12iUSE20200712

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D13iUSE20200712

7701

9017906161

main90179-06161

9046808040

main90468-08040

91621B0616

main91621-B0616

28 parts on this diagram · 4 diagrams in section
