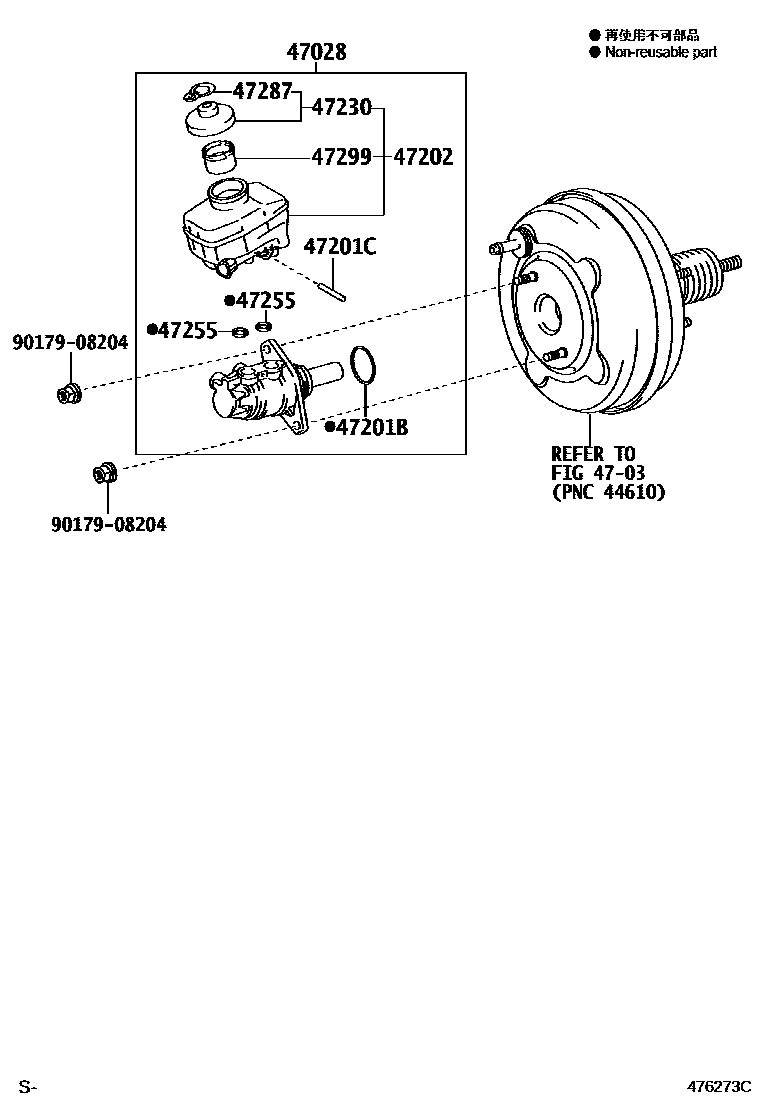

BRAKE MASTER CYLINDER

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-30030iUSE20200712

4703

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iUSE20200712

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iUSE20200712

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30180iUSE20200712

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iUSE20200712

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iUSE20200712

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iUSE20200712

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iUSE20200712

9017908204

main90179-08204

10 parts on this diagram · 1 diagram in section
