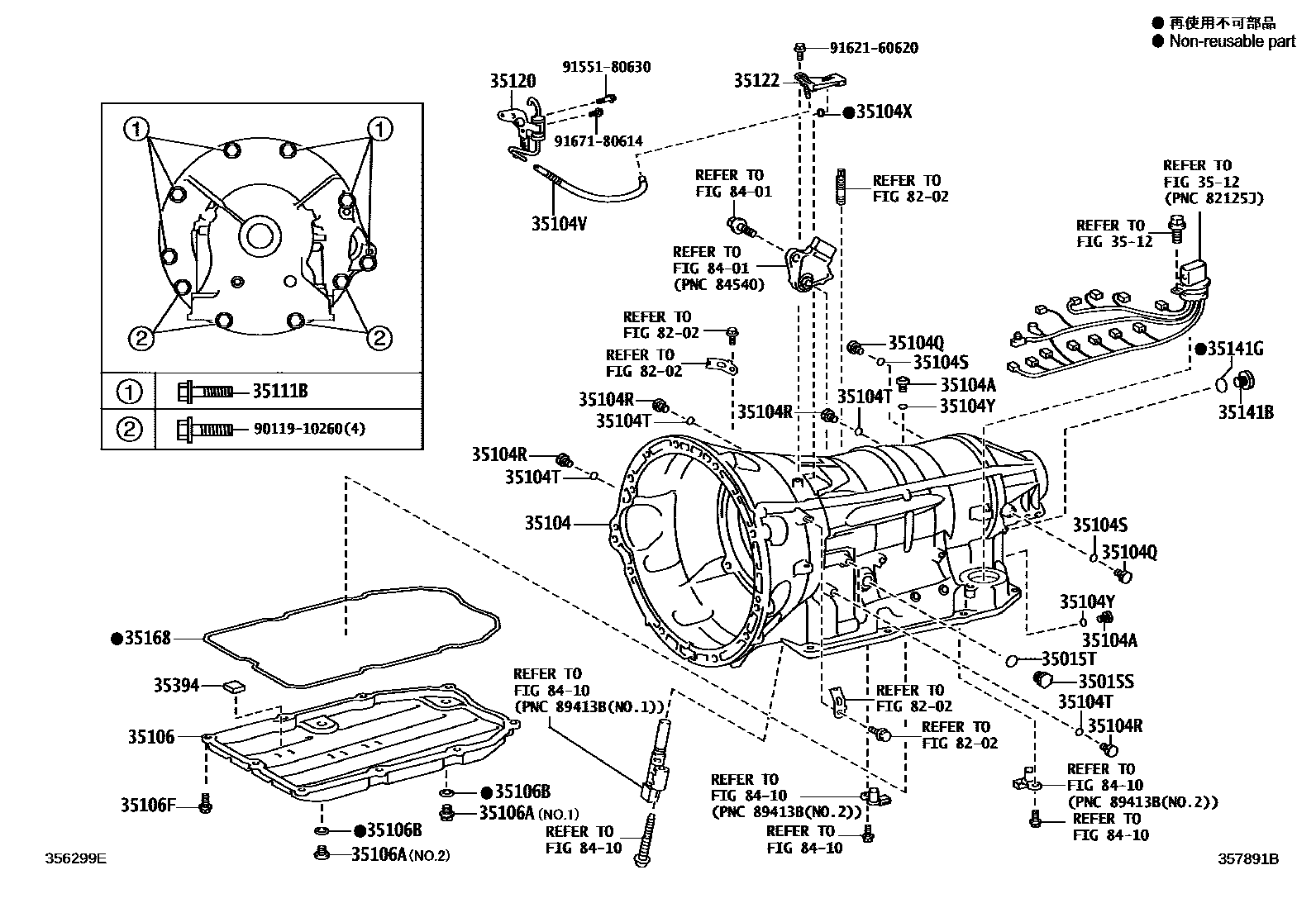

TRANSMISSION CASE & OIL PAN (ATM)

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iUSE20200712

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iUSE20200712

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-50030iUSE20200712

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-14011iUSE20200712

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-12036iUSE20200712

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001iUSE20200712-200804

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-09026iUSE20200712

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-06196iUSE20200712-200804

35104VHOSE (FOR BREATHER PLUG)

main90447-11060iUSE20200712

35104XRING, O (FOR BREATHER PLUG)

main90301-04015iUSE20200712

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iUSE20200712

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30300iUSE20200712

sub35106-30310

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iUSE20200712

NO.1

main90341-10021iUSE20200712

NO.2

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iUSE20200712

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06982iUSE20200712

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main91619-61250iUSE20200712

*12-1.25PX50-30

3512

35120BREATHER ASSY, TRANSMISSION

main35120-53010iUSE20200712-201408

sub35120-53020

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-53020iUSE20200712

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-24017iUSE20200712

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-20013iUSE20200712

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-50010iUSE20200712

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-48010iUSE20200712

8202

8401

8410

9011910260

main90119-10260

9155180630

main91551-80630

9162160620

main91621-60620

9167180614

main91671-80614

30 parts on this diagram · 1 diagram in section
