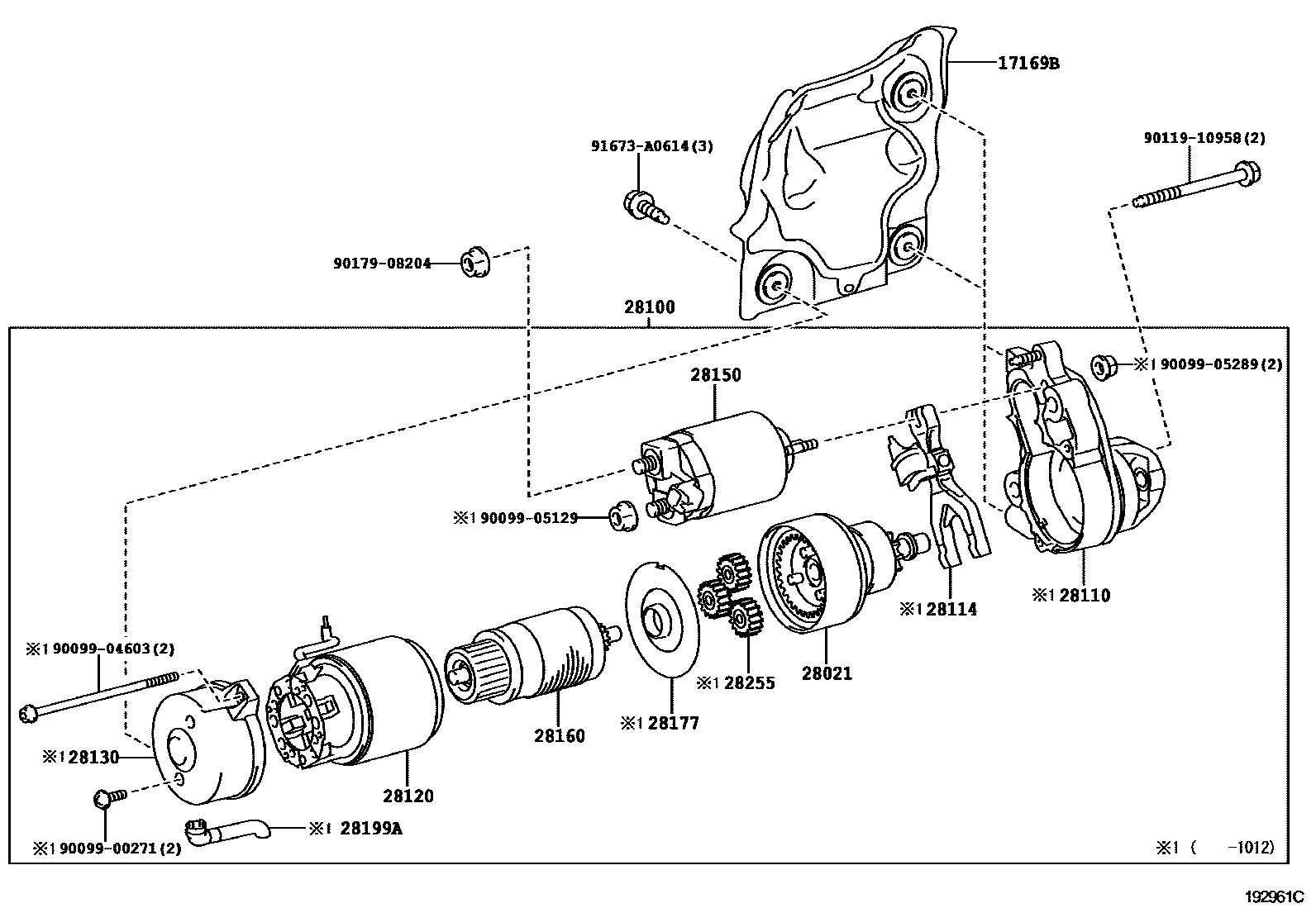

STARTER

17169BINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-38030i2URGSE..USE20200712

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-38020i2URGSE..USE20200712-201408

28100STARTER ASSY

main28100-38020i2URGSE..USE20200712-201408

12V 2.0KW

sub28100-38021

28110HOUSING ASSY, STARTER DRIVE

main28110-38020i2URGSE..USE20200712-201012

28114PIN, STARTER DRIVE LEVER SET

main28114-38020i2URGSE..USE20200712-201012

28120YOKE ASSY, STARTER

main28120-38020i2URGSE..USE20200712-201107

main28120-38060i2URGSE..USE20201107-201408

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-38020i2URGSE..USE20200712-201012

28150SWITCH ASSY, MAGNET STARTER

main28150-38020i2URGSE..USE20200712-200904

sub28150-38060

main28150-38060i2URGSE..USE20200904-200909

sub28150-38061

main28150-38061i2URGSE..USE20200909-201408

28160ARMATURE ASSY, STARTER

main28160-38020i2URGSE..USE20200712-201408

28177PLATE(FOR STARTER ARMATURE)

main28177-38020i2URGSE..USE20200712-201012

28199APROTECTOR, DUST STARTER

main28199-40070i2URGSE..USE20200712-201012

28255GEAR, PLANET

main28255-38020i2URGSE..USE20200712-201012

9009900271

main90099-00271

9009904603

main90099-04603

9009905129

main90099-05129

9009905289

main90099-05289

9011910958

main90119-10958

9017908204

main90179-08204

91673A0614

main91673-A0614

19 parts on this diagram · 1 diagram in section
