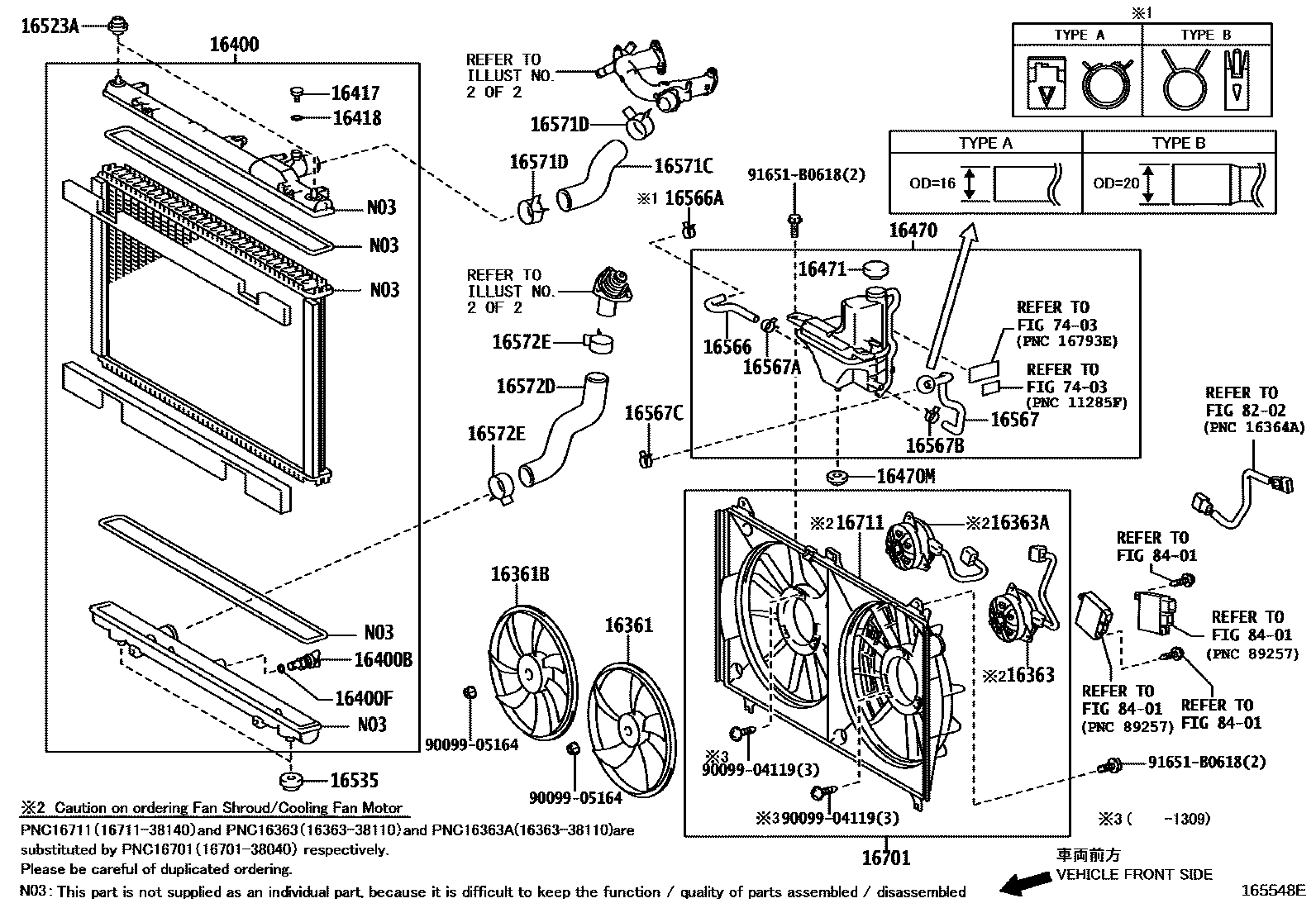

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16417COCK
16418PACKING
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16566HOSE, RESERVE TANK OUTLET
16566ACLIP(FOR RESERVE TANK OUTLET)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
16567HOSE(FOR RADIATOR RESERVE TANK)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16567BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)
16567CCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3)
PNC 16567=TYPE B
PNC 16567=TYPE A
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16701SHROUD SUB-ASSY, FAN
16711SHROUD, FAN
7403
8202
8401
9009904119
main90099-04119
9009905164
91651B0618
32 parts on this diagram · 2 diagrams in section
