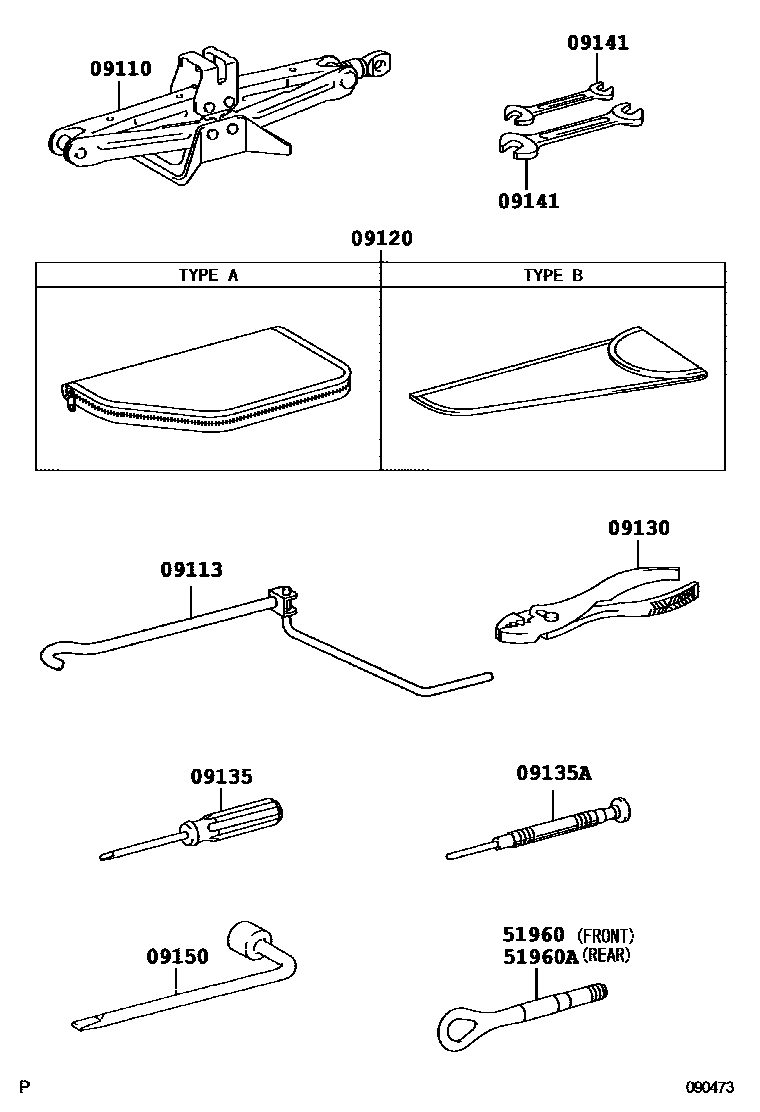

STANDARD TOOL

09110JACK ASSY

main09111-33030iUSE20201011

sub09111-76010

main09111-50051iUSE20200712-201010

sub09111-76011

09113HANDLE, JACK

main09113-44010iUSE20200712

09120BAG, TOOL

main09120-28020iUSE20200712

TYPE B:REFER ILLUST.

main09120-53010iUSE20200712

TYPE A:REFER ILLUST.

09130PLIERS

main09130-50030iUSE20200712-200908

main09130-50040iUSE20200908

09135DRIVER, SCREW

main09135-50040iUSE20200712-200908

main99915-10700iUSE20200908

09135ABIT, SCREW DRIVER

09141SPANNER

main09141-50050iUSE20200712-200908

8 X 10

main09141-50060iUSE20200712-200908

12 X 14

main09141-60010iUSE20200908

8 X 10

main09141-60020iUSE20200908

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010iUSE20200712-200908

sub09150-53010

main09150-53010iUSE20200908-201205

sub09150-76020

main09150-76020iUSE20201206-201408

51960HOOK ASSY, FRONT

main51961-53010iUSE20200712-201408

51960AHOOK ASSY, REAR

main51961-53010iUSE20200712-201408

10 parts on this diagram · 1 diagram in section
