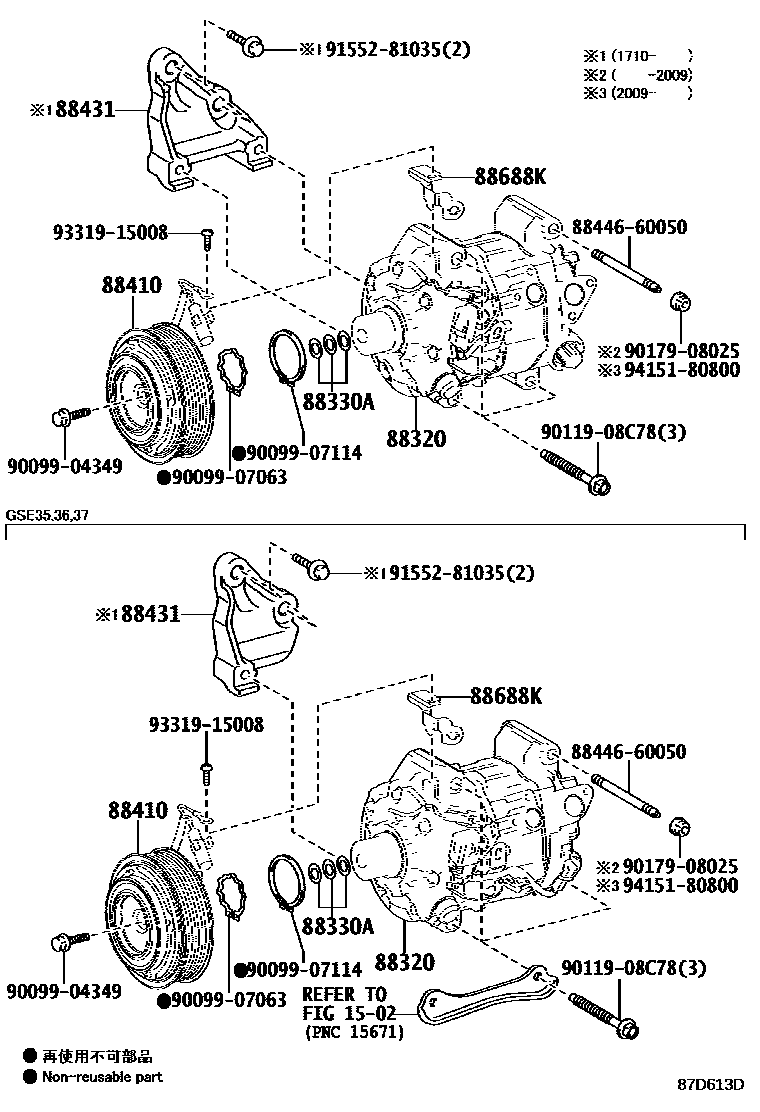

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1502

88320COMPRESSOR ASSY, COOLER

main88320-30730iGSE36,37201710-202009

main88320-3A440iGSE30,31201304-201512

sub88320-3A510

main88320-3A450iGSE36,37201304-201512

sub88320-3A520

main88320-3A510iGSE31201512-201710

main88320-3A520iGSE36,37201512-201710

main88320-48320iGSE31201508-202009

main88320-48320iASE30202209

MEXICO SPEC

main88320-48330iASE30,GSE31202009-202110

main88320-53070iGSE36,37202009-202110

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGSE3#201304-202110

88410CLUTCH ASSY, MAGNET

main88410-0N010iASE30201508-202110

main88410-33180iGSE3#201304-201403

sub88410-33190

main88410-33190iGSE3#201403-201710

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36031iASE30201508-202110

main88431-30630iGSE36,37201710-202110

main88431-48050iGSE31201710-202110

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iGSE3#201304-202110

8844660050BOLT, IDLE PULLEY

main88446-60050

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78

9017908025

main90179-08025

9155281035

main91552-81035

9331915008

main93319-15008

9415180800

main94151-80800

15 parts on this diagram · 3 diagrams in section
