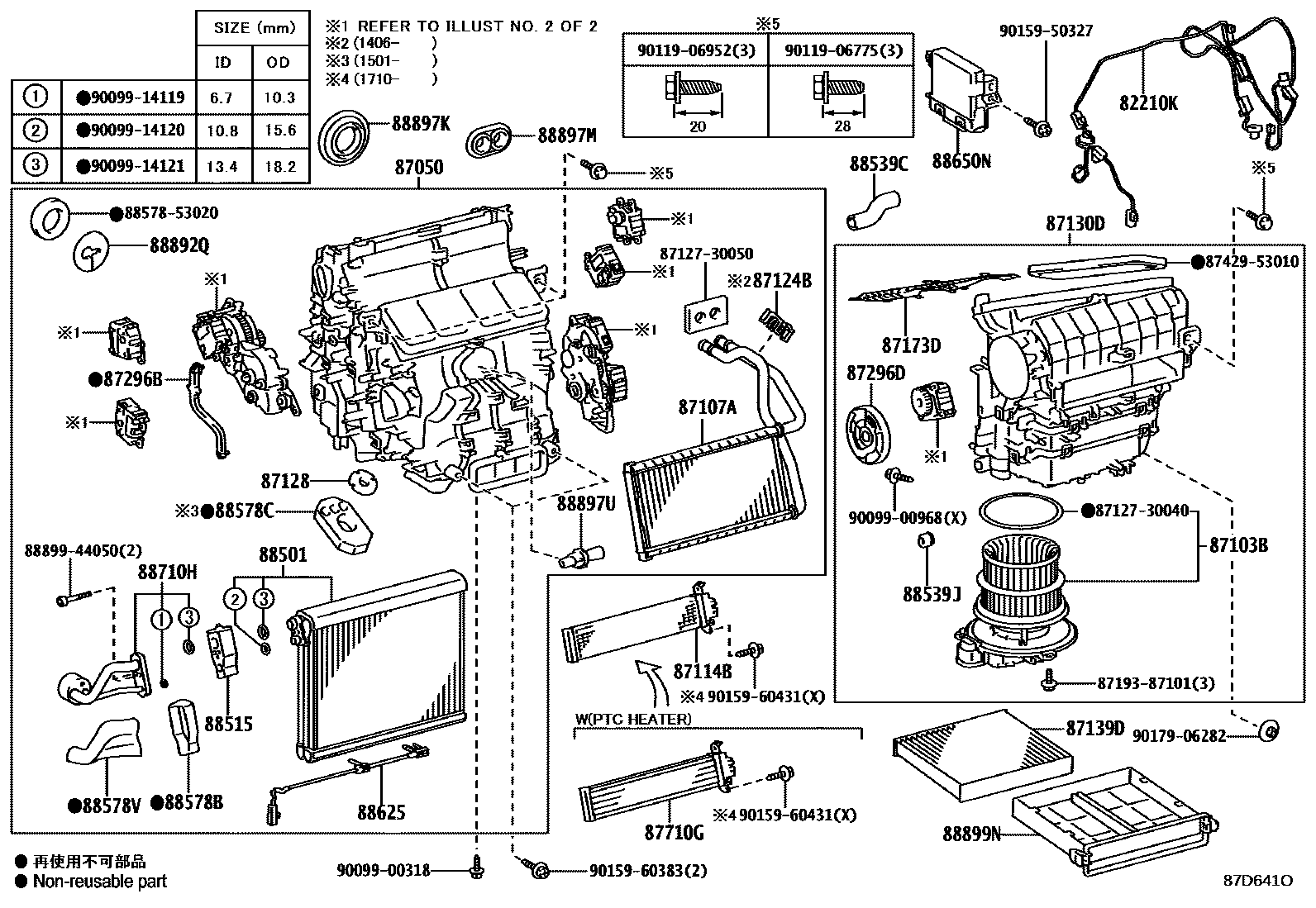

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1SERVO MOTOR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-53010iASE30,GSE3#201304-202110

87050RADIATOR ASSY, AIR CONDITIONER

main87050-53070iGSE3#201304-201308

sub87050-53071

main87050-53071iGSE3#201309-201405

sub87050-53072

main87050-53072iGSE3#201406-201412

sub87050-53073

main87050-53073iGSE3#201501-201503

sub87050-53180

sub87128-30060

main87050-53180iGSE3#201503-201610

sub87050-53181

main87050-53181iASE30,GSE3#201610-202009

main87050-53240iASE30,GSE3#202009-202110

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-30470iGSE3#201304-201507

sub87103-30471

main87103-30471iGSE3#201507-202110

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30570iGSE3#201304-201308

sub87107-30571

main87107-30571iGSE3#201309-201503

sub87107-30580

sub87128-30060

main87107-30580iGSE3#201503-202110

87114BCOVER, HEATER

main87114-30010iGSE3#201304-202110

87124BCLAMP, HEATER

main87124-33070iGSE3#201406-202110

87128GROMMET, HEATER

main87128-30050iGSE3#201304-202110

87130DBLOWER ASSY

main87130-30821iGSE3#201304-201507

sub87130-30822

main87130-30822iGSE3#201507-201808

sub87130-30840

main87130-30840iASE30,GSE3#201809-202110

87139DELEMENT, AIR REFINER

main87139-30100iGSE3#201304-202110

87173DPROTECTOR HEATER

main87173-53020iASE30,GSE3#201304-202110

87296BLEVER, HEATER AIR DAMPER CONTROL

main87296-53010iASE30,GSE3#201610-202110

87296DLEVER, HEATER AIR DAMPER CONTROL, NO.2

main87296-53020iASE30,GSE3#201610-202110

87710GQUICK HEATER ASSY

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A190iASE30,GSE3#201304-202009

main88501-53060iASE30,GSE3#,USE30202009-202110

88515VALVE, COOLER EXPANSION

main88515-24050iASE30,GSE3#202009-202110

main88515-30780iASE30,GSE3#201304-202009

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88839-30010iASE30,GSE3#,USE30201309-202110

88539JHOSE, DRAIN COOLER

main88539-30A00iGSE3#201304-202110

88578BPACKING, COOLING UNIT, NO.1

main88578-3A010iGSE3#201304-202110

88578CPACKING, COOLING UNIT, NO.2

main88578-52131iGSE3#201501-202110

88578VPACKING, COOLING UNIT, NO.3

main88578-30890iGSE3#201304-202110

88625THERMISTOR, COOLER, NO.1

main88620-30050iASE30,GSE3#201304-202009

main88620-53010iASE30,GSE3#,USE30202009-202110

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-53400iGSE3#201304-201407

main88650-53401iGSE3#201407-201508

sub88650-53402

main88650-53402iASE30,GSE3#201508-201610

main88650-53403iASE30,GSE3#201610-201710

main88650-53404iASE30,GSE3#201710-202009

main88650-53A70iASE30,GSE3#202009-202110

main88650-53A71iASE30,GSE3#,USE30202111-202209

main88650-53A72iASE30,GSE3#,USE30202209

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-3A410iASE30,GSE3#201304-202110

88892QPLATE, COOLER

main88892-30620iGSE3#201304-202110

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iASE30,GSE3#201709-202110

main88897-35030iASE30,GSE3#201304-201708

88897MGROMMET (FOR HEATER PIPE)

main87128-30060iGSE3#201503-202110

main87128-35020iGSE3#201304-201502

88897UPIPE, ASPIRATOR

main88897-32090iASE30,GSE3#201304-202110

88899NPLATE, COVER

main88899-3A090iGSE3#201304-202110

8712730040PACKING, HEATER AIR DAMPER

main87127-30040

8712730050PACKING, HEATER AIR DAMPER

main87127-30050

8719387101

main87193-87101

8742953010PIPE, COMBUSTION HEATER OUTLET

main87429-53010

8857853020PAKING, COOLER AIR DUCT

main88578-53020

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906775

main90119-06775

9011906952

main90119-06952

9015950327

main90159-50327

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

45 parts on this diagram · 2 diagrams in section
