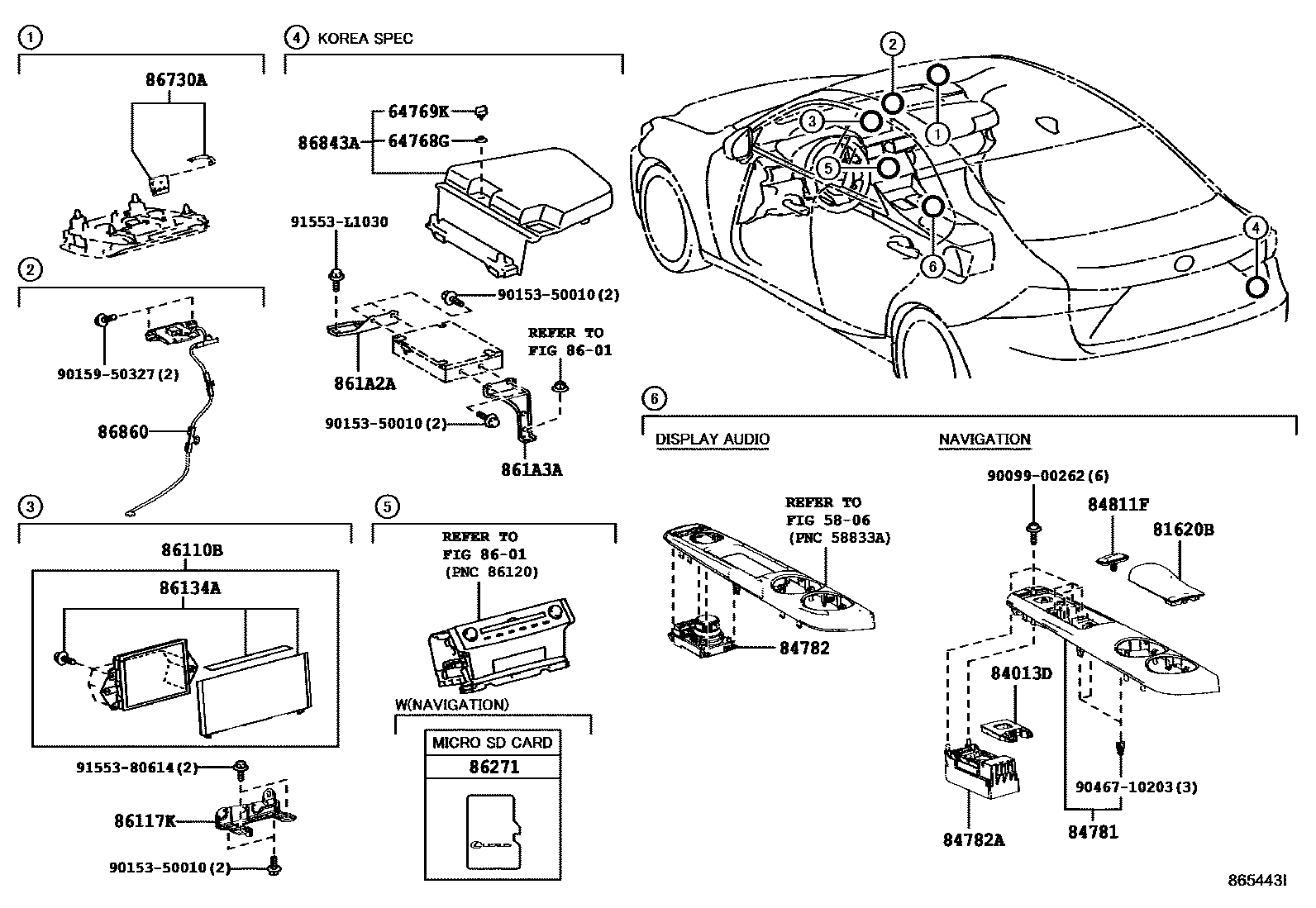

NAVIGATION & FRONT MONITOR DISPLAY
5806
64768GSTOPPER, NAVIGATION COMPUTER COVER
64769KKNOB, NAVIGATION COMPUTER COVER
81620BCOVER ASSY LH
84013DPANEL SUB-ASSY, INTEGRATION
84782BOARD, REMOTE OPERATION
AUDIO-EMV(FOR KOREA) & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV(KOREA SPEC),BLACK,TRIM0#,1#,2#,3#,5#
AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLACK,TRIM0#,1#,2#,3#,5#
AUDIO-EMV & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
AUDIO-EMV(FOR KOREA) & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV(KOREA SPEC),BLACK,TRIM0#,1#,2#,3#,5#
AUDIO-AM/FM & 6CD CHANGER & 8SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT,BLACK,TRIM0#,1#,2#,3#,5#
AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLACK,TRIM0#,1#,2#,3#,5#
AUDIO-EMV(FOR KOREA) & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV(KOREA SPEC),BLACK,TRIM0#,1#,2#,3#,5#
AUDIO-EMV(FOR KOREA) & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV(KOREA SPEC),BLACK,TRIM0#,1#,2#,3#,5#
BLACK,TRIM0#,1#,2#,3#,5#
AUDIO-AM/FM & 6CD CHANGER & 8SPEAKER&EMV & NAVIGATION SYSTEM-WITHOUT,BLACK,TRIM0#,1#,2#,3#,5#
AUDIO-EMV & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV & WITH(NAVIGATION),BLACK,TRIM0#,1#,2#,3#,5#
AUDIO-EMV(FOR KOREA) & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREASPEC),BLACK,TRIM1#,2#,3#,5#,8#,9#
BLACK,TRIM1#,2#,3#,5#,8#,9#
AUDIO-EMV & AM/FM & DVD & 10SPEAKER&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION),BLACK,TRIM1#,2#,3#,5#,8#,9#
AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH)& WITH(NAVIGATION),BLACK,TRIM1#,2#,3#,5#,8#,9#
AUDIO-EMV(FOR KOREA) & 10SPEAKER&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC),BLACK,TRIM1#,2#,3#,5#,8#,9#
EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION),BLACK,TRIM1#,2#,3#,5#,8#,9#
EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC),BLACK,TRIM1#,2#,3#,5#,8#,9#
84782ABOARD, REMOTE OPERATION
84811FKNOB, SWITCH
8601
86110BMULTI-DISPLAY ASSY
DENSO
DENSO
PANASONIC
PANASONIC,AUDIO-*EMV(L2) & DVD & 17SPEAKER(*MAR)&EMV & NAVIGATION SYSTEM-EMV(10.3INCH) & WITHOUT(NAVIGATION)
PANASONIC,AUDIO-*EMV(L2) & DVD & 10SPEAKER&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH)& WITHOUT(NAVIGATION)
PANASONIC,AUDIO-*EMV(L2) & DVD & 17SPEAKER(*MAR)&EMV & NAVIGATION SYSTEM-EMV(10.3INCH) & WITH(NAVIGATION)
PANASONIC,AUDIO-*EMV(L2) & DVD & 10SPEAKER&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH)& WITH(NAVIGATION)
86117KBRACKET, MULTI-DISPLAY, NO.1
CANADA SPEC&AUDIO-AM/FM & 6CD CHANGER & 8SPEAKER
KOREA SPEC&AUDIO-AM/FM & 6CD CHANGER & 8SPEAKER
MEXICO SPEC&AUDIO-AM/FM & 6CD CHANGER & 8SPEAKER
86134APARTS, MULTI-DISPLAY
EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION)
861A2ABRACKET, MULTI-MEDIA INTERFACE, NO.1
861A3ABRACKET, MULTI-MEDIA INTERFACE, NO.2
86271DISC, DISC PLAYER
main86271-78011
main86271-78012
main86271-78013
main86271-53190
main86271-53191
main86271-48320
main86271-48321
main86271-48322
main86271-48323
main86271-53390
main86271-53391
86730AMICROPHONE ASSY, TELEPHONE
NO.1:REFER ILLUST.
86843ACOVER, NAVIGATION COMPUTER
86860ANTENNA ASSY, NAVIGATION
KOREA SPEC&MAYDAY SYSTEM-WITHOUT
AUDIO-EMV(FOR KOREA) & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV(KOREA SPEC)
AUDIO-EMV(FOR KOREA) & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV(KOREA SPEC)
KOREA SPEC&AUDIO-EMV(FOR KOREA) & 8SPEAKER&EMV & NAVIGATION SYSTEM-EMV(KOREA SPEC)
KOREA SPEC&AUDIO-EMV(FOR KOREA) & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV(KOREA SPEC)
KOREA SPEC&AUDIO-*DA & AM/FM & DVD & 8SPEAKER&EMV & NAVIGATION SYSTEM-*DA & WITHOUT(NAVIGATION)
KOREA SPEC&AUDIO-EMV(FOR KOREA) & 10SPEAKER&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)
KOREA SPEC&AUDIO-EMV & AM/FM & DVD & 10SPEAKER&EMV & NAVIGATION SYSTEM-*DA(7 INCH)& WITHOUT(NAVIGATION)
KOREA SPEC&AUDIO-EMV(FOR KOREA) & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)
KOREA SPEC&AUDIO-EMV(FOR KOREA) & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)
KOREA SPEC&AUDIO-EMV(FOR KOREA) & 10SPEAKER&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)
KOREA SPEC&AUDIO-EMV & AM/FM & DVD & 10SPEAKER&EMV & NAVIGATION SYSTEM-*DA(7 INCH)& WITHOUT(NAVIGATION)
9009900262
main90099-00262
9015350010
main90153-50010
9015950327
main90159-50327
9046710203
main90467-10203
9155380614
main91553-80614
91553L1030
main91553-L1030
25 parts on this diagram · 4 diagrams in section
