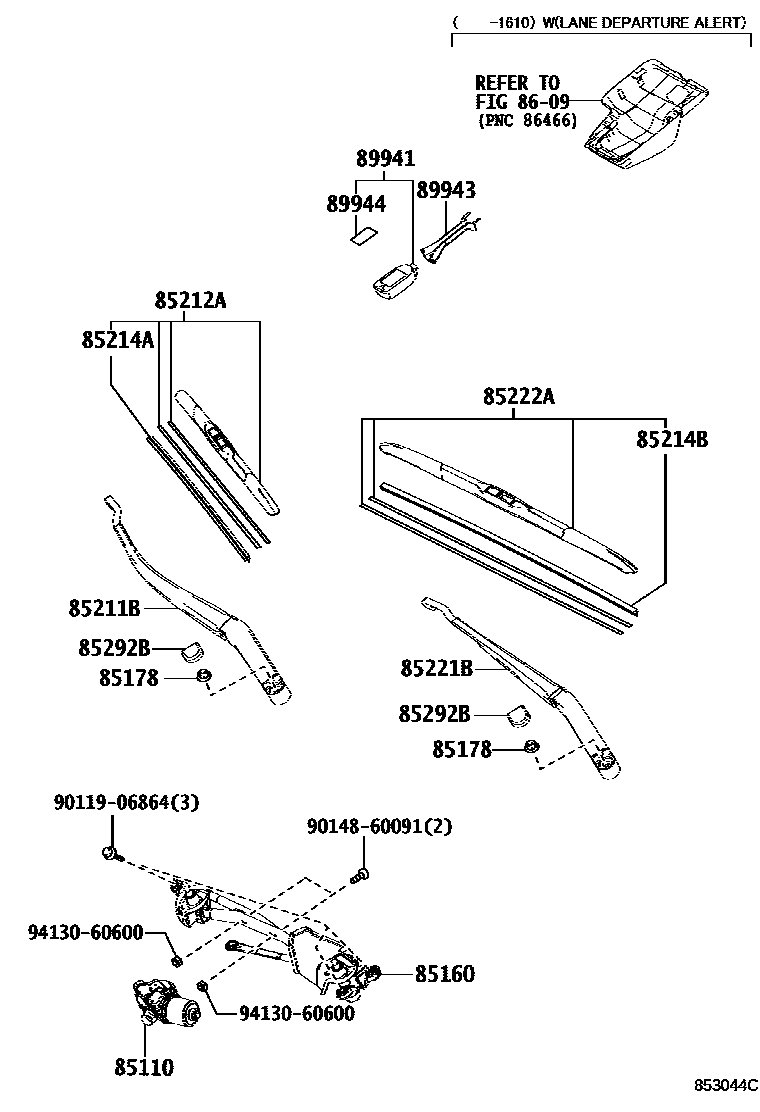

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-53050i201304-202110

85160LINK ASSY, WINDSHIELD WIPER

main85150-53080i201304-202110

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006i¥80201304-202110

85211BARM, FRONT WIPER, RH

main85211-53090i201304-202110

85212ABLADE, FR WIPER, RH

main85212-53100i¥2,180201304-202110

85214ARUBBER, WIPER, RH

main85214-33180i¥800201304-202110

85214BRUBBER, WIPER, LH

main85214-30380i¥850201304-202110

85221BARM, FRONT WIPER, LH

main85221-53090i201304-202110

85222ABLADE, FR WIPER, LH

main85222-53090i¥3,700201304-202110

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010i¥250201304-202110

8609

89941SENSOR, RAIN

main89941-52010i¥12,500202009-202110

BLIND SPOT MONITOR-WITH

main89941-52010i¥12,500202111

F SPORT DESIGN&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&GARAGE OPENER-WITHOUT

89943COVER, RAIN SENSOR

main89943-24010i¥230202009-202110

BLIND SPOT MONITOR-WITH

main89943-24010i¥230202111

F SPORT DESIGN&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&GARAGE OPENER-WITHOUT

89944TAPE, RAIN SENSOR

main89944-42010i¥1,490202009-202110

BLIND SPOT MONITOR-WITH

main89944-42010i¥1,490202111

F SPORT DESIGN&POWER SEAT-WITH & WITHOUT(SEAT MEMORY)&GARAGE OPENER-WITHOUT

9011906864

9014860091

9413060600

17 parts on this diagram · 1 diagram in section
