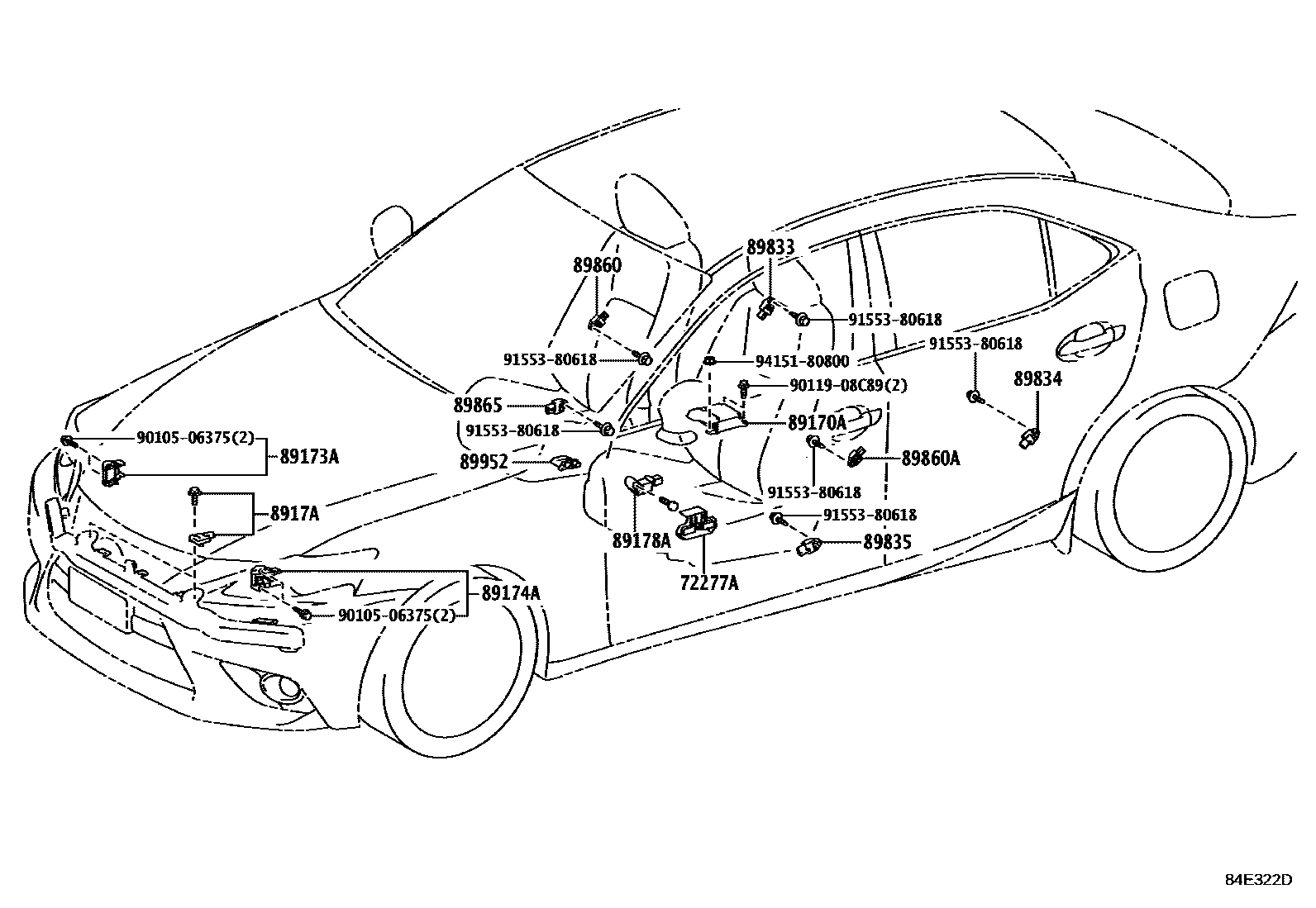

AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
89170ACOMPUTER ASSY, AIRBAG
KOREA SPEC&LUXURY PACKAGE&SRS AIR BAG-WITH(FRONT SEAT)
KOREA SPEC&SRS AIR BAG-WITH(FRONT SEAT)
KOREA SPEC&LUXURY PACKAGE
CANADA SPEC&SRS AIR BAG-WITH(FRONT SEAT)
KOREA SPEC&F SPORT&SRS AIR BAG-WITH(FRONT SEAT)
CANADA SPEC&SRS AIR BAG-WITH(FRONT SEAT)
KOREA SPEC&SRS AIRBAG-WITH(*DRP & KNEE & FRONT SIDE & *CUSA)&EMV & NAVIGATION SYSTEM-*DA(7 INCH) & WITHOUT(NAVIGATION)
KOREA SPEC&SRS AIRBAG-WITH(*DRP & KNEE & FRONT SIDE & *CUSA)&MAYDAY SYSTEM-WITHOUT
KOREA SPEC&SRS AIRBAG-WITH(*DRP & KNEE & FRONT SIDE & *CUSA)&EMV & NAVIGATION SYSTEM-EMV(7 INCH , KOREA SPEC)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89178ASENSOR, SEAT POSITION AIRBAG
8917ASENSOR, PEDESTRIAN PROTECTION
KOREA SPEC
89835SENSOR, DOOR SIDE AIRBAG, LH
KOREA SPEC
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89865SENSOR, DOOR SIDE AIRBAG, RH
KOREA SPEC
89952COMPUTER, OCCUPANT DETECTION
KOREA SPEC
9010506375
main90105-06375
9011908C89
main90119-08C89
9155380618
main91553-80618
9415180800
main94151-80800
17 parts on this diagram · 2 diagrams in section
