23220APUMP ASSY, FUEL W/FILTER

main23220-31480i201304-201508

main23220-38041i201304-201710

main23220-38090i202111-202209

23225ASPACER, FUEL PUMP

main23225-21020i201304-201508

main23225-23010i201304-201710

main23225-31010i201508-202110

main23225-38030i202111-202209

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-38020i201304-201710

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i201304-201710

NO.1:REFER ILLUST.

main90301-15024i201304-201710

NO.2:REFER ILLUST.

77010TUBE ASSY, FUEL TANK VENT

main77010-24010i202111

main77010-30010i201304-202110

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-24010i202111

main77016-30090i201304-202110

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-24010i202111-202209

main77024-30160i201304-201710

main77024-53060i202209

main77024-53090i201304-201508

main77024-53100i201508-202110

77100TANK ASSY, FUEL

main77001-24150i202111

main77001-30620i201304-202009

sub77001-24110

main77001-53110i202009-202110

77131CSUB-TANK, FUEL, NO.1

main77131-30063i201304-202110

77144RETAINER, FUEL PUMP GAUGE

main77144-30030i201304-202110

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040i201304-202110

77174SUPPORT, FUEL SUCTION, NO.1

main77174-24010i202111-202209

main77174-30040i201304-201710

main77174-48020i201304-201508

main77174-53020i201508-202110

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-30060i201304-202110

77197DCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010i201304-202009

77197ECLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010i201304-202110

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-53100i201304-202009

main77201-53140i202009-202110

77204ATUBE, FUEL TANK RETURN

main77204-30061i201304-201710

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-30161i201304-201710

main77209-30261i201304-201508

main77209-30340i201710-202110

main77209-53070i202111

main77209-53130i201508-202110

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-40005i201304-202009

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-30210i201304-202009

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-53010i201304-202009

main77216-53020i202009-202110

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-53020i201304-202009

main77217-53030i202009-202110

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-53050i201304-202009

main77226-53090i202009-202110

77229CCLAMP, BREATHER TUBE

main77229-30100i201304-202110

77229ECLAMP, BREATHER TUBE

main77229-30090i201304-202009

NO.1:REFER ILLUST.

main77229-30090i202009-202110

main77229-33060i201304-202009

NO.2:REFER ILLUST.

77241WCLIP, TUBE JOINT

main77241-33011i201304-202103

main77241-60550i202104-202110

77266APROTECTOR, FUEL TUBE, NO.1

main77266-30100i202111

main77266-53020i201304-202009

F SPORT

main77266-53020i201304-202009

LUXURY PACKAGE

main77266-53020i201304-201508

THE CRAFTED LINE

main77266-53020i202009-202110

FLOOR UNDER COVER-WITH(FULL COVER)

77284CLAMP, FUEL TUBE

main77289-30120i201304-202110

77285KCLAMP, FUEL TUBE, NO.1

main77285-30350i201304-202110

77285LCLAMP, FUEL TUBE, NO.1

main77285-30310i201304-202110

77286MCLAMP, FUEL TUBE, NO.6

main77286-30210i202111

main77286-30250i201304-202009

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110i201304-202110

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090i201304-202110

77295CGROMMET, FUEL TUBE

main77295-60320i201304-202110

77299ACLAMP, FUEL TUBE, NO.5

main77299-30090i201304-202110

77310ACAP ASSY, FUEL TANK

main77300-53020i201304-202009

main77300-53030i202009-202110

77316GASKET, FUEL TANK CAP

main77316-52040i201304-202009

main77316-75020i202009-202110

77511BBRACKET, FUEL TANK

main77511-48030i201304-202110

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-53040i201304-201503

sub77601-53041

main77601-53041i201504-202110

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-30210i202009-202110

main77606-53050i201304-202009

77608CCUSHION SET, FUEL TANK

main77608-48010i201304-202110

77641APROTECTOR, FUEL TANK, NO.1

main77641-30160i201304-202110

77642APROTECTOR, FUEL TANK, NO.2

main77642-30040i201304-202110

77643APROTECTOR, FUEL TANK, NO.3

main77643-30030i201304-202110

77644BOLT, FUEL TANK

main77644-48010i201304-202110

77652CUSHION, FUEL TANK, NO.1

main77652-30090i201304-202110

77655BCUSHION, FUEL TANK

main77655-30080i201304-202110

77655CCUSHION, FUEL TANK

main77655-48010i201304-202110

77656BCUSHION, FUEL TANK, NO.6

main77656-30030i201304-202110

77681ASEAT, FUEL TANK BAND

main77681-30030i201304-202110

77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

main77707-53020i201304-201508

main77707-53030i201508-202009

main77707-53040i202009-202110

77740CANISTER ASSY, CHARCOAL

main77740-24130i202111

main77740-30350i201304-202009

main77740-53030i201508-202009

main77740-53040i202009-202110

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main77404-53060i201304-202009

main77404-53070i202009-202110

77740RPUMP SUB-ASSY, LEAK DETECTION

main90910-14005i201304-201505

sub90910-14008

main90910-14008i201506-202110

77751BRACKET, CHARCOAL CANISTER BASE

main77751-30160i201304-202009

77759HOSE, CHARCOAL CANISTER

main77759-30030i201304-202009

main77759-53010i201508-202009

77785HARNESS, FUEL PUMP

main77785-30010i201304-201508

main77785-48060i201508-202110

main77785-53010i201304-201710

sub77785-53011

8401

9011910971

main90119-10971

9017906169

main90179-06169

9017906219

main90179-06219

9017908189

main90179-08189

9030108020

main90301-08020

9030111025

main90301-11025

9046037003

main90460-37003

9046715012

main90467-15012

91626B0614

main91626-B0614

91671A0820

main91671-A0820

9613251300

main96132-51300

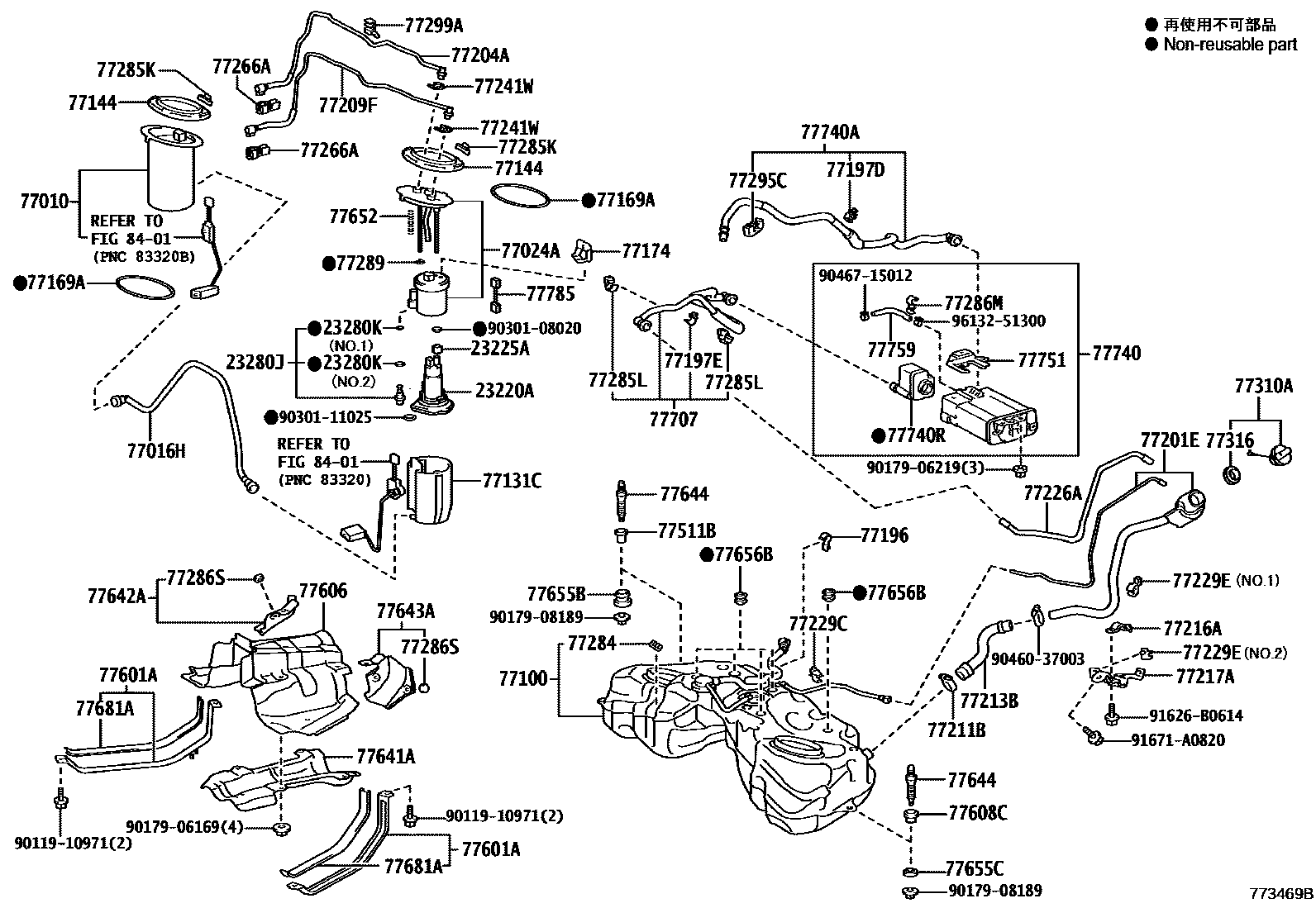

FUEL TANK & TUBE
